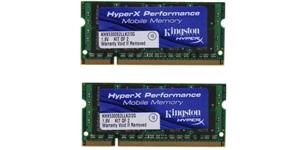

Kingston 4GB (2 x 2GB) PC2-5300 667MHz DDR2 SODIMM RAM - 4-4-4-12 - HyperX Series

IMG 1 of 1
No Longer Available
Part Number:
85029
(?) Brand:
Kingston Web Site
Manuf No:
KHX5300S2LLK2/4G
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
Need assistance in selecting the correct RAM for your system?
Please use our Memory Configurators to ensure compatibility
All stock codes associated to this product
KHX5300S2LLK2/4G, XKHX5300S2LLK24G
Kingston's KHX5300S2LLK2/4G is a kit of two 256M x 64-bit (2GB) CL4 low latency SDRAM (Synchronous DRAM) 2Rx8 memory modules. Each module is based on sixteen 128M x 8-bit DDR2 FBGA components. Total kit capacity is 4GB. The SPDs are programmed to JEDEC low latency timing of 4-4-4-12
at 1.8V. Each 200-pin SODIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:

Features:
  • Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V
  • Double-data-rate architecture; two data transfers per
    clock cycle
  • Bidirectional data strobe(DQS)
  • Differential clock inputs(CK and CK)
  • DLL aligns DQ and DQS transition with CK transition
  • Programmable Read latency 5, 4, 3 (clock)
  • Burst Length: 4, 8 (Interleave/nibble sequential)
  • Programmable Burst type (sequential & interleave)
  • Timing Reference: 4-4-4-12 at +1.8V
  • Edge aligned data output, center aligned data input
  • Auto & Self refresh, 7.8us refresh interval (8K/64ms
    refresh)
  • Serial presence detect with EEPROM
  • PCB : Height 1.180” (30.00mm), double sided
    component
Specifications:
  • Clock Cycle Time (tCK) 3ns (min.) / 8ns (max.)
  • Row Cycle Time (tRCmin) 60ns (min.)
  • Refresh to Active/Refresh 127.5ns (min.)
  • Command Time (tRFCmin)
  • Row Active Time (tRASmin) 36ns (min.) / 70,000 (max.)
  • Single Power Supply of +1.8V (+/- .1V)
  • Power (Operating) TBD* (per module)
  • UL Rating 94 V - 0
  • Operating Temperature 0o C to 55o C
  • Storage Temperature -55o C to +125o C

Specification Sheets / Installation guides / Associated files

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
