Motherboards -> Intel Socket 775 -> ASUS

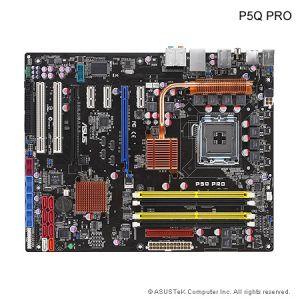

ASUS P5Q Pro Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire, ATX
Cart
Quantity:
Add ASUS P5Q Pro Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire, ATX to your wishlist
Click here to write a review on ASUS P5Q Pro Motherboard
LGA775, P45, 1600FSB, 4x DDR2-1200, 2x PCI-Ex16 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire, ATX

Large image is available
Product May Vary From Image

Our Price:
$251.35
RRP:$279.00
You Save:$27.65

Techbuy Part No:85499
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:P5Q-PRO
 P5QPRO
Shipping Weight:2 KG How Much?
Date Added:4/6/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

P5Q PRO
The best computing platform for any purpose!
  • Intel LGA775 Platform
  • Intel P45 chipset
  • ASUS 8-phase Power Design
  • Dual-channel DDR2 1200/800/667 MHz
  • 100% Japan-made high-quality Conductive Polymer Capacitors
  • ASUS EPU-6 Engine
  • ASUS Express Gate
  • ASUS Drive Xpert

The P5Q PRO is an Intel P45 chipset-based motherboard that combines powerful performance with great energy efficiency; and supports DDR2 1200MHz dual-channel memory architecture and two PCI Express 2.0 x16 lane for extreme graphics performance. It also comes with the worlds best ASUS EPU -6 Engine, allowing the CPU power supply to be digitally monitored and fine-tuned with improved VRM efficiency in heavy or light loadings attaining the best possible power efficiency and energy savings to help save the environment. The P5Q PRO also supports ASUS Express Gate an Linux OS bootup for instant access to the Internet in 5 seconds.
CPU, Chipset and Graphics features
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1600/1333/1066/800MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
PCIe 2.0
ATIs CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFireX system.
ATI CrossFireX Technology
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

Memory Features
Dual-Channel DDR2 1200
The motherboard supports DDR2 memory that features data transfer rates of 1200/1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2GB/s.
ASUS Power Saving Solution

ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money
AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
ASUS Exclusive Features

ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.

* The actual boot time is subject to hardware configurations and product models
ASUS 8 Phase Power Design
Longer Life, & Higher Efficiency!
With power efficiency so important to operating temperatures, ASUS 8-phase VRM design leads the industry with its 96% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss & lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy efficiency.
100% High-quality Japan-made Conductive Polymer Capacitors!
This motherboard uses all high-quality Japan-made conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
ASUS EZ DIY
Drive Xpert
Plug & Safe!
Without drivers or BIOS setups, the ASUS exclusive Drive Xpert is ideal for anyone who needs to secure data on their hard drives or enhance hard drive performances without the hassles of complicated configurations. With Drive Xperts user-friendly graphical user interface, users can easily arrange hard drive backups or enhance their hard drive transfer rates - making sure that data is looked after every moment, every day.
Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading. Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Q-Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).
AI Direct Link
Lightning Fast Data Linkage between Your PC & Laptop
AI Direct Link can easily and efficiently transfer large amounts of data via the network cable - saving up to 70% of the total time taken. With AI Direct Link, it becomes easy to backup or share large data files like movies or other media content.
Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

  CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
Precision Tweaker 2
Super-fine Adjustments to Help Create a Brand New O.C. Record!
Allows the user to adjust the NB Voltage, FSB termination Voltage, CPU PLL Voltage and the DRAM Voltage in 0.02v steps to finetune voltages to achieve the most precise setting for the ultimate customized overclocking configuration.


ASUS Crystal Sound
Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
Other Innovative Features
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
Industry Standard

IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.


S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.


RoHS

GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
LGA775 socket for Intel Core2 Extreme/Core2 Quad/ Core2 Duo/Pentium dual-core/Celeron dual-core /Celeron Processors
Compatible with Intel 05B/05A/06 processors
Supports Intel 45nm multi-Core CPU
Chipset
Intel P45 / ICH10R with Intel Fast Memory Access (FMA) support
Front Side Bus
1600 / 1333 / 1066 / 800 MHz
Memory
4 x DIMM, max. 16GB, DDR2 1200 / 1066 / 800 / 667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lists).
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCI Express 2.0 x16 slots, support ATI CrossFireX technology at x8 link
(PCIe x16_1 blue, PCIe x16_2 black*)
3 x PCI Express x1 slots
2 x PCI slots
*PCI Express x16_2 slot (black at max. x8 link)
Storage
Southbridge
- 6x SATA 3Gb/s
- Intel Matrix Storage Technology with RAID 0, 1, 5 10 support
Marvell 88SE6111
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
Silicon Image Sil5723 (Drive Xpert technology)
- 2 x SATA 3Gb/s
- Supports EZ Backup and Super Speed functions
*It is recommended to use Drive Xpert as data drive only.
LAN
PCIe Gb LAN controller featuring AI NET2
Audio
Realtek ALC1200, 8-channel High Definition Audio CODEC
- Support Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial S/PDIF_OUT ports at back I/O
- ASUS Noise-Filtering
IEEE 1394
LSIL-FW3227 controller supports 2 x IEEE 1394a ports (one at mid-board; one at back panel)
USB
Max. 12 USB2.0/1.1 ports(6 ports at mid-board, 6 ports at back panel)
ASUS AI Lifestyle Features
ASUS Power Saving Solution
- ASUS EPU 6-Engine
- ASUS 8-phase Power Design
- AI Nap
ASUS unique Features:
- ASUS Express Gate
- AI Direct Link
ASUS Quiet Thermal Solutions:
- ASUS Fanless Design: heat pipe solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS Drive Xpert
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
ASUS AI Booster
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 64-step DRAM voltage control
- vChipset: 55-step Chipset voltage control
- vCPU PLL: 64-step CPU PLL voltage control
- vFSB Termination: 15-step reference voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Mylogo2

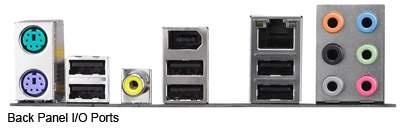

Back Panel I/O Ports
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Coaxial S/PDIF Output
1 x IEEE1394a
1 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x TPM connector
1 x COM connector
6 x SATA connectors (red)
2 x Drive Xpert SATA connectors (orange and white)
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
8 pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
8 Mb AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.4, ACPI 3.0
Manageability
WOL by PME, WOR by PME, WOR by Ring, Chassis Intrusion, PXE
Accessories
1 x UltraDMA 133/100/66 cable
1 x FDD cable
4 x Serial ATA cables
1 x 2-port Serial ATA power cable
1 x e SATA / 1394 bracket
3 in 1 Q-connector
ASUS Q-Shield
User's manual
Support Disc
Drivers
Express Gate
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-Virus software (OEM version)
Image-Editing Suite
Form Factor
ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.



Product Warranty


1 Year Return to Base
