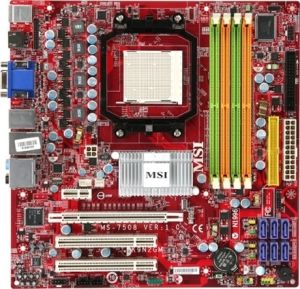

MSI K9N2GM-FD Motherboard
AM2+, GeForce 8200, HT 5200, 4x DDR2-800, PCI-Ex16 v2.0, 6x SATA-II, RAID, GigLAN, 8Chl, VGA+DVI, mATX

CPU

Support socket AM2 for AMD  Athlon 64/Athlon 64X2 CPU. (Optional)
Support socket AM2+ for AMD  Phenom CPU. (Optional)
Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport 3.0 supporting speed up to 2600MHz
- AM2 CPU supports HyperTransport 1.0/2.0 (Optional)
- AM2+ CPU supports HyperTransport 3.0 (Optional)

Chipset

NVIDIA GeForce 8200 (MCP78S) Series single chipset

Main Memory

Supports Dual DDR2 667/800
-4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

1 PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant)
1 PCI Express x1 slot
2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by NVIDIA GeForce 8200 Series
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

6 SATA II (1~6) ports by NVIDIA GeForce 8200 Series
- Supports storage and data transfers at up to 3Gb/s


RAID Function

- SATA II 1~6 support RAID 0, 1, 0+1, 5 or JBODmode by NVIDIA GeForce 8200 Series

Audio

Chipset integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

Realtek PCI-E GbLAN controller 8211BL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x1 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
-1 x Serialport connector
-2 x USB 2.0 connector support additional4 ports
- 1 x Floppy disk drive connector
-6 x Serial ATA II connectors
- 1 x ATA133IDE connector
- Clear CMOS jumper
- 1 x SPDIF-out header
- 1 x TPM module header (optional)

K9N2GM-FD

Back Panel I/O Ports

- 1 x DVI-D port (optional)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
-  1 x 6 in 1 audio jack

Dimension

24.4cm(L) x 24.4cm(W) M-ATX Form Factor

Mounting

8 mounting holes.
