Part Number:
86568
(?) Brand:
Manuf No:
WD5000ABPS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
WD5000ABPS, HDDWD5000ABPS, HDD-WD5000ABPS

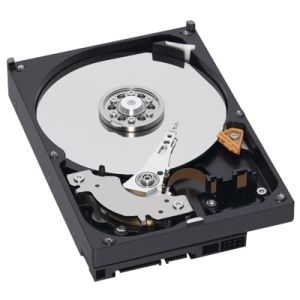

WD RE2-GP
SATA Hard Drives
500 GB, 16 MB Cache, Power-saving

Good for the environment and your bottom line.

WD RE2-GP drives offer data-hungry organizations significant power savings and lower cost of ownership compared to competitors' standard enterprise-class drives.


As demand for storage continues to expand, the need for more efficient power solutions becomes paramount. WD RE2-GP makes it possible for large scale data centers to increase storage capacity without exceeding available power, and in many cases actually reduce power consumption. WD RE2-GP drives help combat the four major challenges large data installations facetotal drive slots, maximum capacity, power allotment, and available operations expense budget while lowering the overall total cost of ownership.

Key Features
Reduced power consumption - The combination of WD's IntelliSeek, IntelliPark, and IntelliPower technologies bring optimized performance at industry leading low power consumption; power is reduced as much as 40%.

Helps enable eco-friendly servers - Each WD RE2-GP drive consumes an average of 4-5 watts less than competitor drives making it possible for energy-conscious customers to build servers with higher capacities, ensured reliability, and promote energy conservation.

Lower total cost of ownership - Large data-hungry organizations such as financial institutions and web service providers may realize up to $10 savings per drive per year in electricity costs (U.S). A large data center with 10,000 drives could realize up to $100,000 in saving per year.

IntelliPower - A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, GreenPower drives consume less current during start up allowing more drives to spin up simultaneously resulting in faster system readiness.

IntelliSeek - Calculates optimum seek speeds to lower unnecessary power consumption, noise, and vibration. View demo >

IntelliPark - Delivers lower power consumption by automatically unloading recording heads during idle to reduce aerodynamic drag, and by disengaging read/write channel electronics.

Active Power Management - WD GreenPower drives monitor work load and automatically invoke idle mode whenever possible to further reduce unnecessary power consumption. Drive recovery time from idle mode is less than one second, providing seamless power management between the drive and the host controller.

Perpendicular Magnetic Recording (PMR) - Employs PMR technology to achieve even greater areal density.

StableTrac - Secures the motor shaft at both ends to reduce system-induced vibration and stabilize platters for accurate tracking, during read and write operations. (750 GB and 1 TB only)

RAID-specific time-limited error recovery (TLER) - Pioneered by WD, this feature prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

Ideal For

Large data centers, web service providers, commercial grade surveillance systems and organizations requiring huge amounts of storage with limited budget and power allotment.





Important interface information

This drive requires a SATA interface

Performance Specifications
Rotational Speed IntelliPower *
Buffer Size 16 MB
  * A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, GreenPower drives consume less current during start up allowing more drives to spin up simultaneously resulting in faster system readiness.
Seek Times
Read Seek Time 8.9 ms
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Transfer Rate (Buffer To Disk) 84 MB/s (Sustained)
Physical Specifications
Formatted Capacity 500,107 MB
Capacity 500 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 976,773,168
Physical Dimensions
English
Height 1.028 Inches (Max)
Length 5.787 Inches (Max)
Width 4.00 Inches (+/- 0.010 inch)
Weight 1.39 Pounds
Metric
Height 26.1 mm (Max)
Length 147 mm (Max)
Width 101.6 mm
Weight 0.63 kg
Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 250G, 2 ms
Acoustics
Idle Mode 24 dBA (average)
Seek Mode 0 29 dBA (average)
Seek Mode 3 25 dBA (average)
Vibration
Operating
Linear 20-300 Hz, 0.75 G (0 to peak)
Random 0.004 g/Hz (10 to 300 Hz)
Electrical Specifications
Current Requirements
12 VDC
Read/Write 220 mA
Idle 180 mA
Standby 6 mA
Sleep 6 mA
5 VDC
Read/Write 700 mA
Idle 220 mA
Standby 180 mA
Sleep 180 mA
Power Dissipation
Read/Write 6.00 Watts
Idle 3.3 Watts
Standby 0.97 Watts
Sleep 0.97 Watts

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
