Product DetailsGo BackEmail to FriendPrint
Motherboards -> Intel Socket 775 -> DFI

DFI LanParty DK P45-T2RS Motherboard
LGA775, P45, 1333FSB, 4x DDR2-1066, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, ATX
Cart
Quantity:
Add DFI LanParty DK P45-T2RS Motherboard
LGA775, P45, 1333FSB, 4x DDR2-1066, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, ATX to your wishlist
Click here to write a review on DFI LanParty DK P45-T2RS Motherboard
LGA775, P45, 1333FSB, 4x DDR2-1066, 2x PCI-Ex16, 6x SATA-II, RAID, GigLAN, 8Chl, ATX

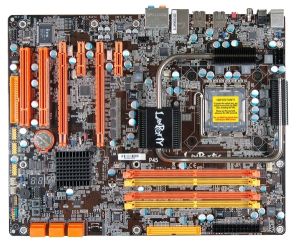

Large image is available
Product May Vary From Image

Our Price:
$206.85

Techbuy Part No:86820
Usually Ships: Order In Details
Brand:DFI Web Site
Manuf No:bc/LP-DK-P45-T2RS
 bc/LPDKP45T2RS
Shipping Weight:2 KG How Much?
Date Added:16/7/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

LANPARTY DK P45-T2RS
Features

 CPU

  • LGA 775 socket for: - Intel Core2 Quad and Intel Core2 Duo
  • Supports Intel Enhanced Memory 64 Technology (EMT64T)
  • Supports Enhanced Intel SpeedStep Technology (EIST)
  • Supports Intel Hyper-Threading Technology
  • Supports 1333/1066/800MHz FSB
    •
     Chipset

  • Intel chipset - Northbridge: Intel P45 Express chipset Intel Fast Memory Access technology - Southbridge: Intel ICH10R
    •
     System Memory

  • Four 240-pin DDR2 DIMM sockets
  • Supports DDR2 1066MHz (O.C 1200MHz)
  • Delivers up to 12.8Gb/s bandwidth
  • Supports dual channel (128-bit wide) memory interface
  • Supports up to 8GB system memory
  • Supports unbuffered x8 and x16 DIMMs
    •
     Expansion Slots

  • 2 PCI Express (Gen 2) x16 slots - 2-way CrossFire: One slot operating at x16 (16-lane port) or two slots each operating at x8 (8-lane ports) bandwidth
  • 2 PCI Express x1 slots
  • 2 PCI slots
    •
     BIOS

  • Award BIOS
  • 8Mbit SPI flash BIOS
  • CMOS Reloaded
    •
     Audio

  • Realtek ALC885 High Definition audio CODEC
  • 8-channel audio output
  • DAC SNR/ADC SNR of 106dB/101dB
  • Full-rate lossless content protection technology
  • Optical S/PDIF-out and coaxial RCA S/PDIF-out interfaces
    •
     LAN

  • Marvell 88E8053 PCIE Gigabit LAN controller
  • Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
    •
     Serial ATA with RAID

  • Intel Matrix Storage technology
  • Supports up to 6 SATA devices
  • SATA speed up to 3Gb/s
  • RAID 0, RAID 1, RAID 0+1 and RAID 5
    •
     IDE

  • JMicron JMB368 PCI Express to PATA host controller
  • Supports up to 2 UltraDMA 33/66/100Mbps IDE devices
    •
     Rear Panel I/O

  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 1 optical S/PDIF-out port
  • 1 coaxial RCA S/PDIF-out port
  • 6 USB 2.0/1.1 ports
  • 1 RJ45 LAN port
  • Center/subwoofer, rear R/L and side R/L jacks
  • Line-in, line-out (front R/L) and mic-in jacks
    •
     Internal I/O

  • 3 connectors for 6 additional external USB 2.0 ports
  • 1 connector for an external COM port
  • 1 front audio connector
  • 1 CD-in connector
  • 1 IrDA connector
  • 6 Serial ATA connectors
  • 1 40-pin IDE connector
  • 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin 12V power connector
  • 2 4-pin 5V/12V power connectors (FDD type)
  • 1 front panel connector
  • 4 fan connectors
  • 1 download flash BIOS connector
  • 1 diagnostic LED
  • EZ touch switches (power switch and reset switch)
    •
     Power Management

  • Ultimate 4-phase digital PWM with 12 MOSFETs
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN
  • Wake-On-Ring
  • RTC timer to power-on the system
  • AC power failure recovery
    •
     Hardware Monitor

  • Monitors CPU/system/Northbridge temperature and overheat alarm
  • Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat
    •
     PCB

  • 4 layers, ATX form factor
  • 24.5cm (9.64") x 30.5cm (12") All specifications above are subject to change without prior notice.
    •


    Product Warranty


    1 Year Return to Base
