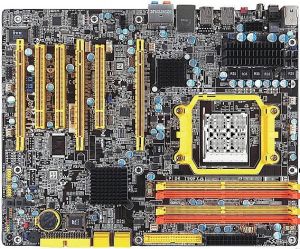

DFI LanParty DK 790FX-M2RS Motherboard
AM2, 790FX, 4x DDR2-800/1066, 3x PCI-Ex16 v2.0, 4x SATA-II, RAID, GigLAN, 8Chl, ATX



AMD Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64



Socket 940 AM2 65nm



HyperTransport 3.0 and 1.0



AMD chipset
  - Northbridge: AMD 790FX
  - Southbridge: AMD SB600





Four 240-pin DDR2 DIMM sockets


Supports DDR2 800MHz (Phenom supports 1066MHz)


Supports dual channel (128-bit wide) memory interface


Supports up to 8GB system memory


Supports unbuffered non-ECC x8 and x16 DIMMs



3 PCI Express (Gen 2) x16 slots
  - 2-way or 4-way CrossFire at x16/x16/NC bandwidth
  - 3-way CrossFire at x16/x16/x4 bandwidth
  - 2-way CrossFire + Physics at x16/x16 bandwidth


3 PCI slots



Award BIOS


CMOS Reloaded



CPU/DRAM overclocking



CPU/DRAM/Chipset overvoltage



8Mbit flash memory



Realtek ALC885 8-channel HD Audio Codec




High-performance DACs with 106dB dynamic range (A-Weight), ADCs with 101dB dynamic range (A-Weight)



Marvell 88E8053 PCIE Gigabit LAN controller




Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards



Monitors CPU/system/chipset temperature



Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages



Monitors the speed of the cooling fans




CPU Overheat Protection function monitors CPU temperature during system boot-up



One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives



Supports up to 4 SATA devices



SATA speed up to 3Gb/s



RAID 0, RAID 1 and RAID 0+1



1 mini-DIN-6 PS/2 mouse port



1 mini-DIN-6 PS/2 keyboard port




1 optical S/PDIF-out port




1 coaxial RCA S/PDIF-out port




6 USB 2.0/1.1 ports




1 RJ45 LAN port




Center/subwoofer, rear R/L and side R/L jacks




Line-in, line-out (front R/L) and mic-in jacks



2 connectors for 4 additional external USB 2.0 ports



1 connector for an external COM port



1 front audio connector



1 CD-in connector



1 IrDA connector



1 CIR connector



4 Serial ATA connectors



1 40-pin IDE connector



1 floppy connector



1 24-pin ATX power connector



1 8-pin 12V power connector



2 4-pin 5V/12V power connectors (FDD type)



1 front panel connector



6 fan connectors



EZ touch switches (power switch and reset switch)



ATX form factor




24.5cm (9.64") x 30.5cm (12")
All specifications above are subject to change without prior notice.





6-Phase Vcore + 1-Phase NB Digital PWM




ACPI and OS Directed Power Management




ACPI STR (Suspend to RAM) function




Wake-On-PS/2 Keyboard/Mouse




Wake-On-USB Keyboard/Mouse




Wake-On-Ring




Wake-On-LAN




RTC timer to power-on the system




AC power failure recovery
