Top-performance Pedestal UP Server with 45nm Processor |
| |
Ready |

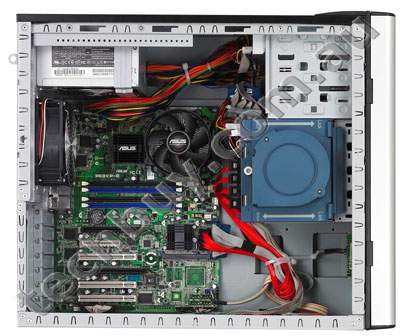

TS300-E5/PA4 is a single-socket pedestal server system based on Intel 3210MCH chipset, which provides immediate performance scale up and high processing speed in the UP tower server. With 4 DIMM slots, the server supports DDR2 800/667 Un-buffered ECC/Non-ECC up to 8GB memory capacity.
Support Latest 45nm Multi-Core Processor Technology
 Offer the best performance per Watt
Higher frequency and great energy efficiency
Quad-LAN Teaming Technology Provides 200% Faster Transfer Rate
Four enterprise-class PCI-Express Gb LAN provide 200% faster than dual LAN platform
Teaming & Failover function enables higher bandwidth aggregation and reliable network connection
Multiple network segments help enhance network security and improve communication efficiency
 |
|
IxChariot Benchmark based on 100% Sequential Write/Send
(64K Data Transfer Buffer Size)
|
Superb Storage Expandability and High Availability
Four hot-swappable HDD bays offer mass storage capacity and high system availability
Support RAID 0, 1, 10 for major Linux distributions and RAID 0, 1, 5, 10 for Windows OS
Flexible Expansion Choices
Provide three 32-bit/33MHz (5V) PCI slots for legacy device support
Provide two PCI-E x 16 (x8 link) and one PCI-E x8 (x1 link) for high bandwidth
One SO-DIMM socket for optional ASUS ASMB3-SOL card for remote management and monitoring
User-friendly Server Management
Bundled ASWM2.0 system software makes system management easy. With effective management and monitoring via intelligent interaction & image; the customer may have a clear view regarding CPU, memory, HDD, fan speed, OS, FRU, NIC status
KEY SPECIFICATIONS
|
Processor Support
|
Quad-Core Intel Xeon processor 3300 series (45nm)
Dual-Core Intel Xeon processor 3100 series (45nm)
Dual-Core Intel Xeon 3000 series
Quad-Core Intel Xeon 3200 series (G0 stepping)
|
|
FSB
|
FSB 1333/1066/800MHz
|
|
Core Logic
|
Intel 3210 MCH + Intel ICH7R
|
|
Memory
|
4-DIMM Support up to 8GB DDR2 800/667 un-buffered, ECC
|
|
Storage
|
4 x Hot-Swap SATA2 HDD Bays
1 x 5.25 Optical Device (Optional)
1 x FDD
|
|
RAID Support
|
Max. 4 x SATA HDD with SW RAID 0, 1, 5 (Windows) SW RAID 0,1, 10 supported (Linux)
|
|
NIC
|
4 * Broadcom BCM5721 PCI-E GbE LAN
|
|
Onboard Gfx
|
XGI Z9s VGA Controller / 32MB
|
|
Expansion Slot
|
2 * PCI-E x16 slot (x 8 link)
1 * PCI-E x8 (x1 link)
3 * PCI 32-bit/33MHz slot (5V)
|
|
Power Supply
|
450W Single Power Supply
|
|
Dimension
|
431mm x 220mm x 510mm
|
|
Net Weight
|
18Kg (CPU, Memory & HDD are not included)
|
|
