ASUS Barebone RackMount Server - 1U (RS100-X5/PI2)
  • Single LGA775 Core2Duo or Xeon 3xxx, 2xDDR2-800, DVD-RW, 2xHS SATA-II HDD Bays, 2xGigLAN, VGA
  • 2xPCI-Ex16

IMG 1 of 1
No Longer Available
Part Number:
87329
(?) Brand:
ASUS Web Site
Manuf No:
RS100-X5/PI2-DRW
RS100X5/PI2DRW
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
RS100X5/PI2DRW, RS100-X5/PI2-DRW

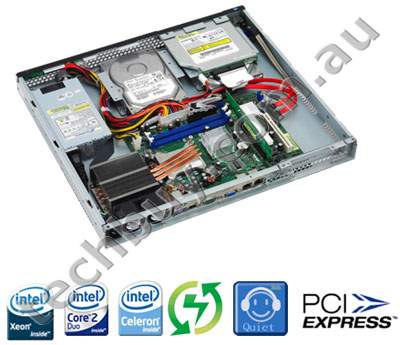

Super Quiet & Power Saving 1U Compact Server

RS100-X5/PI2 is a super quiet and space-saving uni-processor (UP) server featuring with low power consumption. It's dedicated for home users, SMB, SOHO, IDC, TELCOM and client system requiring quiet working environment.

Excellent Acoustic Control Solution
Excellent in acoustic control under 30dB in operating mode
The copper pipes work perfectly in heat dissipation, avoiding noise from CPU fans

Economic Power Saving Solution
RS100-X5/PI2 consumes only 82.5 Watt (110V) in idle mode and 89 Watt (110V) while in full loading
In a rack with power current limitation, more servers can be accommodated if their power consumption is less

Slim Size Provides Flexible Rack Selections
With depth of only 380mm, a rack can accommodate more RS100-X5/PI2
Users of RS100-X5/PI2 have the chance to choose smaller racks

Wide Ranges of Processor Support
Supports a wide range of processors: Dual-Core Intel Xeon 3000 series, Conroe-L 400 series & Intel Core 2 Duo Processor
Users are able to choose latest processor for high computing capability or others for low cost of ownership in day-to-day computing

Integrated High-Performance Graphic Controller
Integrated a high performance graphic controller for power users to meet their demand in graphic processing



KEY SPECIFICATIONS

Processor Support

Dual-Core Intel Xeon 3000 series (65W)*
Dual-Core Intel Core2 Duo (65W)*
Intel Intel Conroe-L 400 series

FSB

FSB 1066/800/533

Core Logic

Intel945GC , Intel ICH7

Memory Support

2-DIMM support up to 2GB DDR2 667/533 un-buffered, Non-ECC

Storage

2 x Internal SATA2 HDD Bays
1 x slim-type Optical Device (Optional)

NIC

2 x Marvel 8056 GbE LAN Controllers

Onboard Gfx

Intel Graphics Media Accelerator 950

Expansion Slot

Total: 1
1 x PCI-E x16 slot (x1 Link)** (Full-Height / Half-Length)

Power Supply

180W Single Power Supply

Dimension

380mm x 430mm x 43.4mm (1U)


- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.



Specifications
Processor / System Bus
1 * Socket 775
Dual-Core Intel Xeon 3000 series (65W)*
Dual-Core Intel Core2Duo (65W)*
Intel Intel Conroe-L 400 series
Dual-Core
FSB 1066/800/533
Core Logic
Intel 945GC
Intel ICH7
ASUS Features
Smart Fan I
ASWM2.0
Memory
Total Slots: 2 (2-channel)
Capacity: Maximum up to 2GB
Memory Type: DDR2 667/533 Non-ECC Unbuffered DIMM
Memory Size: 512MB, 1GB
Expansion Slots
Total PCI/PCI-X/PCI-E Slots: 1
Slot Type: 1 * PCI-E x16 slot (x1 Link)** (Full-Height / Half-Length)
Storage
SATA Controller:
Intel ICH7:
2 * SATA2 300MB/s ports
HDD Bays
2 * Internal SATA2 HDDs Bays
Networking
LAN: 2 * Marvel 8056 GbE LAN controller
Graphic
VGA: Intel Graphics Media Accelerator 950
Auxiliary Storage
1 * Slim-type Optical Device Bay
Options: No Device / DVD-ROM / DVD-RW
On Board I/O
1 * External Serial Port
2 * RJ-45 ports
4 * USB 2.0 ports (Front * 2, Rear * 2)
1 * VGA port
1 * PS/2 keyboard port
1 * PS/2 mouse port
OS Support
Windows Server 2003 R2 Standard 32/64-bit
RedHat Enterprise Linux AS4.0 32/64-bit
SuSE Linux Enterprise Server 10 32/64-bit
(Subject to change without any notice)
Anti-virus Software
Optional CA eTrust 7.1 anti-virus software
Management Solution
Software: ASWM2.0
Safety
US / Canada ( UL1950-CSA950)
Europe (CE, EN55022 compliance to EU Directive 89 / 366/ EEC)
Europe (TUV)
EMI
US (FCC, CFR47 Part 15) (Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Dimensions without Packing
380mm * 430mm * 43.4mm
Net Weight Kg (CPU, DRAM and HDD not included)
6.2Kg
Power Supply
180W Single Power Supply
Environment
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)

- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
