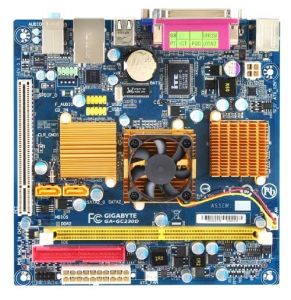

Gigabyte GA-GC230D Atom Motherboard
  • 945GC, 1x DDR2-533, 1x PCI, 2x SATA-II, LAN, 6Chl, VGA, Mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
88048
(?) Brand:
Gigabyte Web Site
Manuf No:
GA-GC230D
GAGC230D
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GAGC230D, GA-GC230D
GA-GC230D(Atom) (rev. 1.0)
Intel  945GC+ ICH7 chipset
  1. Supports 45nm Intel Atom 230 Processor
  2. Integrated Intel Graphics Media Accelerator 950 (Intel GMA 950)
  3. All solid capacitors design
  4. Integrated High Definition audio
  5. High speed 10/100 LAN connectivity
  6. Integrated SATA 3Gb/s interface
  7. Mini size for flexible use


Overview

    Introduction
GIGABYTE GA-GC230D integrated the latest Intel 45nm Atom 230 processor provides an easy-to-use flexibility and cost effective platform. The new architecture of Atom 230 enable the lowest power consumption and smallest form factor for thin client and fundamental use. Enhanced with all solid capacitors design, GA-GC230D brings small yet powerful and stable platform.
  The Industry's Leading All-Solid Capacitor motherboard Design
The Industry's Leading All-Solid Capacitor motherboard Design To ensure a longer for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-quality components , users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability
  Intel  945GC Express Chipset
The Intel  945GC Express Chipset with Intel Graphics Media Accelerator 950 graphics core delivers outstanding system performance through high-bandwidth interfaces such as dual-channel DDR2 memory, 533/400 MHz system bus, PCI Express x16 graphics port, Serial ATA 3.0 Gb/s and Hi-Speed USB 2.0 connectivity management.
  Intel  Graphic Media Accelerator 950
The Intel  Graphics Media Accelerator 950 combines faster graphics processing and increased memory bandwidth to deliver richer visual quality and colors without the need for additional discrete graphics cards.
  Serial ATA 3.0 Gb/s
The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system.
  RoHS compliant
As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products.. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.


Specifications
CPU
  1. Built in with an Intel  Atom 230 CPU (1.6GHz)
  2. 512K L2 cache
Front Side Bus
  1. 533 MHz FSB
Chipset
  1. North Bridge: Intel  945GC Express Chipset
  2. South Bridge: Intel  ICH7
Memory
  1. 1 x 1.8V DDR2 DIMM socket supporting up to 2 GB of system memory
  2. Support for DDR2 533/400 MHz memory module
    (Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics
  1. Integrated in the North Bridge
Audio
  1. Realtek ALC662 codec
  2. High Definition Audio
  3. 2/4/5.1-channel
LAN
  1. Realtek 8101E chip (10/100 Mbit)
Expansion Slots
  1. 1 x PCI slot
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
USB
  1. Integrated in the South Bridge
  2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 20-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x IDE connector
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 2 x USB 2.0/1.1 headers
  10. 1 x chassis intrusion header
  11. 1 x power LED header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x parallel port
  4. 1 x serial port
  5. 1 x D-Sub port
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring
  1. System voltage detection
  2. CPU temperature detection
  3. CPU/North Bridge/System fan speed detection
  4. CPU fan speed control
BIOS
  1. 1 x 4 Mbit flash
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows  XP
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.


* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
