 The GS1000 is designed for optimal airflow on both intake and exhaust. |
| |
 |
| Vented front HDD door allows cool air to enter helps cool the drivers. |
| |
 |
The ventilated floor panel helps cool the PSU and other components. The optional 120mm fan ports will allow additional fans to
further enhance cooling performance. |
| |
 |
The top vent coupled with a 120mm fan are very effective in exhausting hot air. The optional 120mm fan ports will allow
additional fans to further enhance cooling performance. |
| |
 |
| Tool Free design allows for easy installation. |
 |

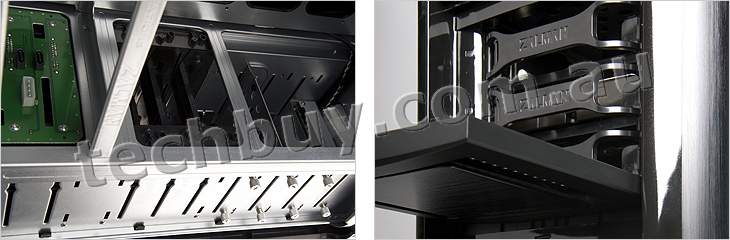

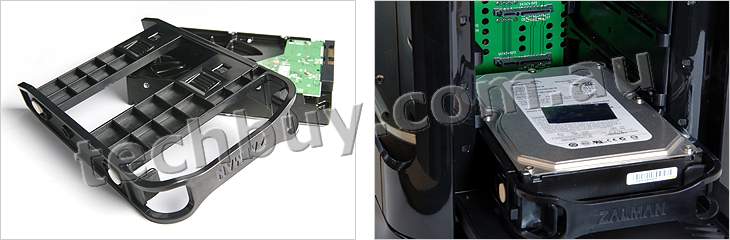

| - Rubber damper and hook system makes swapping out hard drives hassle free. |
| |
 |

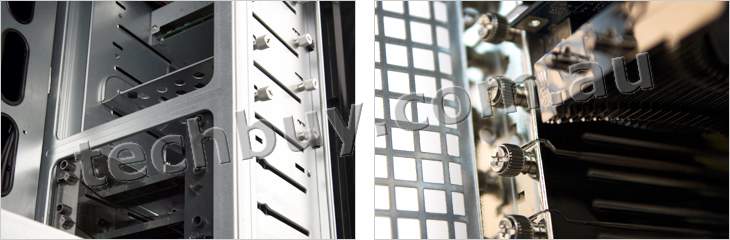

| - Tool-free installation for 5.25 devices. |
|
- Thumb screws for easy PCI card removal and installation. |
|
| |
 |

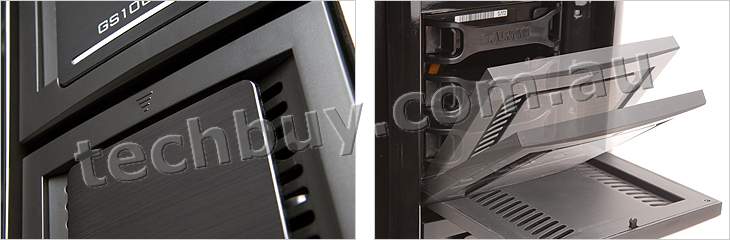

The front panel HDD door uses a one-touch operation to open and close. The hot swappable HDD bay allows for easy
installation. |
| |
 |

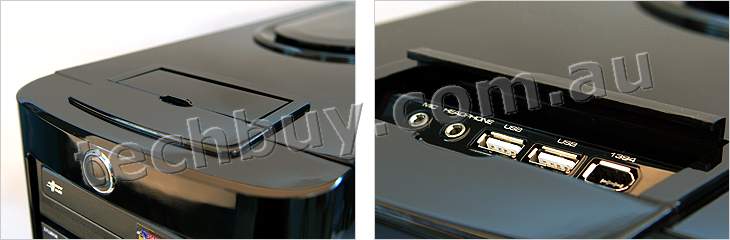

The input port cover door on the top of the case is designed with extra durable damper gear for a smooth swivel mechanism.
With multimedia power users in mind, USB, FireWire I/O, audio ports allow multimedia expansive applications. |
| |
 |

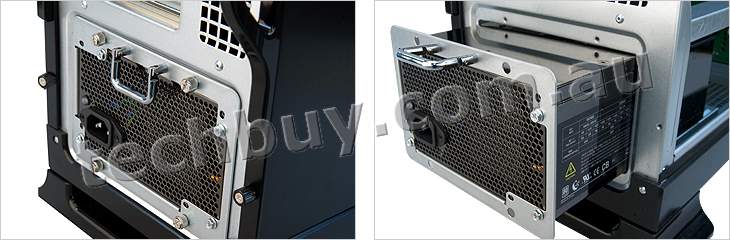

The PSU bay has easy installation system that utilizes a rubber roller system that makes it easy for the heavy PSU to slide in
and out. The rubber roller system also helps dampen vibration noise for reduction in overall noise. |
| |
 |

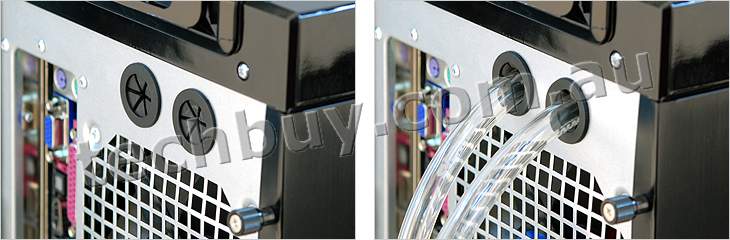

| With external liquid cooling systems in mind, the rear panel has rubberized ports for tubing. |
| |
 |

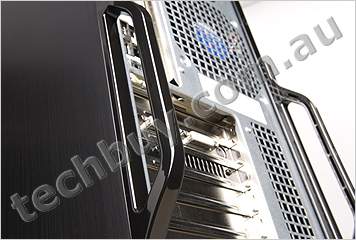

| Handles for easy side panel removal. |
| |
 |
 |

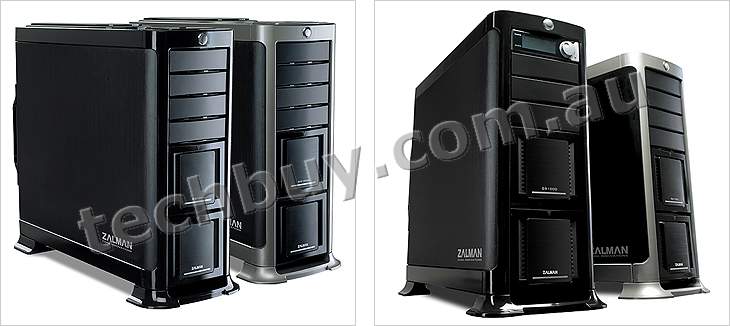

With choice of black or titanium for outer panels and the side panels utilizing anodization and hairline processes for a high
quality finish. |
| |
 |

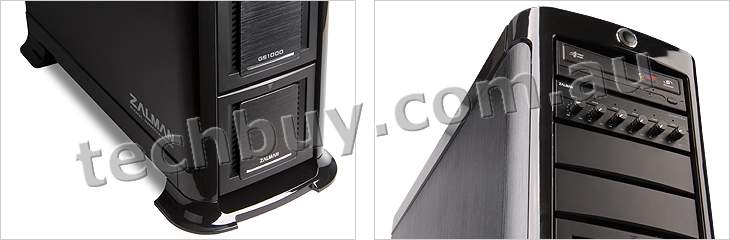

| The combination of the side panel aluminum with the rounded front gives the GS1000 an original look. |
| |
 |

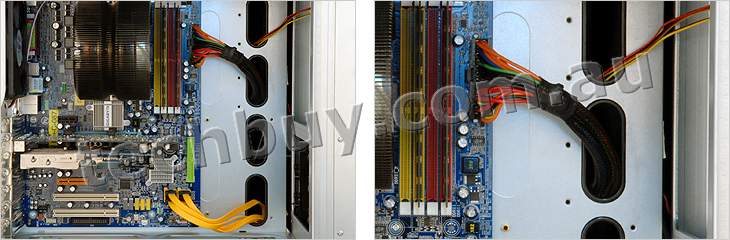

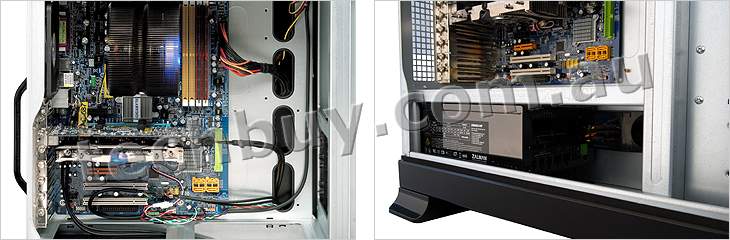

| With cable routing integrated throughout the case, the GS1000 offers solutions for clean cable management. |
| |
 |

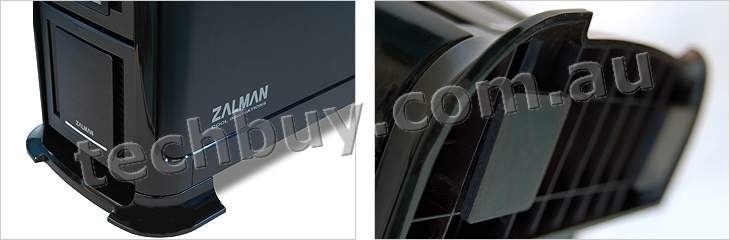

| With stability and design in mind, the GS1000s feet are of form and function. |
| |
 |

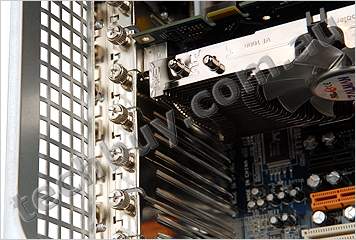

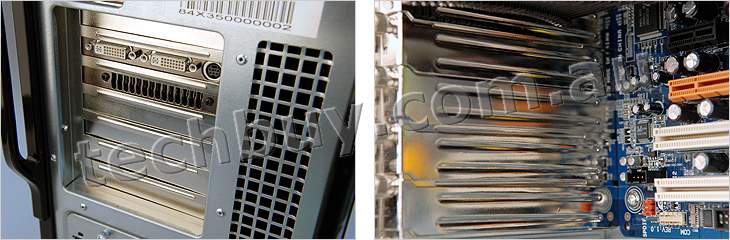

The PCI expansion slot is coated for durability and to prevent corrosion. Functional touches add an element of high quality
design. |
| |
 |
 |

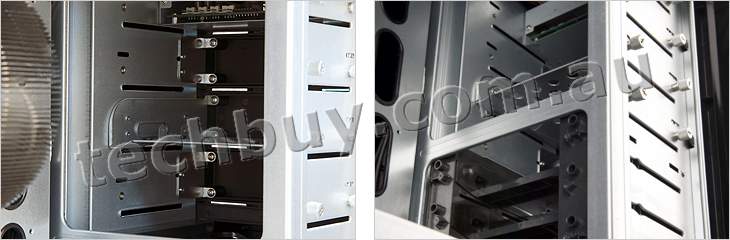

| The 4 5.25 external bays come with 2 in 1 brackets, which allow both FDD and HDD to be installed. |
| |
 |
| The GS1000 supports up to 8 hard disks, 6 of which supports the hot swap module (3 are optional). |
| |
 |
| E-ATX, Standard ATX and Micro ATX are supported. +1000W PSUs can be used. |
| |
 |
| A total of 7 PCI expansion slots are available. |
| |
 |
 |
- GS1000
- Foot (Front/Rear)
- CPU 12V Extend Cable
- M/B Stand off
- HDD Screws
- PSU Screws
- ODD, M/B Screws
- Foot Fixing Screws
- FDD Cover
- Cable Tie
- Users Manual |
|
|
|
| |
 |
| |
| Enclosure Type |
Full Tower |
| Dimensions |
220(W) x 560(H) x 580(D) mm |
| Weight |
12kg (26.4lb) |
| Material |
Aluminum / Plastic (ABS) / Steel (GI) |
| Motherboard Compatibility |
E-ATX / Standard ATX / microATX |
| Power Supply Compatibility |
Standard ATX / ATX12V |
| PCI/AGP Card Compatibility |
Full Size |
| Drive Bays |
5.25" External Bay x 4 * 2 Adaptors & Bezels included for use of two 5.25" bays as 3.5" Internal (HDD) / External (FDD) Bays |
3.5" Internal Bay x 6
- Hot Swap Bay x 3 (standard)
- Regular / Hot Swap Bay x 3 (optional) |
| Cooling Components (Fans) |
Top Vent: 120mm x 2 (1 Fan included), Rear Vent: 120mm x 1 (1 Fan included),
Bottom Vent: 120mm x 2 (Fans optional) |
| Expansion Card Slots |
7 Slots (Tool Free Bolts provided) |
| Front I/O Ports |
USB Port x 2, IEEE1394 (FireWire) Port x 1, Headphones x 1, Mic x 1 |
| Color |
Black
|
|
