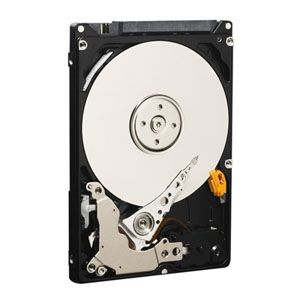

Western Digital 500GB 5400rpm 2.5" Mobile Serial ATA-II-300 HDD w. 8MB Cache (WD5000BEVT) Scorpio Blue

IMG 1 of 1
No Longer Available
Part Number:
91390
(?) Brand:
Western Digital Web Site
Manuf No:
WD5000BEVT
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WD5000BEVT
To make drive selection simple, weve gathered all our popular 5400 RPM WDScorpio drives under one umbrella we call WD Scorpio Blue. Built to Western Digitals awarding winning quality standards, these drives are available in a full range of performance features.

Key Features
Massive capacity - Whether they are in an external drive or a notebook computer, WD Scorpio Blue SATA drives are available in capacities up to 500GB and offer the most available capacity for space-hungry operating systems, like Window Vista, with plenty of room left over for photos, music, and video.

Quiet - In a notebook drive, silence is golden. WDs exclusive WhisperDrive combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.

Reliable and rugged - WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long-term reliability due to less head wear, and improved non-operational shock tolerance.

Fast and efficient - With 5400 RPM spin speed and 12 ms access time and up to 3 Gb/s SATA interface speed, even the most demanding customer will appreciate the performance achieved by WD Scorpio Blue drives.

Tested for compatibility - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.

Ideal For

Portable digital devices of all kinds, including notebook computers, external storage, and digital media players.

Performance Specifications
Rotational Speed 5,400 RPM (nominal)
Buffer Size 8 MB
Average Latency 5.50 ms (nominal)
Seek Times
Read Seek Time 12.0 ms
Track-To-Track Seek Time 2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 500,107 MB
Capacity 500 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 976,773,168
Physical Dimensions
English
Height 0.374 Inches 0.008 inch
Length 3.94 Inches 0.010 inch
Width 2.75 0.010 inch
Weight 0.26 Pounds
Metric
Height 9.5 mm 0.20 mm
Length 100.2 0.25 mm
Width 69.85 0.25 mm
Weight 0.117 kg
Environmental Specifications
Acoustics
Idle Mode 24 dBA (average)
Seek Mode 0 26 dBA (average)
Temperature (English)
Operating 32 F to 140 F
Non-operating -40 F to 149 F
Temperature (Metric)
Operating -0 C to 60 C
Non-operating -40 C to 65 C
Humidity
Operating 8-90% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating 0.00459 g/Hz (10 to 500 Hz)
Non-operating 0.05102 g/Hz (10 to 500 Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write 500 mA
Idle 400 mA
Standby 50 mA
Sleep 20 mA
Power Dissipation
Read/Write 2.50 Watts
Idle 0.85 Watts
Standby 0.25 Watts
Sleep 0.10 Watts

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
