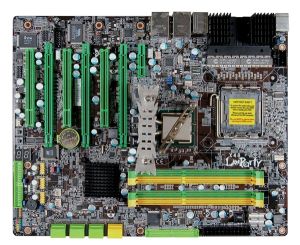

| CPU |
| |
LGA 775 socket for: - Intel CoreTM2 Quad and Intel CoreTM2 Duo
Supports Intel Enhanced Memory 64 Technology (EMT64T)
Supports Enhanced Intel SpeedStep Technology (EIST)
Supports Intel Hyper-Threading Technology
Supports 1600/1333/1066/800MHz FSB
|
| |
| Chipset |
| |
Intel chipset - Northbridge: Intel X48 Express chipset (with Intel Fast Memory Access technology) - Southbridge: Intel ICH9R
|
| |
| System Memory |
| |
Four 240-pin DDR3 DIMM sockets
Supports DDR3 800/1066/1333/1600MHz
Delivers up to 21.3Gb/s bandwidth at 1333MHz, (25.6GB/s bandwidth at 1600MHz)
Supports dual channel (128-bit wide) memory interface
Supports up to 8GB system memory
Supports unbuffered x8 and x16 DIMMs
|
| |
| Expansion Slots |
| |
2 PCI Express (Gen 2) x16 slots (PCIE 1 and PCIE 3) - 2-way CrossFire at x16/x16 bandwidth - 2-way CrossFire + Physics at x16/x16/x4 bandwidth
1 PCI Express x1 slot (PCIE 2)
1 PCI Express x4 slot (PCIE 4)
3 PCI slots
|
| |
| BIOS |
| |
Award BIOS
8Mbit flash memory
CMOS Reloaded
|
| |
| Audio |
| |
Bernstein audio module - Realtek ALC885 8-channel High Definition Audio CODEC - Center/subwoofer, rear R/L and side R/L jacks - Line-in, line-out (front R/L) and mic-in jacks - 2 coaxial RCA S/PDIF-in/out jacks - 1 optical S/PDIF connector - 1 CD-in connector - 1 front audio connector
DAC SNR/ADC SNR of 106dB/101dB
Full-rate lossless content protection technology
|
| |
| LAN |
| |
Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers
Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
|
| |
| Storage |
| |
Intel ICH9R chip - Intel Matrix Storage technology - Supports up to 6 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1, RAID 0+1 and RAID 5
JMicron JMB363 PCI Express to SATA and PATA host controller - Supports up to 2 UltraDMA 100Mbps IDE devices - Supports 2 SATA devices - SATA speed up to 3Gb/s - RAID 0 and RAID 1
|
| |
| IEEE 1394 |
| |
VIA VT6307
Supports two 100/200/400 Mb/sec ports
|
| |
| Rear Panel I/O |
| |
Mini-DIN-6 PS/2 mouse port and PS/2 keyboard port
1 IEEE 1394 port
6 USB 2.0/1.1 ports
2 RJ45 LAN ports
|
| |
| Internal I/O |
| |
3 connectors for 6 additional external USB 2.0 ports
1 connector for an external COM port
1 connector for an IEEE 1394 port
1 connector for the Bernstein audio module
1 front audio connector (on the Bernstein audio module)
1 CD-in connector (on the Bernstein audio module)
1 S/PDIF connector (on the Bernstein audio module)
1 IrDA connector
1 CIR connector
8 Serial ATA connectors
1 40-pin IDE connector and 1 floppy connector
1 24-pin ATX power connector
1 8-pin 12V power connector
2 4-pin 5V/12V power connectors (FDD type)
1 front panel connector
6 fan connectors
1 diagnostic LED
EZ touch switches (power switch and reset switch)
|
| |
| Power Management |
| |
ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
Wake-On-LAN and Wake-On-Ring
RTC timer to power-on the system
AC power failure recovery
|
| |
| Hardware Monitor |
| |
Monitors CPU/system/Northbridge temperature and overheat alarm
Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages
Monitors the speed of the cooling fans
CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat
|
| |
| PCB |
| |
6 layers, ATX form factor
24.5cm (9.64") x 30.5cm (12") All specifications above are subject to change without prior notice.
|
