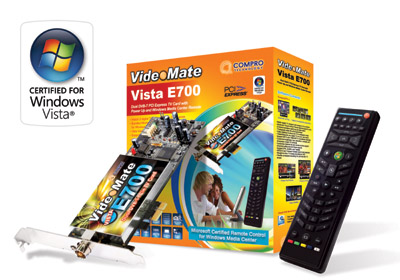

VideoMate Vista E700

PCIe Dual DVB-T TV Card with Power Up Scheduling and Windows Media Center Remote

Compro VideoMate Vista E700 is a fast PCIe dual DVB-T TV tuner card, which brings clear digital terrestrial TV broadcasts to your desktop PC and lets you view 2 main channels at the same time. It turns your computer into a home entertainment center by bringing you digital TV viewing and personal digital video recording (PVR) capabilities. VideoMate Vista E700 also comes with the certified Windows Media Center remote which gives users the control of Windows Media Center and ComproDTV 4.

The included ComproDTV 4 software features DVB-T TV watching/recording, channel surfing, timeshifting, single/multiple still frames capture, brightness/saturation/contrast/hue/sharpness adjustment in each TV channel and exclusive S5(shutdown)/S4 (hibernation)/S3 (standby) mode power up schedule recording. It also provides the advanced Picture In/Out Picture functions which allow users to watch up to 5 live TV windows and playback video files at once. The Video Desktop function lets users to stream live TV shows as wallpaper and use other applications at the same time. ComproDTV 4 can simultaneously operate, viewing or recording, multiple Compro TV devices on the same machine, internal and external.

To enhance the usability of Windows Vista and Windows Media Center, VideoMate Vista E700 also offers an array of useful functions. ComproDTV Vista Gadget provides live TV view and playback list with click of a button on the Windows SideBar. The DTV Add-In function makes the Media Centre more powerful by integrating it with DTV 4. The schedule recording list from Windows Media Center Electronic Programming Guide can be integrated to ComproDTV 4 for an easier schedule recording control. In addition, VideoMate Vista E700 is bundled with Ulead DVD MovieFactory 5 SE for DVD authoring. With the bundled Microsoft certified remote for Windows Media Center and powerful features, VideoMate Vista E700 PCIe TV card is undoubtedly your best TV card choice.


Key Features

  • Dual DVB-T digital terrestrial TV reception
  • Bundle with Windows Media Center remote to control Windows Media Center and ComproDTV 4
  • All-new ComproDTV 4 software with Vista Gadget, DTV Add-In, and Windows Media Center schedule recording list integration
  • ComproDTV 4 can simultaneously operate, viewing or recording, multiple Compro TV devices on the same machine, internal and external
  • S5/S4/S3 mode Power Up Scheduled Recording
  • Convenient Remote Controlled Power On/Off
  • Support SDTV and 1080i HDTV (where available)
  • Timeshift for the instant replay and pause live TV
  • Advanced PIP/POP features can open up to 2 main channel, 3 sub channel windows and also playback 1 recorded video files at the same time
  • Video Desktop can stream live TV shows as wallpaper
  • Single/sequential still frame captures and remote snapshot
  • Straight-to-Disc for digital TV recording to DVD discs
  • Supports MPEG-2 and Transport Stream record/playback
  • Digital TV support EPG, subtitle, & Teletext (where available, not support MHEG-5 in UK)
  • Certified for Windows Vista 32/64Bit

Hardware Equipment

Hardware

  • Advanced silicon digital TV tuner x 2
  • Silicon digital TV demodulator and PCIe bridge
  • Shielding cover for better EMI resistance
  • Support 6, 7, 8 MHz in digital TV
  • PCI Express x1 interface and low-profile card design
  • Microsoft certified remote control for Windows Media Center Card dimensions: 170 x 70 mm

Connectors

  • DVB-T signal input (I-type connector)
  • IR receiver connector
  • Power switch connector (2-pin x 2)

Product Requirements

  • CPU
    -1.7 GHz for TV viewing, DVD-quality recording
    -2.6 GHz(SSE 2) for HDTV/TS viewing/recording/PIP/POP
    -3.0 GHz(SSE 2) for 6 windows PIP/POP
  • Memory: 512 MB (1GB recommended)
  • Available PCI Express x1 slot
  • Free disc space: 50MB minimum
  • CD drive for software installation
  • Sound card or on-board sound chip
  • Graphics Card or on-board graphics supports DirectX 9
  • ATX power
  • 2-pin power switch connector from system case
  • OS: Windows XP SP2 / Vista x86/x64
  • Digital TV antenna

Specifications

Tuner (Digital TV)

Impedance

75

Frequency Range

48.25 - 863.25 MHz

COFDM (Digital TV)

FFT Size

2K or 8K

Punctured Codes

1/2, 2/3, 3/4, 4/5, 5/6, or 7/8

Bandwidth

6, 7, or 8 MHz

I/O Connectors

Connectors

  • DVB-T signal input
  • IR receiver connector
  • Power switch connector (2-pin x 2)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
