| CPU |
- Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/Intel Pentium Dual-Core processo/Intel Celeron processor in the LGA 775 package
- L2 cache varies with CPU
|
| Front Side Bus |
- 1333/1066/800 MHz FSB
|
| Chipset |
- North Bridge: Intel G41 Chipset
- South Bridge: Intel ICH7
|
| Memory |
- 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
- Dual channel memory architecture
- Support for DDR2 800/667 MHz memory modules
|
| Onboard Graphics |
North Bridge:
- 1 x D-Sub port
- 1 x DVI-D port (Note 2)
SiI1392 chip*:
- 1 x HDMI port*
|
| Audio |
- Realtek ALC888 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF In/Out
- Support for CD In
|
| LAN |
- Realtek 8110SC chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x4 (Refer to the graphics cards support list.)
- 3 x PCI slots
|
| Storage Interface |
South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
|
| USB |
- Integrated in the South Bridge
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x floppy disk drive connector
- 1 x IDE connector
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x CD In connector
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x power LED header
- 1 x chassis intrusion header
|

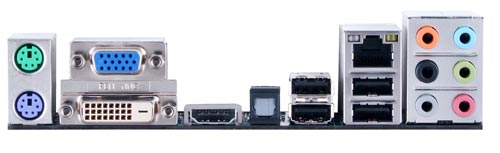

| Back Panel Connectors |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x optical S/PDIF Out connector
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
|
| I/O Controller |
- iTE IT8718 chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control (Note 3)
|
| BIOS |
- 2 x 8 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Unique Features |
- Support for @BIOS
- Support for Q-Flash
- Support for Virtual Dual BIOS
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (Note 4)
- Support for Dynamic Energy Saver Advanced
- Support for Time Repair
- Support for Q-Share
|
| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft Windows Vista/XP
|
| Form Factor |
- Micro ATX Form Factor; 24.4cm x 20.7cm
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
|
| Note |
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) Whether the CPU/System fan speed control function is supported will depend on the CPU/ System cooler you install.
(Note 4) Available functions in EasyTune may differ by motherboard model. |
