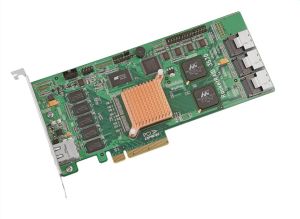

HighPoint RocketRAID 3530 RAID Controller - 12xSATA (via 3-Port Mini-SAS Internal SFF-8087), 256MB - PCI-Ex8
RAID 0,1,3,5,6,10,50,JBOD

No Longer Available

Part Number:

96619

(?) Brand:

HighPoint Web Site

Manuf No:

RR3530

Shipping Weight:

1.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

7/11/2008

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

RR3530

Host Adapter Architecture

Intel IOP341 (800MHz)

256MB onboard cache

PCI-Express x8

Up to 12 SATA 3Gb/s Hard Drives

Supported RAID Feature

RAID Levels 0, 1, 3, 5, 6, 10, 50 and JBOD

Multiple RAID Support

Online Array Roaming

Automatic RAID Rebuild

Automatic Drive Insertion

Quick Initialization

Online Capacity Expansion / Online RAID Level Migration

Hot Spare - (global)

Configurable stripe size

Staggered Drive Spin-up

Bad Sector Repair and Remapping

BIOS Booting Support

HighPoint RAID Management (HRM) Suite

Web GUI management utility

CLI (Command Line Inteface)

BIOS Management

Alerts and Indicators

SMTP (Email Notification)

(Hard drive activity and failure) LED

SAF-TE chassis environment monitoring


Retail Dimension
	7.95L x 3.77H (202.0mm L x 96.0mm H)
Operating Temperature
	Work Temp +5 C ~+ 55 C
	Storage Temp ~20C ~ 80 C
	Relative Humidity 5% ~ 60% non condensing
Operating Voltage
	PCI-e: 3.3V / Power: 5W
Regulator Certification
	FCC / CE
MTBF
	Mean Time Before Failure 920,585 Hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1-year Manufact.

Full manufacturers warranty details are available at the manufacturers (HighPoint) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
