4SV120BND1 | Avocent SwitchView 100 4-Port USB KVM Switch w. Audio

Part shop - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> KVM/Switch Boxes -> CPU/KVM -> Avocent

Avocent SwitchView 100 4-Port USB KVM Switch w. Audio
Inc. Cables

No Longer Available

Part Number:

98472

(?) Brand:

Avocent

Manuf No:

4SV120BND1

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/12/2008

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

4SV120BND1, 636430045139

The SwitchView 100 4-port miniature KVM switch provides access and control of up to four USB-enabled multimedia computers.

The SwitchView 100 4-port KVM switching solution is one of the industrys smallest and most versatile desktop KVM solutions. You can easily connect and control your small-office/home-office (SOHO) desktop environment with this space-saving KVM switch. The SwitchView 100 4-port switch lets you access and control up to four USB-enabled multimedia computers using only one USB keyboard and mouse and VGA monitor. Plus, this solution supports 2048 x 1536 video resolution and provides audio and microphone support.

Single user, 4-port miniature switch does not compete for space on the desktop
Convenient USB connectivity
Supports 2048 x 1536 video resolution
Access multiple multimedia computers using a single keyboard, monitor, mouse, speaker set and microphone
Affordably priced for the small office/home office

Features and Benefits

Feature	Benefit
Slim design	Does not compete for space on the desktop
Audio and microphone switching	Monitor the audio/microphone input/output of each multimedia computer without moving the plugs from PC to PC. Allows for uninterrupted multimedia experience across multi-platforms.
Channel selection	Switch between channels using pushbuttons or hotkeys.
USB interface powered	No external power supply
Cables included	Save money

Specifications

PC Connections	4
Console Connections	1
PC Port Connectors	4 x HDB 15-pin male 4 x 3.5mm audio/mic jack
Console Port Connectors	2 x USB Type A (keyboard & mouse) 1 x HDB 15-pin female 1 x 3.5mm audio jack 1 x 3.5mm mic jack
PC Selection	Pushbuttons/Hotkeys
PC port LED	4 Green
VGA Resolution	2048 x 1536
Power Type	USB interface power
Housing	Plastic
Dimensions (LxWxH)	164x72x26mm
Certifications	FCC, CE, C-ti

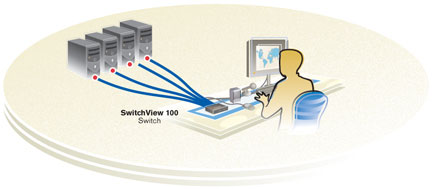

Diagram

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
