16SV1000BND1-107 | Avocent SwitchView 1000 16-Port PS/2/USB KVM Switch w. Audio

Desktop computer - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> KVM/Switch Boxes -> CPU/KVM -> Avocent

Avocent SwitchView 1000 16-Port PS/2/USB KVM Switch w. Audio
Rack Moutable w. OSD (On Screen Display)
Inc. 4x 6ft Cables & 4x 9ft Cables

No Longer Available

Part Number:

98484

(?) Brand:

Avocent

Manuf No:

16SV1000BND1-107
16SV1000BND1107

Shipping Weight:

15 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/12/2008

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

16SV1000BND1107, 16SV1000BND1-107

Includes 4x 6ft Cables & 4x 9ft Cables

The SwitchView 1000 rack mount, 16-port KVM switch provides PS/2 and/or USB connectivity for SMB server rooms.

The cost-efficient SwitchView 1000 16-port KVM switch provides PS/2 and/or USB connectivity for users and target devices. This single-user switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions. The SwitchView 1000 16-port switch can be cascaded to support up to 256 target devices. With a 1U-high design, the switch does not compete for valuable rack space in SMB server rooms. Plus, it is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers.

Single user, 16-port rack mount switch
PS/2 or USB connectivity for users and target devices
OSD supports 2048 x 1536 high video resolution ideal for graphical applications
1U design is a space saver in SMB server rooms

Features and Benefits

Feature	Benefit
User
On-screen display (OSD)	Simple control through an on screen menu
Password protection	Secure access is based on password protection
Programmable autoscan	Customize scanning times between attached systems
Flash upgradeable	Convenient upgrades mean that the product never goes out of date
Operation
USB hot key switching	Switch via USB keyboard sequence
Daisy chain auto initialization	Connect multiple units together without complicated configuration
Hardware
USB & PS/2 system/target support	Supports both PS/2 and USB systems. Supports up to 256 systems.
USB & PS/2 peripheral/user support	Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
1U height	Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
Combo cables	Uses a three-in-one KVM cable that supports USB or PS/2 target devices
Performance
Video resolution	2048 x 1536 video resolution supports the most demanding server room applications

Specifications

Mechanical
Height	1.75 in. (4.45 cm)
Width	16.14 in. (41 cm)
Depth	7.429 in. (18.9 cm)
Weight	4.85 lbs. (2.2 kg)
Environmental
Operating Temp	32 to 104 F (0 to 40 C)
Storage Temp	-4 to 140 F (-20 to 60 C)
Power
Operating Voltage	5V
Power Frequency	60 Hz
Input Power	DC 9V
Supported Hardware
Computers	PC, Mac, Sun [with USB or PS/2 interface]
Monitors	2048 x 1536 maximum
Peripherals	PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor
Standards
Approved Agency	FCC, CE, C-Tick, UL, cUL

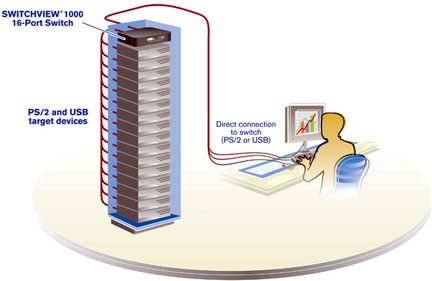

Diagram

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years

Full manufacturers warranty details are available at the manufacturers web site.
