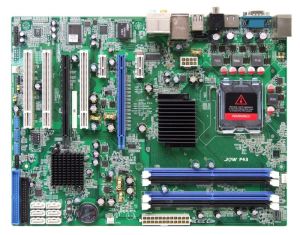

J&W JW-IP43-S Motherboard

Processor

1. LGA775 for Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium  Dual Core, Pentium  D, Pentium  4, Celeron  (Conroe-L) and new generation 45nm Yorkfield & Wolfdale Processors

Chipset

1. Intel P43 + ICH10
2. Marvell  88E8056 Gigabit Ethernet Controller
3. Super I/O:Winbond W83627DHGchip
4. Realtek ALC888 8-Channel HD Audio Codec
5. 8M bit flash ROM

Front Side Bus

1. 1333/1066/800 MHz FSB

Memory

1. Type: Dual Channel DDR2 1066 (O.C.)/800/667 support
2. Max capacity: 8 GB
3. DIMM slots: 4

Internal I/O

Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 6 x SATA 3Gb/s connectors (Support AHCI)
5. 1 x CPU fan header
6. 2x system fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF In header
10. 1 x S/PDIF Out header
11. 3 x USB 2.0 headers for additional 6 USB 2.0 ports (by cables)
12. 1 x eSATA connector
13. 1 x buzzer header

Expansion Slots

1. 1x PCI-E x16 Gen. 2 slot
2. 1 x PCI-E x4 slot
3. 2x PCI-E x1 slots
4. 3x PCI slots

Rear Panel I/O

1. 1 x PS/2 Keyboard port
2. 2 x USB 2.0 ports
3. 1 x Serial port
4. 1 x eSATA port
5. 1 x coaxial S/PDIF In port
6. 1 x optical S/PDIF Out port
7. 4 x USB 2.0 ports
8. 1x RJ45 LAN port
9. 6 x Audio ports (Line In / Line Out / MIC In / Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)

Form Factor

1. ATX
2. 230mm x 304.8mm

H/W Monitoring

1. Winbond W83627DHG
2. System health status auto-detect and reported by BIOS

BIOS

1. 8Mbit flash ROM, AMI BIOS

Bundle Software

1. Magic Partner (available on website for download, coming up soon)

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.
