LT-PxVC1100-CRI | Leadtek Winfast PxVC1100-CRI Dual-CS Coder - Converts SD to

• HD Transcoding/Editing faster than real time
• Upgrades (converts) SD to Full HD
• Video editing of consumer generated contents

WinFast PxVC1100, Leadteks brand-new generation of MPEG4-AVC/H.264 trans-coding cards is composed of Toshibas High-Performance Stream Processor SpursEngine*1 integrating four Synergistic Processing Elements (SPE)*2 cores based on the "Cell Broadband Engine*3 intelligence power protection, a one-slot adaptive cooling FANsink, and PCI-Express Low profile Form factor.

For extensive video editing/ video conversion users, Adobe Premiere Pro CS3 / CS4 is the most powerful and best known video conversion tool. This packaged bundle comes laden with CRI Dual-CS Coder plug-in for Adobe Premiere Pro CS3 / CS4 and elements 7, developed by CRI Inc . The CDC plug-in allows the Adobe user to experience incredible video conversion performance through Leadtek PxVC1100 hardware acceleration.

*1 SpursEngine SE1000
a high-performance stream processor based on Cell Broadband Engine.
*2 Synergistic Processor Element (SPE)
This is a processor core with a high performance floating point computation capability and original instruction set architecture for optimized processing of multiple media applications.
*3 Cell Broadband Engine (Cell/B.E.)
The revolutionary Cell/B.E., jointly developed by IBM, Sony Group and Toshiba, is a breakthrough design featuring a central processing core based on IBM's Power Architecture technology and eight synergistic processing elements (SPE). Cell/B.E. brings an unseen level of broadband processing power to digital products.

• Fastest video transcoding process Real-time H.264 <-> MPEG-2 , SD <-> HD video transcoding.
• Super Resolution - Video quality enhanced picture resolution up-scaling for HD video, Super resolution makes the video looks more clear and sharper, like the blue-ray quality
• Best Application Pegasys TMPGEnc4.0 XPress accepts the most comment video format with friendly user interface.
• Green Product less than 35W, low power consumption will not be the burden of your system, and save energy.
• Less CPU loading to free your system by 50% less CPU usage. New tech revolution make you can do other job in the transcoding time forever

• 1 slot FANsink(Adaptive cooling FAN)
  Power on : 40%
  Main chip 85C : 80%
  Main chip 90C : 100% (32dB)
  Sensor fail or main Chip 96C : Shut Down

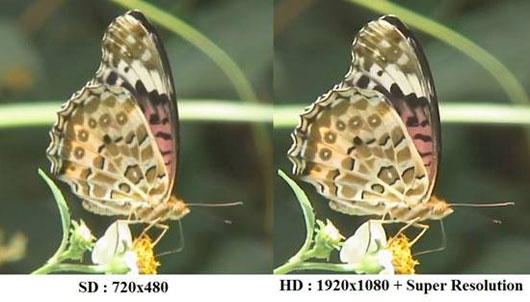

Super Resolution
Convert Standard Definition (SD) video to a sharper and clearer High Definition (HD) video using the super resolution algorithm developed by Toshiba
Utilizes high-performance stream processor: SpursEngine 's high speed calculation ability to execute immense number of processes needed for super-resolution.

BundleSoftware

CRI Dual-CS Coder , plug in for Adobe Premiere Pro CS3 /CS4
Adobe Premiere Pro is one of the most professional video editing and conversion tool around today. Thanks to its friendly user interface and powerful function, Adobe Premiere Pro has become an irreplaceable tool. CRI Dual-CS coder plug-in has been developed for Adobe Premiere Pro CS3 / CS4. The combination of Adobe Premiere Pro with Leadtek WinFast PxVC1100, offers Adobe users a new export option (MPEG-4 and H.264). This option is made possible through using the TOSHIBA SpursEngine Multi SPE core that speeds up the conversion process, shortens your downtime and maximizes your working capacity.

CRI Duo-CS Coder is developed by useing the advantage of TOSHIBA SpursEngine chip, the video encoding is processed by spursEngine, it can extremely short the 70% process time spending (High Definition video converting).

CRI Duo-CS Coder is developed by useing the advantage of TOSHIBA SpursEngine chip, the video encoding is processed by spursEngine, it can extremely short the 70% process time spending (High Definition video converting).

CRI Dual-CS coder plug-in is used to process video encoding using Leadtek PxVC1100 Hardware acceleration (TOSHIBA SpursEngine). It thus stresses High Definition (HD) conversion. After plug-in installation is complete, it will add a CRI Dual-CS Coder option for the video export list.

Video Export format support
Please refer to Adobe Premiere Pro CS4:

High-Powered, High-Speed Encoding

Blazing Fast MPEG-2 and H.264 Video Encoding
By using this plug-in, you can now take control of the encoder circuits included in the SpursEngine and experience incredible output processing speed even with high CPU power demanding tasks such as high-definition video processing.

Benchmark Results

[ Notes ]
At CRI Dual-CS Coder, performance of CS4 or MediaEncoder is better than CS3.
But at Standard Software Encoder, performance of CS3 is better than CS4.
CS4 measurement result means calling Media Encoder from CS4. Media Encoder measurement result means direct starting Media Encoder.
Encode performance is better if not calling Media Encoder from CS4.

[ Test Environment ]
1. PC :Core2Duo 2.4GHz, Memory 2GB, HDD 3.5 S-ATA 320GB(7200rpm), Windows XP Pro SP3
2. Software : Adobe Premiere Pro CS4 Ver.4.1.0, Media Encoder CS4 Ver.4.1.0.107, Premiere CS3 Ver.3.1.0, CRI Dual-CS Coder[CS4]Ver.1.11.00
3. Input File : MPEG-2 format(CG material), 29.97fps, Progressive, 60sec(1800frames)
4. Output File : MP4 format(Video:H.264, Audio:MPEG-4 AAC)
**Input and Output resolution is same, so there is no resize processing.
*** The test result is made by CRI.
