All stock codes associated to this product
, GERV850EWT, G-ERV850EWT
 |
Feature |
>
 |
85PLUS ready!
World's first modular cable PSU series with 85-91% efficiency @ 20-100% load. Certified by 80 PLUS organizations. |
 |
|
nVidia SLI certified
nVidia SLI certified. (ENERMAX REVOLUTION85+ 850W, ERV850EWT-00, NVIDIA, SLI are registered trademarks or trademarks of NVIDIA Corporation.) |
|
|
FUTURE CPU ready!
Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V PSU design guides for compatibility & by ZERO LOAD Design for C6 state functions. |
|
|
FUTURE GPU ready!
Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by six massive 12V rails for perfect load distribution & by ZERO LOAD Design for Hybrid Mode functions. |
|
|

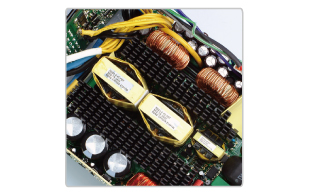

AHD Topology
Industry-leading Asymmetric Hybrid DC-to-DC topology with the worlds highest efficiency & most stable performance. |
|
|
24/7 @ 50C ready!
Non-Stop industrial class performance at 50C/122F ambient. |
|
|
HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime. |
|
|
PowerGuard
PSU status monitor with 4-mode LED (Off / Stand-by / OK / Fail). |
|
|
SafeGuard
Industry-leading octuple protection circuitry of OCP, OVP, UVP AC, UVP DC, OPP, OTP, SIP & SCP protects your system. |
|
|
AirGuard
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences. |
|
|
SILENT ready!
Ultra-quiet 13.5cm fan with intelligent RPM control guarantees cool performance and silent operation. |
|
|
99% 12V Power
World's first EPS12V PSU with 99% 12V output capability. |
|
|
SERVER ready!
SSI PSDG 2009 support for latest Intel Core Extreme/i7, Xeon and AMD Opteron and SLI. Ultra systems and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8. |
|
|
DXX ready!
For PCI Express 2.0/DXX next-generation graphic cards with 6+2P (8P) PCI-E connectors. |
|
|
EMC ready!
Full-scale electromagnetic filtering protects your system against radiation interferences (CE EMC EN61204 compliance). |
|

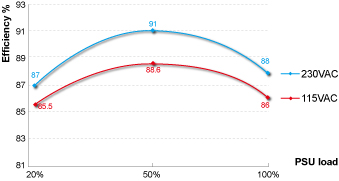

85PLUS ready! |
|
|
 |
|
850 / 950 / 1050 Watt
|
|

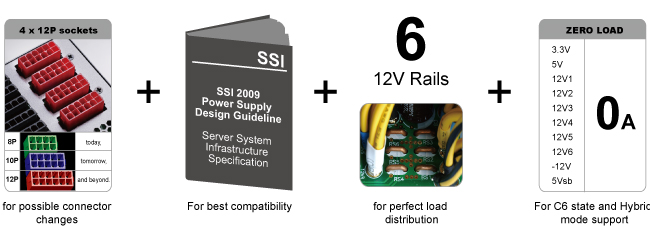

FUTURE CPU / GPU ready! |
Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V PSU design guides for compatibility, by six massive 12V rails for perfect load distribution & by ZERO LOAD Design for C6 state and Hybrid Mode functions.

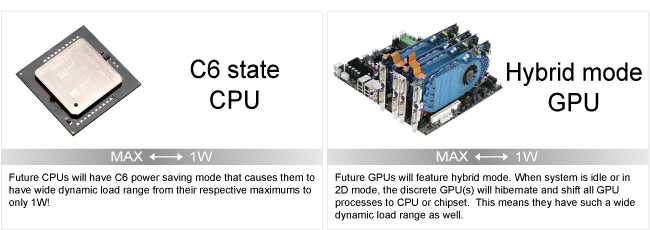

REVOLUTION85+ can maintain extra tight DC regulation to support C6 mode and Hybrid graphic power saving mode thanks to its ZERO LOAD (0W) Design.
|

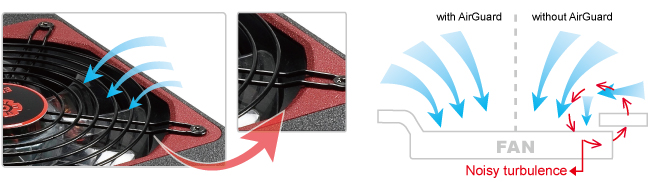

AirGuard |
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
|

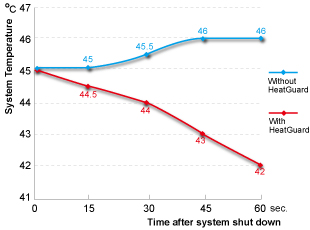

HeatGuard |
|
| After shut-down, HeatGuard will keep PSU fan running for 30-60 seconds to dissipate the remaining system heat and prolonging lifetime. |
|
|
|
|
|

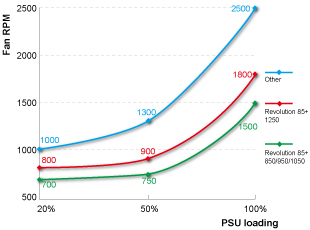

Silent ready! |
|
| Ultra-quiet 13.5 cm fan with intelligent RPM control guarantees cool performance and silent operation. |
|
|
|
|

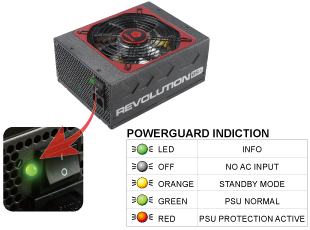

PowerGuard |
|
PSU status monitor with 4-mode LED (Off/ Stand-by/ OK/ Fail).
|
|
|
|
|
|

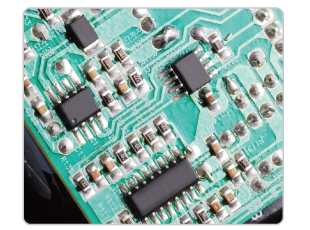

SafeGuard |
|
| Industry-leading octuple protection circuitry of OCP, OVP, UVP AC, UVP DC, OPP, OTP, SIP, and SCP protects your system. |
|
|
|
|

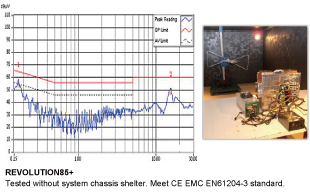

EMC ready! |
|
| Full-scale electromagnetic filtering protects your system against radiation interferences (CE EMC EN61204 compliance). |
|
|
|
|
|
99% 12V Power |
|
Maximum CPU, GPU & RAID support by AHD topology.
|
|
|
|
|

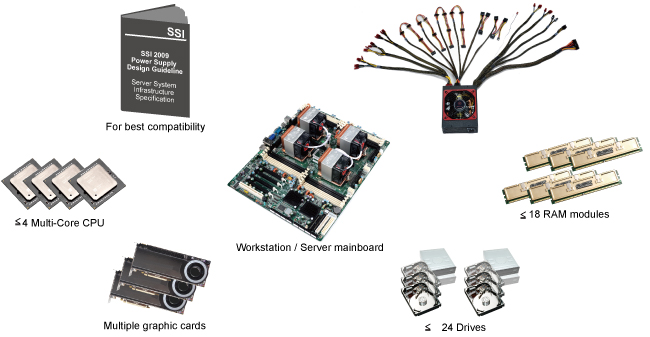

SERVER ready! |
Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by comPSDG 2009 support for latest Intel Core Extreme/i7, Xeon and AMD Opteron and SLI or CrossFireX and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8.
| *1 |
Heavy-duty workstation with >16 FB-DIMM will neede 5A 5Vsb power in ACPI S3 mode. REVOLUTION85+ can perfectly support them and also
>14 USB devices. |
| *2 |
Max. CPU/GPU support may need additional modular cables. |
| *3 |
Actual maximum support may vary by available connectors per model and by power consumption of connected components and is limited to
DC output specifications. |
|

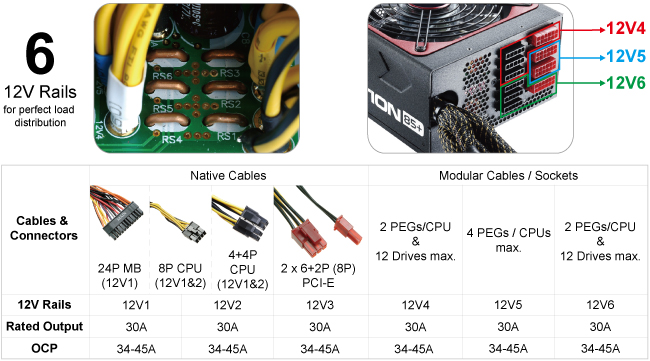

12V RAIL DISTRIBUTION |
REVOLUTION85+'s 6 12V rails with 30A output and true 6 individual Over Current Protection circuits ensure best power distribution and compatibility without sacrificing safety control.
| Model Number: ERV850EWT-00 |
| AC Input Voltage |
115-240VAC, 50-60Hz, Active PFC(Maximum range: 100-264VAC, 47-63Hz) |
| AC Input Current |
9 - 4.5A |
DC
output |
Rated |
3.3V |
5V |
12V1 |
12V2 |
12V3 |
12V4 |
12V5 |
12V6 |
-12V |
5Vsb |
| 0-25A |
0-25A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-0.6A |
0-5A |
| Combined |
160W |
840W (70A) |
7.2W |
25W |
| Total Power |
850W |
| Peak Power |
1020W |
| Model Number: ERV850EWT-00 |
| Native Cables |
 |
24P MainBoard |
|
x1 (55cm) |
 |
8P CPU |
|
x1 (55cm) |
 |
4+4P CPU |
|
x1 (55cm) |
 |
6+2P (8P) PCI-E 2.0 |
|
x2 (55cm) |
 |
Fan RPM |
|
x1 (55cm) |
| Modular Cables |
|
|
x1 |
|
|
x1 |
|
|
x2 |
|
|
x3 |
