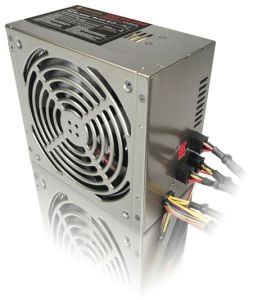

ThermalTake 550W TR2 RX Power Supply, 14cm Fan - Modular

IMG 1 of 1
No Longer Available
Part Number:
74868
(?) Brand:
ThermalTake Web Site
Manuf No:
//W0134
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/8/2007
Details Files Images & Video
All stock codes associated to this product
//W0134, //SPTTW0134, //SP-TTW0134, //AO9514

ATX
12V 2.2
PFC
AMD / Intel
Dual Core Support
PCI Express
Connectors
X2
S-ATA
Connectors
X4
Universal 24Pin
Complies with ATX 12V 2.2 Version.
Compatible with latest dual PCI-Express and Dual Core CPU configuration.
Reliable 140mm ball bearing fan.
Modularized cable management improves internal airflow.
PFC function improves energy efficiency.
Super quiet and stable 140mm ball bearing fan.
Gold-plated connector for better conductivity.
Built in industrial-grade protections: Over Current, Over Voltage, and Short-Circuit.
Safety / EMI Approvals: UL, CUL, TUV, FCC and CE certification.


Total Output Connector:
24-pin Main Connector X1
& 4-pin +12V X1 		6-pin PCI Express Connector X 2
4-pin Peripheral
Connector X 8
Floppy
Connector X 2 		5-pin S-ATA
Connector X 4

Technology Features:
14 cm Fan High thermal performance
Universal 24(20) pin Main Connector
Dual +12V Rails
PCI-Express Connectors

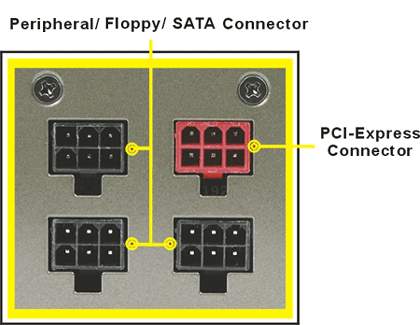

Embedded Socket Design

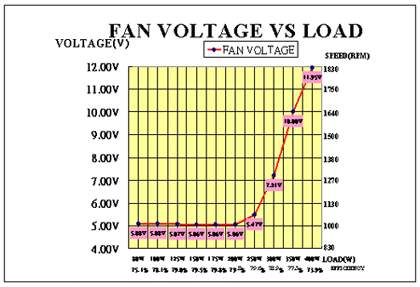

Thermal Performance:

Cable Application:

Intelligent Cable Management :
All cables are sleeved with black mesh cable sleeving
Optimum air-flow currents within the chassis



P/N
W0134
Maximum Power
550 Watts
Color
Hi-Tech Black
Switches
ATX Logic on-off additional power rocker switch
PFC (Power Factor Correction)
Passive PFC
Cooling System
One 140mm Fan:
SPEED : 2300 RPM(+/-10%)
DIMENSION : 140 x 140 x 25 mm
AIR FLOW: 105 CFM TEMP. AUTO CONTROL
BEARING TYPE: Two Ball-Baring
Noise
16 dBA at 1300 RPM
P. G. Delay
100-500 ms
Over Voltage Protection Recycle AC to Reset
+5V output 7.0 Vmax
+3.3V output 4.5 Vmax
+12V output 15.6 Vmax

DIMENSIONS
Unit Size
160mm(L)x150mm(W)x86mm(H)
Net Weight
2.2 kg

INPUT
Input Voltage
115 VAC / 230 VAC
Input Frequency Range
50 ~ 60 Hz
Input Current
10A / 5A
Hold-up Time
8ms(minimum) at 80% of Full Load, at 230Vac input
Efficiency
> 70%

OUTPUT
Voltage
+3.3V
+5V
+12V1
+12V2
-12V
+5VSB
Max. Load
30A
28A
16A
17A
0.3A
3.0A
Min Load
05.A
0.3A
1.0A
1.0A
0.0A
0.0A
Peak load
--
--
--
--
--
50mV
Load Reg.
5%
5%
5%
5%
10%
5%
Ripple & Noise
100 mV
100 mV
150 mV
150 mV
150 mV
100 mV
