Enjoy full high-definition viewing on a 23" monitor thats incredibly slim, exceptionally sleek and environmentally conscientious.
- Ultra-slim panel: Add design flair to virtually any space with DellsTM slimmest LED monitor ever.
- Full high-definition viewing: Enjoy an incredible multimedia experience with Full HD (1920x1080 max.) resolution.
- Environmentally conscientious design: Rest easy knowing your DellTM S2330MX monitor is designed to be safe for your home and the environment with arsenic-free and mercury-free LED panels.
Overview
Enjoy high-definition thrills and energy-conscientious performance.
Bring your multimedia experiences to life with the energy-conscientious Dell S2330MX monitor. With its 23" (58cm) LED screen and sleek, ultra-slim design, it looks great from any angle.
Fast, seamless visuals.
Videos and games come to life with an incredibly fast 2ms with overdrive gray to gray (typical) response time and brilliant LED backlight.
Mega-dynamic contrast
Watch images pop in amazing detail with an estimated mega-dynamic contrast ratio of 8,000,000:1 (typical).
Thrilling Full HD
Enjoy cinema-like viewing with Full HD (1920x1080 max.) resolution and an 82% color gamut for vivid images1.
Energy-efficient design
Experience high performance and efficiency with a monitor thats EPEAT Silver and ENERGY STAR qualified.
Complement your décor with a beautiful, thin design.
Designed to be a powerhouse of visual excitement, the ultra-slim Dell S2330MX monitor can provide a 16:9 widescreen experience in almost any space.

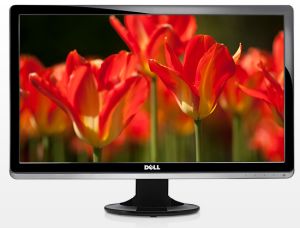

Dell S2330MX 23" ultra-slim monitor with LED
DISPLAY
Diagonal Viewable Size:
58.42 cm (23") viewable area
Aspect Ratio:
Widescreen (16:9)
Panel Type:
TN - Twisted Nematic, Non-glare
Max Preset Resolution:
Full HD 1920 x 1080 @ 60Hz
Contrast Ratio:
1000 : 1 Static (typical)
8 Million:1 Dynamic (estimated)
Brightness:
250 cd/m2 (typical)
Response Time:
2ms typical overdrive (Gray to Gray)
Max Viewing Angle:
(160 vertical / 170 horizontal)
Color Gamut:
82% (CIE 1976) / 72% (CIE 1931)
Color Support:
16.7 million colors
Pixel Pitch:
0.265 mm
Panel Backlight:
LED
CONNECTIVITY
VGA
DVI-D (HDCP)
Comes with DVI-HDMI dongle
STAND
Tilt
VESA Mounting Support:
No
BUILT-IN DEVICES
Kensington security port
SECURITY
Port for security cable lock
SIZE AND WEIGHT
Dimensions with stand (H x W x D):
16.15 inches (410.21 mm) x 21.74 inches (552.20 mm) x 7.41 inches (188.26 mm)
Dimensions without stand (H x W x D):
13.47 inches (342.13 mm) x 21.74 inches (552.20 mm) x 1.19 inches (30.30mm)
Preset Display Area(H X V):
20.05 inches(509.18 mm) x 11.28 inches(268.42 mm)
Weight (monitor and cables)
3.76 kg (8.29 lbs)
Weight (with packaging)
4.70 kg (10.36 lbs)
Environmental and Regulatory
ELECTRICAL
Voltage Required:
100 to 240 VAC / 50 or 60 Hz + 3 Hz / 1.5A (Max.)
Operating (Typical - Maximum)
27W (typ) - 33W (Max)
ENVIRONMENTAL
Temperature Range Operating:
0° to 40° C (32° to 104° F)
Temperature Range Non-operating:
Storage : -20° to 60° (-4° to 140° F)
Shipping : -20° to 60° (-4° to 140° F)
Humidity Range Operating:
10% to 80% (non-condensing)
Humidity Range Non-operating:
Storage : 5% to 90% (non-condensing)
Shipping : 5% to 90% (non-condensing)
Altitude Operating:
3,048m (10,000 ft) max
Altitude Non-operating:
10,668m (35,000 ft) max
COMPLIANCE AND STANDARDS
Energy Star
EPEAT Silver
WHAT'S IN THE BOX
S2330MX 23" monitor
Stand Riser and Stand Base
Power cable and Adapter cable
VGA cable
DVI-HDMI Dongle
CD User’s guide and documentation
