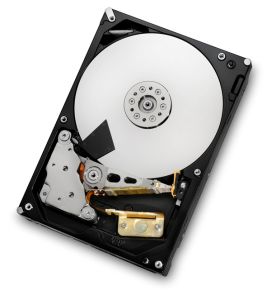

Hitachi 4000GB (4TB) 7200rpm SATA-III 6Gbps HDD w 64MB Cache (0F14683) Ultrastar 7K4000 Series

IMG 1 of 1
No Longer Available
Part Number:
195277
(?) Brand:
Hitachi
Manuf No:
0F14683
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
0F14683, 0F14683-

Ultrastar 7K4000


2TB, 3TB & 4TB
3.5-INCH ENTERPRISE HARD DRIVE

  • Massive space Up to 4TB for capacity-optimized enterprise applications
  • Enterprise-class reliability Field-proven second-generation design specified at 2M hours MTBF
  • Maxiumum efficiency 24% lower W/GB than predecessor

Overview

HGST Ultrastar 7K4000 is the worlds first 4TB 7200 RPM hard drive with a 2.0 million hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents the sixth-generation HGST 5-platter design, which has been field proven by top server and storage OEMs and Internet giants. Engineered for the highest quality, the Ultrastar 7K4000 is put through grueling design tests during development and must pass stringent ongoing reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime, eliminating service calls and minimizing TCO.

Specifications:
Model(s) HUS724040ALE640
HUS724030ALE640
HUS724020ALE640
Interface SATA 6Gb/s
Capacity (GB) 4TB / 3TB / 2TB
Sector size (variable, Bytes/sector) 512e
Max areal density (Gbits/sq. in.) 446
Performance
Data buffer (MB) 64
Rotational Speed (RPM) 7200
Interface transfer rate (MB/sec, max) 600
Sustained transfer rate (MB/sec, typ.) 171
Seek Time (read, ms, typical) 8.0
Reliability
Error Rate (non-recoverable, bits read) 1 in 1015
MTBF (M hours) 2.0
Load/Unload Cycles 600,000
Availability (hrs/day x days/wk) 24x7
Acoustics
Idle (Bels) 2.9
Power
Requirement +5 VDC(+/-5%) +12 VDC (+10%/-8%)
Requirement: Start-up (W, peak, max) 1.2 (+5V), 2.0 (+12V)
Requirement: Read/Write (W, avg) 11.4
Unload idle (W) 5.7
Physical size
Z-height (mm) 26
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, max) 690
Environmental (operating)
Ambient temperature 5 to 60 C
Shock (half-sine wave) 70
Vibration (5 to 500 Hz) 0.67 (XYZ)
Environmental (non-operating)
Ambient temperature -40 to 70 C
Shock (half-sine wave) 300


No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.
