| Print process |
| Print method |

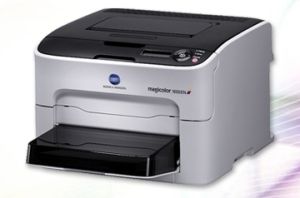

Desktop full colour A4 laser beam printer |
| Print Speed |
A4: Colour up to 5 ppm
Mono up to 20 ppm
|
| First page out |
13 seconds monochrome
22 seconds colour |
| Warm-up time |
Average 45 sec. |
| Max. resolution |
PhotoART 9600 (600 dpi x 600 dpi x 4 bit) |
| Print volume |
Recommended: 500 pages per month (average)
|
| Hardware and software capabilities |
| Processor |
400 MHz (Zoran Quatro 4230) |
| Memory |
256 MB standard |
| Printer emulation(s) |
PCL 5c/e, PCL 6 (XL 2.1), HPGL/2, PostScript 3 |
| Printer management |
PageScope NetCare Device Manager
PageScopeWeb Connection
PageScope Network Setup
PageScope EMS Plug-in
PageScope Plug and Print
PageScope NDPS Gateway
PageScope Direct Print |
| Colour simulations |
SWOP, Commercial Press, Eurocolor, DIC, TOYO |
| Fonts |
146 standard PostScript fonts
97 PCL scalable fonts
53 Symbol sets
10 standard line printer fonts |
| Interface support |
10-Base-T/100-Base-TX Ethernet, USB 2.0 |
| Operating system compatibility |
| Operating systems |
Windows 2000, Server 2003 (32/64), Server 2008, XP (32/64), Vista (32/64)
Macintosh OSX 10.2 or later, OSX Server 10.2 or later, OSX 10.5)
Linux Redhat v.9.0, SUSE v.8.2 |
| Paper handling |
| Paper input |
Standard: 200 sheet multi manual tray (magicolor 1650EN, magicolor 1650EN-d and magicolor 1650EN-dt)
500 sheet lower paper feeder (magicolor 1650EN-dt)
|
| Paper output |
Standard: 100 sheet face down output tray
Optional: 500 sheet lower paper feeder
|
| Media sizes supported |
A4, A5, letter, legal, envelope C6, envelope DL, B5, custom size 92 - 216 mm x 184 - 356 mm |
| Duplexer sizes supported |
A4 |
| Printable area |
Approx. 4.2 mm from all edges |
| Paper weights |
Plain paper (60 - 90 g/m)
Recycled paper (60 - 90 g/m)
Thick paper 1 (91-163 g/m)
Thick paper 2 (164 - 209 g/m) |
| Print media |
Plain paper, recycled paper, envelope, labels, postcard, thick paper, letterhead |
| Physical |
| Dimensions (W x D x H in mm) |
magicolor 1650EN: 396 x 380 x 275 mm
magicolor 1650EN-d: 396 x 435x 337 mm
magicolor 1650EN-dt: 396 x 565 x 392 mm |
| Weight |
magicolor 1650EN: 15.1 kg
magicolor 1650EN-d: 19.3 kg
magicolor 1650EN-dt: 22 kg |
| Electrical |
| Input voltage range |
220 ~ 240 V ( 10 %) |
| Frequency |
50/60 Hz ( 3 %) |
| average during printing |
< 470 W (colour)
< 510 W (monochrome) |
| Standby |
< 200 W |
| Energy Save |
< 18.5W |
| Environmental |
| Temperature |
Operating: 10 to 35C
|
| Humidity |
Operating: 15 to 85 %RH
|
| Noise Level |
Operating: < 49 dBA (colour)
< 50 dBA (monochrome )
Standby: < 29 dBA
|
| Regulatory/Safety conformity |
Energy Star, Doc, CE Marking, GS, EMC, WEEE, EcoMark |
| Consumables |
| Pre-installed |
Toner: Cyan, magenta and yellow toner yield up to 500 pages
Black toner yield up to 1,000 pages
Imaging unit (waste toner bottle included):
Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages |
| Replacements, Standard |
Toner: Cyan, magenta and yellow toner yield up to 1,500 pages
Imaging unit (waste toner bottle included):
Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages |
| Replacements, High Capacity |
Cyan, magenta, yellow and black toner yield up to 2,500 pages |
| Maintenance parts |
| Fuser unit: |
Yield up to 50,000 sheets |
| 2nd transfer unit |
Yield up to 50,000 sheets |
| Warranty period and conditions |
| Warranty |
1 year on-site warranty (within EU; local law applies) |
