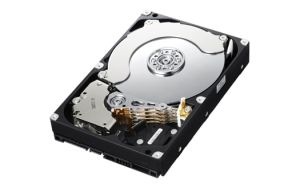

Samsung 2000GB (2TB) 5400rpm Serial ATA-II-300 HDD w. 32MB Cache (HD204UI) EcoGreen

IMG 1 of 1
No Longer Available
Part Number:
152482
(?) Brand:
Samsung Web Site
Manuf No:
HD204UI
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HD204UI, 1245703, 8808993089697
HD204UI

Spinpoint F4EG

Capacity : 2TB
Interface : Serial ATA 3.0 Gbps
Buffer memory : 32 MB

Features

667GB Formatted Capacity Per Disk
Serial ATA 3.0Gbps Interface Support
Improved recording stability over temperature with PMR
Advanced dynamic FOD control for best data integrity
Intelligent compensation of external disturbance
SATA Native Command Queuing Feature
Device Initiated SATA Power Management
Shock & Rotational vibration sensor
Environment friendly product with RoHS compliance
Improved performance with dual-ARM based firmware
ATA S.M.A.R.T. Compliant
ATA Automatic Acoustic Management Feature
ATA 48-bit Address Feature
ATA Device Configuration Overlay Feature
NoiseGuard
SilentSeek

Specifications

Drive Configurations

Drive Configurations
Capacity * 2TB
Interface Serial ATA 3.0Gbps
Buffer DRAM Size 32 MB
Byte per Sector 4K Sector with Emulation

Performance Specifications

Performance Specifications
Average Seek time(typical) 8.9 ms
Data Transfer Rate / Media to/from Buffer(Max.) 250MB/sec
Data Transfer Rate / Buffer to/from Host(Max.) 300MB/sec
Average Latency 5.52 ms
Drive Ready Time(typical) 13 sec

Reliability Specifications

Reliability Specifications
Non-recoverable Read Error 1 sector in 1015bits

Acoustics

Acoustics
Idle 2.5/2.6 Bel
Performance Seek 2.8/2.9 Bel

Environmental Specifications

Environmental Specifications
Temperature / Operating 0 ~ 60 C
Temperature / Non-operating -40 ~ 70 C
Humidity(non-condensing) / Operating 5 ~ 95 %
Humidity(non-condensing) / Non-operating 5 ~ 95 %
Liner Shock(1/2 sine pulse) / Operating 70 G
Liner Shock(1/2 sine pulse) / Non-operating 300 G
Altitude(relative to sea level) / Operating -1,000 to 10,000 ft
Altitude(relative to sea level) / Non-operating -1,000 to 40,000 ft

Power Requirements

Power Requirements
Voltage +5V5%, +12V10%
Spin-up Current (Max.) 2.0A
Seek (typical) 5.7W
Read/Write (typical) 6.3W
Idle (typical) 5.1W
Standby (typical) 1W
Sleep (typical) 1W

Physical Dimension

Physical Dimension
Height (Max.) 26.1 mm
Width 101.6 mm
Length 147.0 mm
Weight (avg.) 650g


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.
