 CPU
AMD Phenom/Athlon/Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
FSB
HyperTransport 3.0 supporting speed up to 2600MHz
- AM2 CPU supports HyperTransport 1.0
- AM2+ CPU supports HyperTransport 3.0
Chipset
AMD 790X and SB600 Chipset
|
|
|
Main Memory
Supports Dual DDR II 533/667/800
- 4 DDRII DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.
|
|
|
Slots
1 mazarine PCI Express x16 slot with x16 operation(PCI Express Bus SPEC V1.0a compliant)
1light-blue PCI Express x16 slot with x8 operation (PCI Express Bus SPEC V2.0 compliant)
When2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will autoarrange form x16/ x0 to x8/ x8. Do notuse the light-blue slot whenonly one PCI Express x16 card is installed.
1 PCI Express x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface.
|
|
|
|
|
|
|
Audio
Chipset integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
|
|
|
LAN
Realtek PCI-E GbLAN controller 8111B
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
|
|
|
Internal I/O Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
-4 x Serial ATA II connectors
- 1 x ATA133 HD connectors
- Clear CMOS jumper
- 1 x SPDIF-out header (optional)
- 1 x IEEE1394 connector support additional 1 ports (optional)
- 1 x TPM module header (optional)
MSI Reminds You...
The floppy disk cable will be optional. |
|
|
|

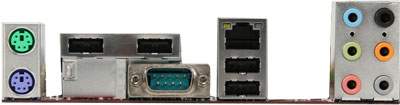

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse - 1 xSerial port - 1 x 6 in 1 audio jack - 4 x USB 2.0 ports -1 x RJ45 LAN jack -1 x eSATA port (optional) - 1 x IEEE1394 Port(optional)
|
|
|
Dimension
30.5cm(L) x 22.0cm(W) ATX Form Factor
Mounting
6 mounting holes.
|
|
|
Product Accessories
MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package. |
|
