All stock codes associated to this product
123LFE653KR, 123-LF-E653-KR, 21EP55LE, 21E-P55LE
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Passive Heatsink
Consist of a metal heatsink.
On-Boad Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP/Vista Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.

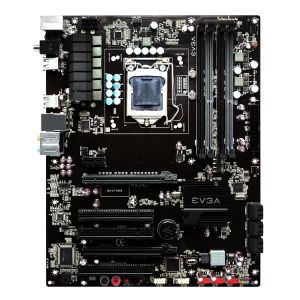

Specifications
Performance Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory 4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 1600MHz+
Expansion Slot 3 x 32-bit PCI, support for PCI 2.1
Storage I/O x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals 8 Channel High Definition
1 x 10/100/1000
Multi I/O 1 x PS2 Keyboard
14 x USB2.0 ports (8 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm
