Network Connections/Speeds
- Wired LAN: 10/100 Mbps Ethernet, RJ-45
- Supports external 802.11a/b/g/n wireless module
Security
- Hardware-based Wired Equivalent Privacy (WEP) 40/64-bit & 128-bit encryption
- Wi-Fi Protected Access (WPA2-PSK, WPA-PSK)
- Push N Connect makes connecting to your secure network simple and fast using Wi-Fi Protected Setup (WPS)
Standards Compliance
- Windows Media Player 11 Media Sharing
- SMB networking (includes Macintosh)
- NFS networking
Digital Media File Formats
- MP3 up to 320 Kbps or variable bit rate (VBR)
- WMA8 and WMA9 files up to 192 Kbps or variable bit rate (VBR)
- WMV9 up to 1080p (to 40 Mbps)
- Internet radio (streaming MP3)
- Video codecs: MPEG 1/2/4 SD; MPEG-2 HD HP@HL to 40 Mbps; MPEG-4 Part 2 HP@HL to 10 Mbps (Xvid); H.264 HP@HL 4.1, VC1/ WMV9HD to 1080p 40 Mbps
- Video file formats: AVI, DivX, Xvid, WMV9, MOV, M4V, VOB, MPG, MP1, MP2, MP4, ISO, IFO, MKV, TS, M2TS, PS
- Audio formats: MP3, WMA, AAC, FLAC, WMA-Pro, M4A, M4P, Dolby Digital, DTS Passthrough, PCM, LPCM, WAV (multichannel to 192 KHz)
- Photo formats: JPEG, BMP, PNG, TIFF
- Playlist formats: WPL, ASX, WAX, WVX, PLS, M3U, RMP
- Subtitle formats: SRT, SUB, SMI, TXT, MKV SSA, M2TS PGS
Physical Specifications
- Dimensions (HxWxD): 50.8 x 431.8 x 254 mm (2 x 17 x 10 in)
- Weight: 2.5 kg (5.56 lb)
Power
- Digital Entertainer Express can accept 100-240V, 50-60 Hz, 2.5A maximum
- Power-saving active and passive standby modes

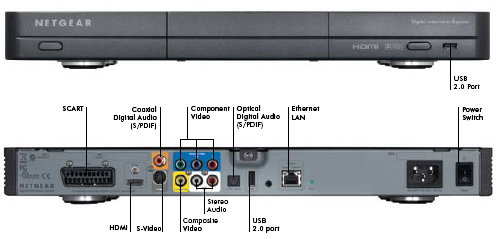

Input/Output
- HDMI for A/V output
- RCA connector for composite video output
- RCA connectors for component video output (high-definition support)
- Digital audio output S/PDIF (coaxial/optical)
- Stereo RCA audio ports
- USB 2.0 mass storage interface
- 2x USB 2.0 port
- Ethernet port
- S-Video port
- SCART composite and RGB for regions that require it
Package Contents
- Digital Entertainer Express (EVA9100)
- Infrared (IR) remote control (2 AA batteries included)
- Power cable, localized to country of sale
- Ethernet cable
- RCA stereo-audio/composite-video cable
- Installation guide
- Resource CD
Warranty
*Basic technical support provided for 90 days from date of purchase.
Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
It is the responsibility of users to ensure that they have the necessary rights to access and use third party content, which may require the payment of a subscription fee. NETGEAR does not guarantee the availability of any content or services or assume any responsibility for a users access thereto. Although the media formats listed herein are supported, NETGEAR does not warrant full compatibility, accessibility or proper playback of such files. Codecs and formats subject to change without notice, please check www.netgear.com for most current list. This device is packaged with a limited warranty, the acceptance of which is a condition of sale.
Free trial and special discount with Digital Entertainer Express purchase. The term of the trial period may be found at the Digital Entertainer Express product site located within www.netgear.com/playon. Support of online sites subject to PlayOn terms and conditions. Netflix support requires an existing subscription to the Netflix service.
iPod Touch not supported. For indoor use only.
System Requirements
- Microsoft Windows XP, Windows Vista, or Mac OSX 10.4 or higher
- Minimum Intel Pentium 500 MHz processor, 128 MB memory, and 20 MB free disk space on at least one computer or storage device
- Broadband Internet service (recommended)
