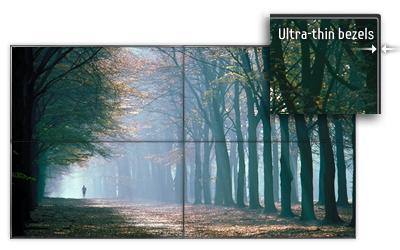

Impossible-to-Ignore Video Walls

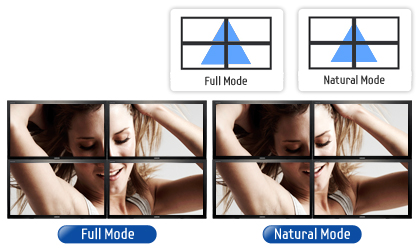

Create impossible-to-ignore video walls up to 5 monitors wide by 5 monitors high. Natural mode correction compensates for the bezel, for distortion-free displays.
Display
Screen Size
Screen Size
LCD monitors are offered in a variety of sizes
46"
Brightness
Brightness
The amount of light emitting from a display or projection device. The brightness of projector is measured by ANSI lumens.
700
Contrast Ratio
Contrast Ratio
The screen images will become sharper as the contrast level rises. .
4.000:1 (DC 30.000:1)
Resolution
Resolution
Screen resolution is measured in pixels, or picture elements.
1920 x 1080
Response time
Response time
The amount of time it takes for a pixel on an LCD panel to go from inactive (black) to active (white) and back to inactive (black) again.
8 ms
Viewing Angle (Horizontal/Vertical)
178 / 178
Color Support
16.7 mil.
Signal input
Video Signal
Video Signal
Input signal that Monitor can get from devices such as PC, Audio, AV devices
Analog RGB, DVI -D, Composite, HDMI
Sync. Signal
Sync. Signal
Type of sync that a monitor can support. Sync is seperated in both Horizontal and Vertical.
Separate H/V,Composite, SOG
Connector
Connector
D-Sub is a connector whose male end has a "D" shaped raised shield that protects the connecting pins. A D-Sub connector is usually a 15-pin or 9-pin connector with each pin corresponding to a different wire or signal within the cable. DVI-D is a digital connector that accepts DVI signal input from a computer. DVI-I is a digital connector on the monitor that accepts both DVI and analog signal input from a computer. A DVI-I connector provides interoperability with widespread current analog systems and the increasing number of computers with DVI compliant digital output.
D-Sub,DVI-D, CVBS, BNC(Component, PC), HDMI
Power
Power Consumption
Power Consumption
The electrical energy over time that must be supplied to an electrical appliance to maintain its operation.
320 W
Stand By Power (DPMS)
Stand By Power (DPMS)
(Display Power Management Signaling) An association that promotes the standardization of signals transmitted by computers in order to achieve less power expenditure by monitors.
< 5 W
Type
Internal
Features
Plug & Play
Plug & Play
Trouble-free installation of components to a computer. Samsung monitors support DDC1/2B or DDC 2B for Plug & Play compatibility.
DDC 2B
Mac compatibility
Yes
Multimedia Speakers
Multimedia Speakers
Sometimes Samsung offers optional speaker.
10 w x 2 (Built-in)
Wall-Mount
Mounting Kit Available (WMN - 5770D)
Cabinet Color
Black
Accessory
Quick Setup Guide, Warranty Card, User's Guide, D-Sub Cable, Power Cord, Remote Control, Batteries, BNC to RCA Adaptor Jack
Special Features
Special Features
Unique sales point of product. It can be design, technology or spec

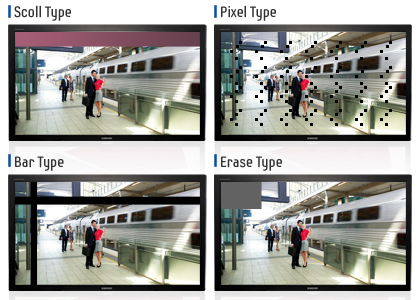

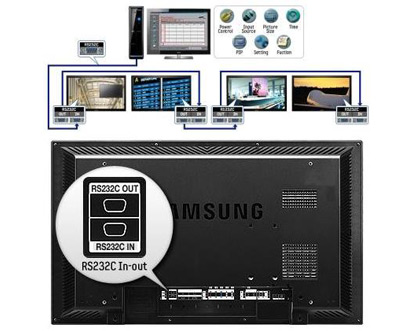

Anti-image retention, Video Wall upto 5X5, Safety Lock, PIP/PBP, RS-232C,Wired Remote IN/OUT, Lamp Error Detection, Temperature Sensor, Built-in Fan, IR In/Out, Video Wall Processor, MID INterlocking Kit Compatible, UD (Ultra-Definition) Software Solution
Dimension
Product Dimension(With stand, WxHxD)
Product Dimension(With stand, WxHxD)
Product dimension with stand (Width x Height x Depth). Measured in milimeter
41.3" x 26.1" x 12.2"
Product Dimension (Without Stand, WxHxD)
41.3" x 23.7" x 4.65"
Shipment Dimension (WxHxD)
45.2" x 27.8" x 13.0"
Weight
Product Weight
Product Weight
The weight of product without packing. Measured in kilogram
60.9 lbs.
Shipment Weight
Shipment Weight
The weight of product with packing. Measured in kilogram
71.5 lbs.
Stand
Type
Stand Available (STN - L3257D)
