All stock codes associated to this product
, 24DDVM6600NT441, 24DDVM6600N-T441
TVIX HD M-6600A/N
Simply the best multimedia player ever
It allows you to enjoy the newest Full HD videos and oncoming audios. Moreover, on top of the lossless music files playback ability, it is the most advanced multimedia player that also allows you to search digital pictures as thumbnails and view them as a slideshow. With its wireless LAN and network support, this capability is expanded to your local network and internet.
Universal Jukebox That Supports Most Of The Media Formats
By supporting superb H264 video compression & MKV container format, you can enjoy full HD videos. On top of this, oncoming HD media backup files as well as DVD backup files are supported. It functions as a universal jukebox that allows you to enjoy videos and music of ultimate quality through full HD picture and High-Quality audio output.
HDMI 1.3, 11n Wi-Fi and UPnP support
HDMI 1.3 support allows you to set up and use video and audio signals conveniently with just one cable. Wired/wireless network connection is easily enabled with uPnP support, and you can easily play various multimedia files on the network. M6600 has built-in Wi-Fi 11n module, so you can enjoy all the contents on your PC or NAS storage with wireless connection.
Supporting H.264 codec (Profile 4.1), MKV and RMVB
Built-in 802.11n wireless module. (M6600N only)
Playing newest lossless audio files (FLAC 24bit/96Khz, WAVE PACK)
Supporting IMS service such as YouTube, Picasa, RSS Feed (Internet Media Service)
Supporting HDMI 1.3 through a single cable for both digital video and audio signals
Memory reader for SD/ MS card (Copy and paste)(M6600N only)
Supporting UPnP function for easy connection to the network.
Data management by NAS function
Easy Upgrade of Recording HDD to any capacities available
| Best Full HD video experience with least capacity |
H.264 and MKV
|
H.264 is a highly efficient high-definition video compression technology used most frequently lately, and it is used for HD broadcasts, HD videos, HD DVDs and Blu-rays. If you convert a video file into this format, the size of the file gets reduced while the high-definition quality is maintained, which allows you to obtain an overwhelming video quality with the least storage capacity. MKV is a format that can store this high video quality, and its an oncoming generation format that is compatible with high-definition picture and sound. TVIX nicely plays Full HD videos that are saved as H.264 in MKV.
| Wired connection for Full HD and wireless for MKV |
Wired & Wi-Fi network support
|
Through the network connection (wired/ wireless), you can appreciate all contents stored in your PC HDD without transferring to your TVIX HDD. M6600 can play high bit rated HD movie clips (up to 60mbps) without jittering in case of wired connection.
And when using the 802.11n Wi-Fi module, it plays most general HD movies (less than 18mbps)
| A single cable for newest digital video and High-Quality audio |
HDMI 1.3a
|
M6600 supports HDMI 1.3 output compatible with most of newest HDTVs and receivers on the market. With a single HDMI cable, you can watch 1080P Full HD digital video and listen to the High-Quality audio.
| Internet video clips, pictures and weather search |

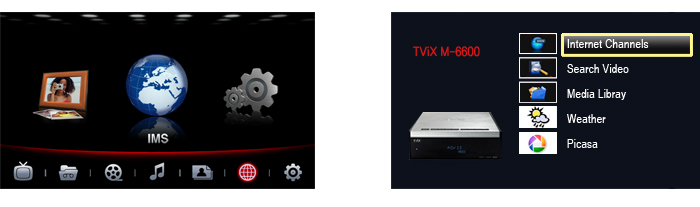

IMS: Internet Media Service
|
YouTube, Picasa, Internet News and Weather, your PC is not only one to enjoy those kinds of internet media service. Now M6600 lets you make it on bigger and better screen.
| Movie playback through network |
UPnP, NAS: Network Attached Storage
|
Forget about configuration of your IP address and just go to the network through UPnP. Shared files including Full HD files on the UPnP can play without problems by wired or wireless connection. It also supports famous network protocols such as NFS, SAMBA and FTP, so you can connect your network whatever protocol you want.
As SAMBA server service is available, M6600 is also able to be used as a network storage device for those who are accustomed to Windows Search. And its possible to set a shared folder for users on the same network, and you can use it like a external hard disk drive of your PC.
| Playback of lossless audio files |
|

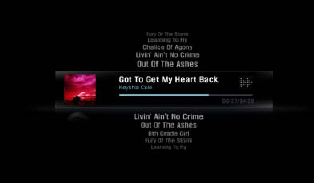

FLAC, Wave Pack 24bit/ 96Khz
|
|
|
M6600 supports lossless audio files up to 24bit/ 96Khz. As the TVIX plays these formats directly, you can appreciate high quality of audio sound close to the original one.
|
|
| File copy and paste without PC |
|

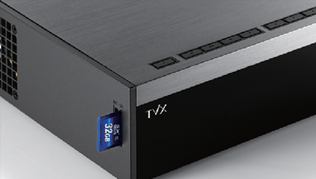

Card reader installed
|
|
|
You dont need to manage all sorts of TVIX HDD files by your computer. M6600 allows you to copy, delete and move the files through external USB or the network. In addition, through the card reader installed on a side of the TVIX, you can play, copy, move and delete what you took by your digital camera and camcorder.(M6600N only)
|
|
 |
 |
| HDD Exchange cannot be easier than this |
|

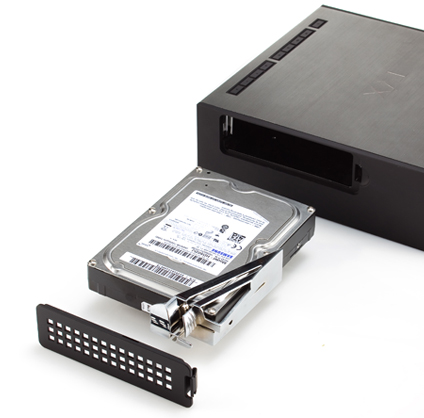

Innovative HDD exchange
|
|
|
The new HDD bracket was innovatively designed to switch one to another in the shortest time and very convenient. Unlike the previous TVIX HDD bracket, you can assemble it to your HDD with a single screw and dont need to connect the power cable and the date cable any more. Simply open the HDD cover and push it into the TVIX, that all.
|
| Delicate High-Quality UI |
|

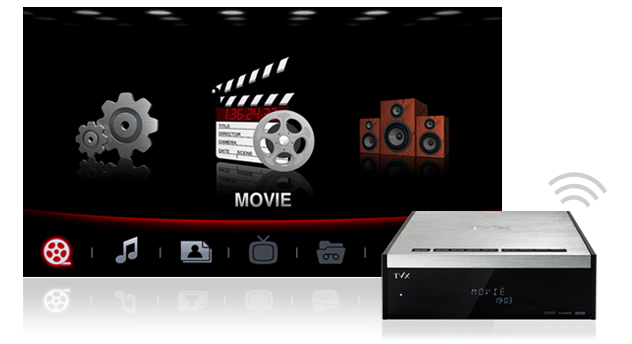

High-definition user interface
|
|
|
M6600 adapts high resolution (720p) user interface to maximize the usability and quality of subtitle. It also supports true-type vector font which maintains the quality of subtitle even when the font size is changed.
|
|
 |
| Very cool, very quiet |
Low noise, low heat and low power consumption
|
In order NOT to disturb your time with TVIX, M6600 adapts aluminum top case, 60mm ball-bearing fan and internal temperature sensing mechanism. Thanks to the hardware design, working noise is almost eliminated and the working temperature is very stable. In addition, its also designed for low power consumption in stand-by mode (less than 0.5W).
| Simple Upgrade Path to Dual Tuner PVR |
Optional dual HDTV tuners
|
You can purchase dual HDTV tuner option separately, which turns M6600 into full blown dual HD PVR. It allows you to record or schedule to record the original HD broadcasting up to two different RF channels simultaneously. It also supports time-shifting which enables you pause the live broadcasting for a while and watch it later. So you dont have to miss your favorite shows and HD broadcasts.
Main Chipset
Memory
Main: 256MB DDR SDRAM / Flash: 128MB
Maximum Resolution
Video Format (Containers)
MKV, AVI, VOB
ASF, WMV
MPEG1/2/4 Elementary (M1V, M2V, M4V)
MPEG1/2 PS: M2P, MPG
MPEG2 Transport Stream: TS, TP, TRP, M2TS, MTS, MOD, TOD
ISO, IFO
MOV(H.264), MP4
.MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2ts, .mov, .flv, .rm, .rmvb, .asf, .mts, .mpeg
Video Codec
XVID SD/HD
MPEG 1
MPEG-2 (MP@HL)
MPEG-4.2 (ASP@L5, 720p, 1-point GMC)
WMV9 (MP@HL),
H.264 (BP@L3, [email protected])
VC-1 (MP@HL, AP@L3)
RealVideo 8/9/10
FLV(H.263)
Audio Format (Container)
AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA),
PCM, AC3, FLAC (Audio track in MKV)
WAV(DTS), WAVPACK, WMA (Lossless not supported)
Ogg (Audio track in MKV except for 44.1 KHz)
Audio Codec
Dolby Digital
DTS Down Maxing
WMA, WMA Pro
FLAC, AAC, MP1, MP2, MP3, LPCM, Vorbis
Audio Pass-thru
DTS, Dolby Digital, Dolby Digital Plus
Photo Image
JPG, JPEG (Progressive JPEG not supported), BMP, PNG(Interlace not supported), GIF, TIF
Languages
English, Traditional Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Dutch, Russian, Rumanian, Bulgarian, Hebrew, Czech, Vietnamese
Subtitles
smi, smil, sub, sub/idx, srt, .ssa, .ass

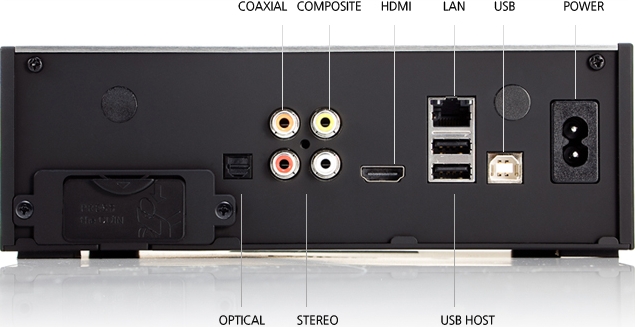

Video / Audio Output
HDMI 1.3a (Video 24 bit), Composite
Digital: Coaxial, Optical
Analog: Stereo
HDD Supported
3.5" SATA HDD only (NTFS,FAT32, SATA , HDD)
Interface
USB 2.0 Host 2 Ports (USB1/ USB2: 5V , 500 mA max), USB 2.0 Target 1 Port
Memory Card Reader: SD, SDHC, Memory Stick, Memory Stick Pro Duo
Network
10/100 Ethernet
Wi-Fi 802.11n
Network Protocol
UPnP, SAMBA Client, NFS (with Net-Share)
SAMBA server , FTP
Cooling Fan
Internal temperature sensing mechanism, 60mm low noise

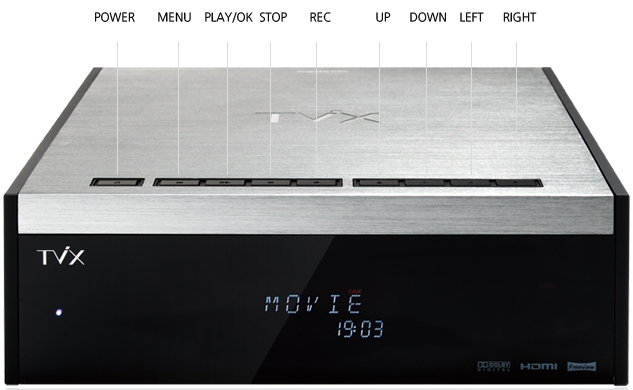

VFD Display
Playback mode, Elapsed time, Resolution (Dot Matrix 7 English characters and numbers)
POWER CONSUMPTION
Dimension
Weight
Caution
- HDD is not included.
- Some streaming couldnt play according to wireless setup environment.
- WMV (WMV9 only but Advance Profile is not supported), WMV7, WMV8 are not supported.
- MPEG4, XVID-GMC are not supported.
- 2 Channel Down Mix without external decoder amplifier.
- Some files might not be played even if the file format is correct and the codec are supported.
- For more detailed information, please visit the supported codec section in FAQ before you purchase the product
