ASUS BR-HD3 Wireless HDMI Kit - 5GHz Wireless N, HDMI Type A, Up to 1080i, Up to 10m Range

IMG 1 of 5
No Longer Available
Part Number:
143166
(?) Brand:
ASUS Web Site
Manuf No:
BR-HD3
BRHD3
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
BRHD3, BR-HD3

BR-HD3 Wireless HDMI Kit

Be Entertained Everywhere

BR-HD3 opens up a world of entertainment possibilities with wireless HD connectivity.

Enjoy HD Entertainment Anywhere in Your Home

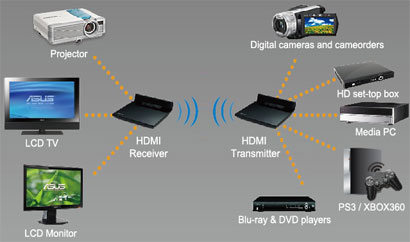

The new standard in wireless HD entertainment has arrived. The BR-HD3 delivers audio/visual data to display devices anywhere in your home. For the most exciting and rich visuals with added convenience, use the wireless HDMI kit to connect various digital equipment such as HD set-top boxes, Blu-ray and DVD players, media PCs, digital cameras, and even gaming consoles to your TV, LCD monitor, or projector.

  • Wireless High Definition entertainment
  • 30 meters of ultra-wide coverage
  • Enjoy HD video anyway in your home

Wide Area Transmission

The BR-HD3 supports a range of 30 meters for broadcasting signals from various digital players as its wireless networking technology that supports WiFi 802.11g data transmission. Operating over the 5 GHz radio frequency band, the kit uses a pair of HDMI Receivers and Transmitters to transmit lossless data between them. As a result, LCD monitors and TVs can display true-to-life, high-definition images without messy wires.

All-round Home Enjoyment

Enjoy watching HD content in your own room, even if your HD set-top box or Blu-ray player is located in another area of your home like your living room. The BR-HD3 lets you do this because its unique wireless kit can broadcast signals without a direct line of site. You can place your receiver and transmitter up to 10 meters apart for the most convenient wireless connectivity.

Study Room Living Room

Specifications

Tx I/O 1 x HDMI input (X19 pins, type A)
Rx I/O 1 x HDMI input (X19 pins, type A)
Resolution support 640 x 480
  • 480i , 720x480i/60Hz, 4:3 / 16:9
  • 480p, 720x480p/60Hz , 4:3 / 16:9
  • 576i , 720x576i/50Hz , 4:3 / 16:9
  • 576p, 720x576p/50Hz, 4:3 / 16:9
  • 720p, 1280x720p/60Hz ; 1280x729p/50Hz , 16:9
  • 1080i, 1920x1080i/60Hz ; 1920x1080i/50Hz, 16:9
Color space YCbCr 4:2:2, 8bit
Audio support 16-bit Stereo linear PCM from HDMI I2S at 32, 44.1, or 48KHz
Antenna 2 x 3 MIMO
Power Adapter AC input: 100V~240V(50~60HZ); DC output: 5V 2.5A
Operating Temperature 0~35C
Standard 802.11n
Operating Frequency 5 GHz
Output Power 802.11a : 13+/-1.5dBm@54Mbps, 19+/-1.5dBm@6Mbps
802.11n : 13+/-1.5dBm@MCS7,MCS15
Receiver Sensitivity 802.11a: -74+/-1dBm@54Mbps, -89+/-1dBm@6Mbps
802.11n: -72+/-1dBm@MCS7,15 20MHz, -69+/-1dBm@ MCS7,15 40MHz
Data Transfer Rates 802.11a: 6,9,12,18,24,36,48,54Mbps
802.11n: 300Mbps (MCS15, 40MHz)
Operation Channel 5GHz
Encryption AES
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
