No Longer Available

Part Number:
146961
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
JW-A61PM-D3
JWA61PMD3
Shipping Weight:
2 KG (Includes product packaging)

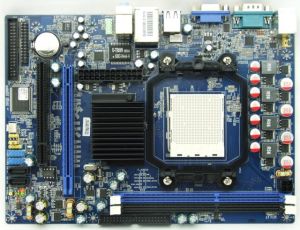

JW-A61PM-D3

  1. Socket AM3 for AMD Phenom II/ Athlon II/ Sempron processors
  2. 2,000 MT/s HyperTransport
  3. Built in GeForce 6150SE Graphics
  4. Dual Channel DDR3 1333/1066/800 x2 DIMMs, Max 8GB
  5. Realtek 6 Channel High-Defintion Audio
  6. Realtek 10/100 Mbps LAN



Specification

Processor

  1. SocketAM3 for AMD Phenom II/ Athlon II/ Sempron processors (*Note: Support up to max. 95W TDPprocessors.)

Chipset

  1. NVIDIA  GeForce  6150SE + nForce  430
  2. Realtek 8103EL 10/100 Mbps Ethernet Controller
  3. Super I/O: Winbond W83627DHG-P chip
  4. Realtek ALC 662 6-Channel HD Audio Codec
  5. 8M bit flash ROM

HyperTransport

  1. HyperTransport 1.0, 2000 MT/s

Memory

  1. Type:Dual Channel DDR3 1333/1066/800 MHz memory support
  2. Max capacity:8GB
  3. DIMM slots:2

Internal I/O

Connectors

  1. 1 x24-pin ATX power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 xFloppy drive connector
  4. 1 xIDE connector (for 2 PATA devices)
  5. 2xSATA II 3Gb/s connectors (Support RAID 0, 1)
  6. 1 xCPU fan connector
  7. 1xSystem fan connector
  8. 1 xFront panel header
  9. 1 xFront audio header
  10. 1xS/PDIF Out header
  11. 2xUSB 2.0 header for additional4 USB 2.0 ports (by cables)
  12. 1 x Buzzer header
  13. 1 x Printer port (LPT) header

Expansion Slots

  1. 1 xPCI-E x16slot
  2. 1x PCI slot

Rear Panel I/O

  1. 1 xPS/2 Mouse port
  2. 1 xPS/2Keyboard port
  3. 1 x Serial port
  4. 1 x D-Sub port
  5. 4x USB 2.0 ports
  6. 1x RJ45 LAN port
  7. 3x Audio ports (Line In / Line Out / MIC In)

Form Factor

  1. Micro-ATX
  2. 170mm x 235mm

H/W Monitoring

  1. Winbond W83627DHG(-P)
  2. System health status auto-detect and reported by BIOS

BIOS

  1. 1x 8Mbit flash ROM,Award BIOS

Bundle Software

  1. Driver and Utility CD/DVD

Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.


No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (J&W) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
