All stock codes associated to this product
90LM50101501202A, AU25026A

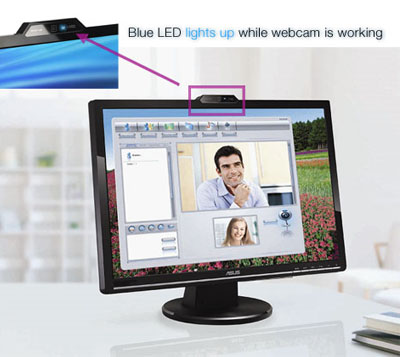

Built-in high quality webcam is easy for popular instant messaging applications on 19 widescreen.

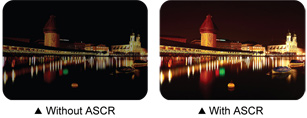

ASCR(ASUS Smart Contrast Ratio) 5000:1
Provides the high contrast ratio of 5000:1, which can dynamically adjust contrast between black and white to provide sharper and brighter images - especially during games and movies.
Display 4:3 Contents Perfectly on Widescreen
Aspect Control Technology supports Full & 4:3 aspect mode selections to show 16:10(wide) and 4:3 video contents without image distortion!!
Splendid Video Intelligence Technology
Splendid Video Intelligence Technology is built upon a color engine that automatically analyzes and determines the nature of the users current task, thereafter adjusting the displays parameters accordingly to ensure the best possible color and image fidelity.
With the five preset modes (Standard, Game, Scenery, Night View and Theater) of Splendid Video Intelligence Technology, you will enjoy optimized colors for various multimedia entertainment scenarios.
Standard Mode allows you to view documents and browse websites comfortably with optimized colors and contrast.
Game mode adaptively brings up dark, hard-to-see areas while leaving the well-lit areas untouchedallowing you to see your enemies lurking in dark corners without washing out the colors as a whole.
Theater mode simulates a theater experience by enhancing the contrast and color saturation of the imagedelivering livelier and vivider visuals for greater immersion.
Scenery mode increases the brightness range and contrast gradations and selectively tweaks the color saturation of key elements such as blue skies and green fields to make for more captivating land and seascapes.
Night View mode breathes the beauty back into night vistas by smartly raising the Y-Luminance signal to highlight poorly-lit detailscapturing the scenes beauty in crisp and vibrant fashion.
3 preset skin tone
Select between natural, reddish and yellowish skin tone presets for more natural-looking human subjects on screen.
Stylish and User-friendly Design for Modern Sophistication
- The glossy piano-black and slim frame front bezel exudes the most enduring classics of style.
- Convenient key controls for functional set-up in the multi-language OSD.
- Cable manager gets rid of tangling cables and wires.
-
- Easily detachable base for wall mount.
- VESA Wall Mount Standard (100 x 100 mm ).
- 25 ( forward 5, backwards 20 )Tilting Angle.
- KENSINGTON Security Lock.
- Built in stereo speakers.
Complete After-Sale Service
- 3-year system warranty
- 3-year panel warranty
- Free pick-up service ( in specific countries)
Specifications
| TFT-LCD Panel |
Panel Size: 19 Wide Screen
True Resolution: WXGA+ 1440x900
Pixel Pitch: 0.285mm
Brightness(Max): 300 cd/
Contrast Ratio (Max.): 5000 :1 (ASCR)
Display Color: 16.7M
Viewing Angle (CR10): 170(H)/160(V)
Response Time: 5 ms
|
| Video Features |
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes (5 modes)
Skin-Tone Selection (3 mode)
Webcam(built-in) 1.3M Pixel(Fixed)
Color Temperature Selection(5 modes) |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment
|
| Input / Output |
PC Input: D-Sub
PC Audio Input: 3.5mm Mini-jack
|
| Signal Frequency |
Analog Signal Frequency: 24~82kHz(H)/ 50~75 Hz(V)
|
| Power Consumption |
Power Consumption < 45 W
Power Saving Mode < 2 W |
| Mechanical Design |
Chassis Colors: Black
Tilt: +20~ -5
VESA Wall Mounting: 100x100mm
|
| Security |
Kensington lock
|
| Dimension (WxHxD mm) |
Phys.Dimension(WxHxD): 442x386x210mm
Box Dimension(WxHxD): 493x 417x139mm
|
| Weight |
Net Weight (Esti.): 3.7 kg
Gross Weight (Esti.): 5.7 kg |
| Accessory |
VGA cable
Audio cable
Power cord
USB cable
Quick start guide
support CD (LifeFrame2)
warranty card
|
| Regulation Approval |
UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, PSB, EK, J-Moss, RoHS, WEEE, WHQL |
