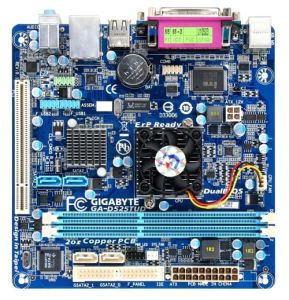

Gigabyte GA-D525TUD Motherboard

Introduction

GIGABYTE GA-D525TUD is designed to unleash the power of the new Intel  Atom processor D525 which supports the new revolutionary twochip layout. Featuring the Intel 45nm Atom Dual-Core D525 processor integrated and DDR3 memory supported provides an easy-to-use flexibility and cost effective platform. Enhanced with all solid capacitors design, GA-D525TUD brings small yet powerful and stable platform.

Intel  Atom Processor D525

The new generation Intel Atom processor for entry-level desktops continues to provide innovation through integrated graphics built directly into the CPU, enabling smaller and more energy efficient designs.

Intel  NM10 Express Chipset

The Intel  NM10 Express Chipset provides additional flexibility and upgradability with two slots of single channel DDR3 memory at 800 MHz supporting up to 4GB maximum.

Ultra Durable 3 Copper Cooled Quality

GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more

3x USB Power Boost

GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTEs unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

Dual DIMM DDR3 800

Experience the advanced technology of DDR3 800 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information.

DualBIOS - Patented Dual Hardware BIOS Protection

DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.

Gigabit LAN connectivity

The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.

Serial ATA 3.0 Gb/s

The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system.

Intel  High Definition Audio

Intel  High Definition Audio enables premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms.

ErP Lot 6 support

The ErP (as known as Energy-Related Products Directive) is part of new European Union's environment regulations. ErP established is based on the concern of environmental issues regards electronic devices been gained popularity and how to improve energy efficiency for better and greener life. GIGABYTE presents standard motherboards to help you effectively improving system performance and saving more energy.
