Socket |
|
CPU |
|
Automatic Fan Control |
|
Notes |
|
| Intel |
775 |
Celeron D |
Supports all speeds |
- |
| Pentium 4 |
| Pentium D |
| Core 2 Duo |
| Core 2 Quad |
| Core 2 Extreme |
| AMD |
AM2 |
Sempron |
Supports all speeds |
AMD sockets
require Stock
Retention Frame |
| Athlon 64 |
| Athlon 64 X2 |
| Athlon 64 FX |
| 754 |
Sempron |
Supports all speeds |
| Athlon 64 |
| 939 |
Athlon 64 |
Supports all speeds |
| Athlon 64 X2 |
| Athlon 64 FX |
| Opteron |
| Dual-Core Opteron |
| 940 |
Athlon 64 FX |
Supports all speeds |
| Opteron |
| Dual-Core Opteron |
|
| |
 |
| |
 |
| |
| Dimensions |
90(L) x 124(W) x 142(H) mm |
| Weight |
Heatsink: 690g, Total (including fan): 764g |
| Base Material |
Pure Copper & Aluminum |
| Dissipation Area |
5,490 |
|
| |
 |
| |
| Bearing Type |
2 Ball-Bearing |
| Speed |
Silent Mode |
1,250rpm 30 % |
Normal Mode |
2,800rpm 10 % |
| Noise Level |
Silent Mode |
19.5dBA 10% |
Normal Mode |
35dBA 10% |
| Control Method |
PWM Control, Auto Restart |
|
| |
 |
 Type : Non-curing compound |
Capacity : 3.5g |
Specific Gravity : 2.42 |
| |
| Temperature Stability : -40C-150C (-40F-302F) |
|
 |
|
|
| |
 |
 |
| |
 |

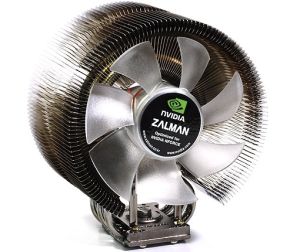

Compatible with all single and dual core CPUs for Intel Socket 775 and AMD Sockets AM2/754/939/940. |
| |
 |
Automatic Fan Speed Control feature included in the Ultra Quiet 110mm PWM(Pulse Width Modulation) enabled fan. |
| |
 |
100% copper heatsink with aerodynamically optimized tunnel design for maximum cooling efficiency. |
| |
 |
Innovative, patented, figure 8 heatpipe design for a heat transfer capacity of up to six heatpipes with the use of just three. |
| |
 |
0.2mm ultra-slim fins for minimized weight and reduced airflow resistance. |
| |
 |
Super Thermal Grease (ZM-STG1) included. |
|
|
|
| |
 |
 |
| Common Components |
| |
- One (1) CNPS9700 NT
- One (1) Thermal Grease (ZM-STG1)
- One (1) Users Manual |
| |
| Components for Intel Socket 775 |
| |
- One (1) Clip (S-Type)
- Four (4) Bolts (for installing the cooler)
- Four (4) Clip Support Fixing Bolts for Socket 775
- One (1) Clip Support for Socket 775
- One (1) Backplate for Socket 775 |
| |
| Component for AMD Socket AM2/754/939/940 |
| |
- One (1) Clip for AMD Sockets
- One (1) Clip Lever for AMD Sockets |
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
|
Korean Patent Reg. No. 10-0600448 |
| |
|
Korean Design Reg. No. 30-0403411, 0403412 |
| |
|
Patent applications pending in over 20 nations around the world including USA, EU, and Japan. |
|
| |
 |
|
The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Sockets AM2/754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the specified weight limit. Zalman is not responsible for any damage that occurs when moving a computer. |
| |
|
Excessive force exerted on the fan may damage the fan, resulting in damage to the system. |
| |
|
Avoid inserting any objects into the fan while it is in operation. |
| |
|
Check the components list and condition of the product before installation. If any problem is found, contact your place of purchase to obtain a replacement. |
| |
|
Do not ingest or make oral contact with the Thermal Grease. If ingested, get medical attention. |
| |
|
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. |
|
