NEC NP1000 LCD Desktop Projector - XGA, 3500 Lumens, 800:1

IMG 1 of 1
No Longer Available
Part Number:
70077
(?) Brand:
NEC
Manuf No:
NP1000
Shipping Weight:
9 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
NP1000, NEC1100
Build your Business with the NP1000G.

The NP1000 provides bright and clear images with 3500 lumens, vertical and manual lens shift allowing flexible projector placement and 5 optional bayonet lenses making it the perfect choice for demanding installation projects. The NP1000G provides a suite of networking technologies and asset management features making it the perfect choice for any projector installation.

Features
  • Vertical and horizontal lens shift
  • Complete line of optional bayonet style lenses (5)
  • Wired and wireless network projector
  • Advanced video processing with Contrast Enhancement and Vortex technology
  • Complete control of projector using RS-232/LAN from a control system
  • 3500 ANSI Lumens
  • XGA 1024x768 native resolution


  • High Brightness : 4000 ANSI lumens (NP2000), 3500 ANSI lumens (NP1000)
  • XGA (1024 x 768) Resolution
  • UXGA (1600 x 1200) Resolution with Advanced AccuBlend
  • Wide Variety of Optional Lenses
  • Lens Shift
  • Auto Start & Direct Power Off Function
  • Wall Colour Correction
  • Security functions

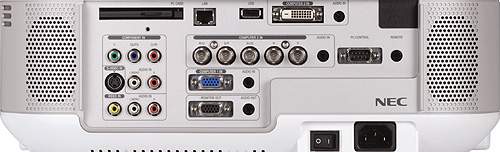

Rich varieties of input/output terminals include DVI (digital) and BNC, and built-in stereo speakers are available
Rich varieties of input/output terminals include analogue RGB, 5-core BNC, DVI (digital), video, and S-video. (The analogue RGB and BNC also support component inputs.) The 5W+5W stereo speakers are built in to provide audiovisual conditions with high image and audio qualities.
Auto Start Function/Direct Power-Off Function for instant power on/off
The power for the NP2000/NP1000 automatically turns on when the electric power source is connected to the equipment. (Auto Start Function)
The Direct Power-Off Function turns off the main power switch or disconnects the AC power supply when images are projected or the cooling fan is turning.
Security and password settings to prevent unauthorized use
Flash memory cards and USB memory serve as protection keys to prevent unauthorized use of the projector. The background logos and menu settings are also protected by passwords, so changes are made only when authorized.
Wall Colour Correction
When projecting images on coloured walls or classroom blackboards, colours and tones are corrected with a simple one-touch operation. With this feature, images are easy-to-see even if a screen is not available. The following eight colours are registered on the menu; Blackboard, Blackboard (Gray), Light Yellow, Light Green, Light Blue, Sky Blue, Light Rose and Pink.
Preset Function for adjusting and storing specific colours
The image correction feature corresponds to image sources for presentations and movies. Select the optimum mode from among six available options. The main unit stores the settings in memory.
Wireless LAN functions
High-speed, high-quality image transfer in a wireless environment by Image Express Utility 2.0 (Ver. 2.0 )
High-speed, high quality image transmissions based on NECs original compression algorithm
NECs original compression algorithm allows high-quality images to be sent over the network at high speed, from your personal computer to the projector.
Simultaneous projection by multiple projectors
Images can be sent from a personal computer to not only one projector but also to two or more projectors at the same time.
Easy Connection function for connecting wireless LAN
By using Easy Connection function*1, the complicated setting of wireless LAN can be simplified. *1 This function can be used when Windows XP is used as the OS and when you have a Computer Administrator privilege. The communication mode is set to 802.11 Ad Hoc. The Easy Connection function cannot be used with Windows 2000.
Projected images can be transferred and saved to personal computers.
When Meeting Mode is used, projected images can be sent to the personal computers of all the participants (attendants) of a Meeting. The received images can be saved to your personal computer with a memo (text data) attached.
1-click switching of presenter
When switching to another presenter during the conference, the participants (attendants) can simply click a button to switch over to the new presenter.
Central management of the projecting personal computer
Using the Training Mode allows you to use a single personal computer (Manager) to manage which personal computer (Attendant) projects. Possible operation includes switching projecting personal computers to project from, as well as temporarily terminating communication with the projector.
Specifications
Model Name NP2000 NP1000
LCD Panel*1 0.8-inch (1,024x768) p-Si TFT LCDx3 active-matrix with MLA Aspect Ratio4 : 3
Lens Manual Zoom/ Focus Zoom Ratio : 1 to 1.33/Focus (F=1.7 to 2.2) (f=24.4mm to 32.5mm) (At Standard Lens)
Shift Horizontal : max 0.1H / Vertical : max 0.5V
Projection Distance 0.89m to 15.7m (wide) / 1.2m to 20.8m (tele) (At Standard Lens)
Lamp (Eco Mode) 300W (252W) AC 280W (252W) AC
Lamp Life *2 (Eco Mode) 2,000H (3,000H)
Light Output *3 4,000 ANSI lumens (At Standard Lens) 3,500 ANSI lumens (At Standard Lens)
Contrast Ratio (full white/full black) 800 : 1
Quietness (Eco Mode) 35dB (30dB)
Net Weight Approx. 7.3kg
Image Size 30inch to 500inch (0.89m to 20.9m)diagonal (At Standard Lens)
Maximum Resolution UXGA (1,600 x 1,200) With Advanced AccuBlend
Synchronization Range Horizontal 15kHz to 108kHz (RGB : 24kHz or over)
Vertical 48Hz to 120Hz
Video Bandwidth RGB : 100MHz (-3dB)
Colour Reproduction Full Colour, 16.7 Million Colours Simultaneously
Input Terminals 3 Computer Input 1 D-Sub Mini 15pin
5 BNC		 RGBHV VGA, SVGA, XGA, SXGA, UXGA
RGB (Analog) 0.7Vp-p/75
H/V Sync 4.0Vp-p/TTL Polarity
Composite Sync 4.0Vp-p/TTL Level
Sync on G 0.3Vp-p/75 Negative Polarity
1 DVI-D RGB (Digital) T.M.D.S Specification, With H.D.C.P ,DDWG Revision1.0 Specification, Max Resolution : SXGA+/60Hz
0.5Vrms/22k or over
3 Stereo Mini Jack Stereo L/R 1.0Vp-p/75 (With Sync)
3 Component Input 1 D-Sub Mini 15pin
3 BNC
(Sharing With Computer 1&2 Input)		 Y 0.7Vp-p/75
CbCr (PbPr) 1125i (1080i), 750p (720p), 525p (480p), 525i (480i)/60Hz
Compatible signals 1125i (1080i), 625p (576p), 625i (576i)/50Hz, Progressive PAL-scan/50Hz
DVD Component Video Signal (50/60Hz)
Audio Input is Sharing With Computer1&2 Same With Computer
3 RCA pin (Green,Blue,Red) Green (Y) is Also Available for Video Input
2 RCA pin Stereo L(MONO)/R Same With Computer
2 Video Input 2 RCA pin Yellow Composite Video NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM
Green 1.0Vp-p/75
2 RCA pin Stereo L(MONO)/R Same With Computer
1 S-Video Input Mini DIN-4pin Y 1.0Vp-p/75
C 0.286Vp-p/75
Audio Input is Sharing With Video Same With Computer
1 PC Card Slot PC Card PCMCIA Type II PC Card Standard (Release 8.0)
Wirless LAN Card IEEE802.11b/g Used Image Express Utility 2.0
1 LAN Port RJ-45 100 BASE-TX/10 BASE-T, Used Image Express Utility 2.0
Output Terminals Monitor Output D-Sub Mini 15pin Selected Computer 12 or Component Input Source Signal Output
Audio Output Stereo Mini Jack Stereo L(MONO)/R Variable Output Level
Selected Computer 123, Component, Video, S-Video With Audio Signal Output
Control Terminals USB Port Type A USB Ver 1.1
REMOTE Stereo Mini Jack Wired Remote Control
PC Control D-sub 9pin RS-232C
Built-In Speaker 5W Stereo
Cornerstone Correction Horizontal Manual Approx. Max 35 degrees (Less than XGA resolution,aspect 4 : 3)*4
Vertical Manual Approx. Max 40 degrees (Less than XGA resolution,aspect 4 : 3)*4
Keystone Correction Horizontal Manual Approx. Max 27 degrees (Less than XGA resolution,aspect 4 : 3)*4
Vertical Manual Approx. Max 40 degrees (Less than XGA resolution,aspect 4 : 3)*4
Environment Operational Temperatures 5 C to 40 C,(Eco mode selected automatically at 35 C to 40 C), 20 to 80% Humidity (Non-Condensing)
Storage Temperatures -10 to 50 , 20 to 80% Humidity (Non-Condensing)
Power Requirement 100 to 240V AC, 50Hz/60Hz
Input Current 4.6A
Power Consumption 435W/365W (Eco Mode)/16W (Standby Mode)
Regulations For United States UL Approved (UL 60950-1), Meets FCC Class B Requirements
For Canada C-UL Approved (CSA 60950-1), Meets DOC Canada Class B Requirements
For Australia/New Zealand Meets IEC60950-1, AS/NZS CISPR.22 Class B
For Europe Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3), Meets Low Voltage Directive (EN60950-1, TUV GS Approved)
Dimensions (WxHxD) 399mm x 150.5mm x 358mm (Not Including Protrusions)
*1 : LCD Panel technology consists of fine picture cells with more than 99.99% of the cells being active.
*2 : Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it dose not refer to the warranty period for the lamp.
*3 : This is the brightness value when the lamp mode is set to Normal Mode and the preset mode is High brightness mode. If the lamp mode is switched to Eco Mode, the brightness will drop to about 80% in the NP2000. For the NP1000, the brightness drops to about 85%. If any other mode is selected as the preset mode, brightness may drop slightly.
*4 : When the lens shift is set to the center.
All specifications are subject to change without notice.

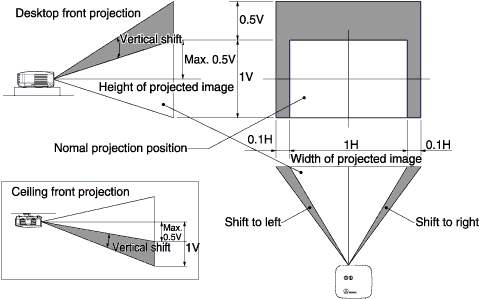

Lens Shift



*Shifting the lens to the maximum in two directions combined will cause the edges of the image to become dark or will cause some shadows.
