ThermalTake Soprano VX Chassis Inc. 430W PSU - Black

IMG 1 of 1
No Longer Available
Part Number:
71011
(?) Brand:
ThermalTake Web Site
Manuf No:
VD6430BNS
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VD6430BNS


Simple and elegant
Piano mirror coating
Dual USB 2.0, IEEE 1394 Firewire, HD Audio ports
Tool-free installation for all drive bays & add-on cards
High efficiency ventilation: 12cm silent fan in rear (front 12cm fan is optional)
Side air duct for superior thermal efficiency

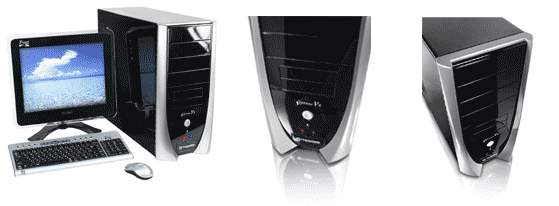

Appearance
Piano-Mirror coating
Streamline appearance
Simple and elegant
Angle view


Ventilation

Side air duct for increased CPU cooling
**Intel TAC1.1 passed (Ta38oC)
Retractable side air duct
CPU & VGA cards venting hole
12cm fans in the front and back
(fan in the front is optional)

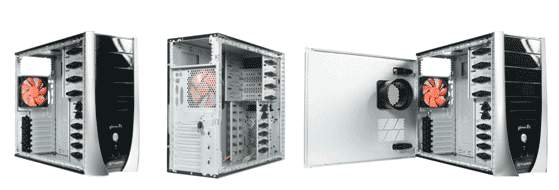

Structure (Internal)

Screw-less kits for 5.25 drive bays
Screw-less kits for 3.5 drive bays
Screw-less kits for HDD drive bays
Screw-less kits for add-on cards
Reliable EMI Shielding


Structure (External)

Easy access front I/O
(USB 2.0 x 2, Firewire,HD Audio ports)
Side panel lock for security
Thumb-Screw for easy side panel opening
High quality rubber foot stand
Easy access power button








Model
VD6000BNS
VD6400BNS
VD6430BNS
Case Type
Middle Tower
Net Weight
6.15 kg
Dimension (H*W*D)
415 x 190 x 510 mm
Cooling System
Front (Intake) :
120 x 120 x 25 mm (optional)
Rear (Exhaust) :
120 x 120 x 25 mm, 1300rpm, 17dBA
Drive Bays
- Accessible
- Hidden
10
4 x 5.25, 2 x 3.5
4 x 3.5
Material
SECC Japanese steel
Color
Black
Expansion Slots
7
Motherboards
Micro ATX , Standard ATX
PSU
Standard ATX PSII
400W ATX 12V V2.0
430W ATX 12V V1.3
I/O Ports
USB 2.0 x 2, IEEE 1394 x 1, HD Audio
Container Load
20-392, 40-823, 40HQ-919


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
