ZM500-HP is an ultra-quiet power supply that complies with ATX12V Version 2.2, and supports the latest dual-core CPUs(Intel Core2 series/AMD Athlon64-X2 series), as well as the latest dual graphic card systems(NVIDIA SLI -Ready Certified). |
|
| |
 |
| |
 |
| |

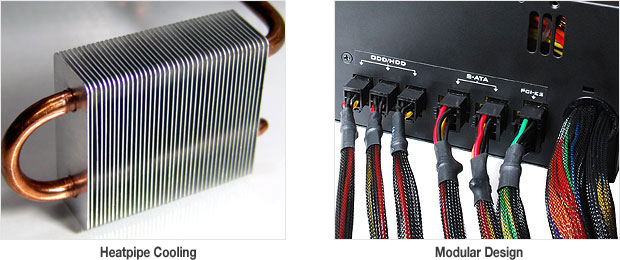

 Heatpipes Installed for Maximum Cooling Performance and Ultra-Quiet Operation |
| |
A heatpipe with ultra-high cooling performance incorporated on the power supplys main
rectifiers enables high load operation even at low RPM for a dramatic reduction in noise levels. |
| |
| Improved Power Factor & Reduced Harmonics through Active PFC |
| |
| By implementing Active PFC(Power Factor Correction), the Power Factor (PF) is improved from 75% (Passive PFC) up to 99% while harmful harmonic frequencies are reduced to meet the line harmonic distortion requirements of IEC61000-3-2 Class D. |
| |

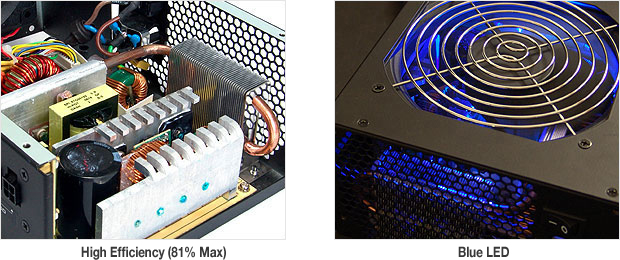

| High Efficiency Design |
| |
| This power supply is capable of reaching a maximum of 81% efficiency(230VAC, Full & Typical Load) through its use of high switching frequency and low power-loss circuitry. |
| |
| ATX20+4 Pin Main Connector |
| |
| ATX20+4 pin main connector broadens the range of motherboard compatibility. |
| |
| Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin |
| |
| Two ATX12V CPU 22(4-Pin) power cables can be combined to form an EPS12V CPU 8-Pin power cable. |
| |
| Dual PCI Express VGA Power 6-Pin Connector |
| |
| Support Nvidia SLi dual graphic card systems. |
| |
| Module Cables |
| |
| Modular cables provide organized cable management and improved air circulation inside the computer case. |
| |
| Ultra Quiet 120mm Fan |
| |
| Ultra quiet 2-Ball Bearing 120mm fan maximizes the airflow and minimizes the noise level enabling a noiseless computing environment with optimized cooling. |
| |
| Two Independent +12VDC Outputs |
| |
| Two +12VDC rails supply power independently to the CPU, VGA, motherboard, and peripheral components for the highest level of stability and performance. |
| |
| EZ Grip Connectors for ODDs & HDDs |
| |
| EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs. |
| |
| Gold-Plated Terminals |
| |
| Gold-plated the terminals minimize power loss by reducing contact resistance. |
| |
| Sleeved Cables |
| |
| All power cables are sleeved for easy cable management and improved air circulation inside the computer case. |
| |
| Multiple Safety Features |
| |
| Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, Over-Temperature Protection. |
| |
| Internal Blue LED |
| |
| Blue LEDs are installed inside the power supply for cool aesthetics. |
| |
| WEEE & RoHS |
| |
Complies with WEEE & RoHS environmental directives of the European Union.
- WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances) |
| |
| International Safety and EMC Certifications |
| |
 |
