NEC NP-4000G DLP Installation Projector - XGA, 5200 Lumens, 2100:1

IMG 1 of 1
No Longer Available
Part Number:
72500
(?) Brand:
NEC
Manuf No:
NP-4000G
NP4000G
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
NP4000G, NP-4000G, 13NP4000G, 13NP-4000G
Dual lamp system projector with high brightness of 5200 ANSI lumens appropriate for large venues
  • DynamicBlack - High Contrast Ratio of 2100:1
  • Dual Lamp System - High Brightness of 5200 ANSI lumens
  • Two types of Replaceable Colour Wheel and BrilliantColor
  • High connectivity supporting several different image sources
  • Five Optional Lenses
  • Powerd Lens Shift mechanism and Keystone Correction
  • Auto Start and Direct Power Off

The DLP Method and a 0.7-inch DLP chip are employed
With the introduction of DynamicBlack , the projector delivers high contrast ratio of 2100:1 for superior image display
capability, particularly to express the vivid details in dark images.
* DynamicBlack works only in 2-Lamp Mode.
Dual lamp system provides high brightness of 5200 ANSI lumens. Continuous use is also possible when using a single lamp mode.
By employing a dual lamp system, high brightness of 5200 ANSI lumens has been achieved. This is sufficient when high brightness is required in large venues.
Furthermore, in the Single lamp mode, since the projector can be operated continuously by using the automatic lamp switching function, it is suitable for monitoring purposes. Lamp Eco mode is available in both the dual lamp and single lamp modes for extending the service life of the lamp.
Two types of Replaceable Colour Wheel and BrilliantColor technology project vivid images
The NP4000 has a six-segment (red, green, blue, cyan, magenta, and yellow) colour wheel, in addition to the standard four-segment (red, green, blue, and white) colour wheel - and the colour wheels can be changed by the customer. The BrilliantColor technology results in superior reproducibility of neutral tints for vivid images of natural scenery. By adding cyan,magenta and yellow to red, blue, and green, colour reproducibility is improved and more natural tints are projected.
* The brightness when using the six-segment colour wheel is about 67% of the brightness when using the four-segment colour wheel.
High connectivity supporting several different image sources

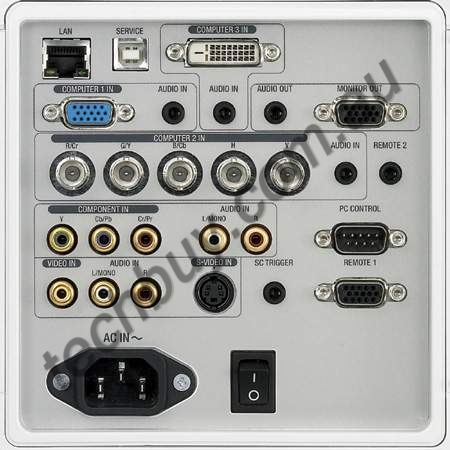

Units are equipped with DVI-D, component, and RGB input/output terminals. Integrated 3W+3W stereo speakers make it possible to output sound together with images.

 Remote Control
The power can be controlled intensively with Auto Start and Direct Power Off
The NP4000 starts projecting images automatically when electric power is supplied. Turn off the power source with a switch or a circuit breaker while projecting images or running the fan. With these functions, it is possible to completely control the power of the projector with the power distribution board.
Five types of lenses selectable for the installation environment
Five different lenses are available to support a variety of uses. The projector supports screens from 40 to 500 inches; select the optimum lens depending on the specific installation environment, such as conference rooms, halls, and exhibitions. For a 100-inch screen, projection is possible at a distance 1.6 m (short fixed focus lens) or between 2.7 m to 17.1 m. Lenses are easily replaced by the customer and do not require special tools.
(Note: Lenses are not attached to the NP4000 main unit.)
Model NP06FL NP07ZL NP08ZL NP09ZL NP10ZL
Lens type Short Focus Fixed Lens Zoom Lens Zoom Lens Zoom Lens Zoom Lens
Option Lens
Zoom/Focus Power (Focus Only) Power Power Power Power
Zoom Ratio 1.00 1.34 1.32 2.00 1.85
Throw Ratio 0.77 : 1 1.33 - 1.79 : 1 1.78 - 2.35 : 1 2.22 - 4.43 : 1 4.43 - 8.3 : 1
Lens Shift Vertica 0 Max +0.5V Max +0.5V Max +0.5V Max +0.5V
Horizontal 0 Max 0.1H Max 0.1H Max 0.1H Max 0.1H
Weight 1.0kg 1.1kg 0.8kg 1.1kg 0.9kg
Screen Size 50 - 200inch 40 - 500inch 40 - 500inch 40 - 500inch 40 - 500inch
Brightness* 2-Lamp Mode 4200 ANSI lm 4600 ANSI lm 5200 ANSI lm 4600 ANSI lm 3600 ANSI lm
1-Lamp Mode 2100 ANSI lm 2300 ANSI lm 2600 ANSI lm 2300 ANSI lm 1800 ANSI lm
* This is the brightness in Normal Mode. If the lamp mode is set to Eco Mode, brightness is reduced by 85% of Normal Mode.

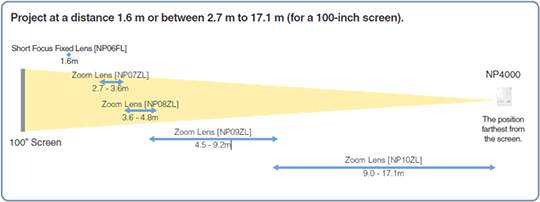

Projection range of lens (image projected on a 100-inch screen)
Powered lens shift mechanism for simple adjustment of projected images on screen and Keystone correction
With the powerd lens shift mechanism, the position of projected images on screen can be adjusted in both the vertical and horizontal directions without moving the main unit. Furthermore, Keystone correction corrects distortions in the vertical and horizontal directions up to a maximum +/- 35 degrees in the horizontal direction and a maximum +/- 40 degrees in the vertical direction.
Since adjustment of lens zoom and focus, as well as Lens shift and Keystone correction, can be operated by remote control, the projector need not be installed within reach of the speaker.

Specifications
Model Name NP4000
DLP  Chip *1 Single DLP chip, 1,024 x 768 pixels (Aspect Ratio 4 : 3)
Lens*2 Powered Zoom / Focus Zoom Ratio : 1 to 1.32 / Focus (F=1.7 to 1.9)(f=26 mm to 34 mm) with NP08ZL
Powered Shift*3 Horizontal : max 0.1 H / Vertical : max + 0.5 V
Projection Distance 1.42 m to 24.35 m with NP08ZL
Projection Angle 8.9 degree to 12.1 degree with NP08ZL
Lamp (Eco Mode) 260 W (230 W) AC
Lamp Life *4 (Eco Mode) 2,000 H (2,500 H)
Light Output Normal Mode 5,200 ANSI lumens Dual Lamp with NP08ZL
2,600 ANSI lumens Single Lamp with NP08ZL
Eco Mode Approx. 85 % of Normal
Contrast Ratio (White / Black) 1000 : 1 / 2,100 : 1 with DynamicBlack *5
Quietness (Eco Mode) 36 dB Dual Lamp (34 dB Dual Lamp : Eco Mode)
Image Size (Diagonal) 40 inch to 500 inch (1.02 m to 12.70 m) with NP08ZL
Maximum Resolution UXGA (1,600 x 1,200)
Synchronization Range Horizontal 15 kHz, 31kHz to 90 kHz (RGB : 31 kHz or over)
Vertical 50 Hz to 85 Hz
Video Bandwidth RGB : 100 MHz ( - 3 dB)
Colour Reproduction Full Colour, 16.7 Million Colours Simultaneously
Input Terminals 3 Computer Input 1 D-Sub Mini 15pin (Computer 1 IN)
1 BNC x 5 (Computer 2 IN)		 Compatible signals VGA, SVGA, XGA, SXGA, SXGA+, UXGA
RGB (Analog) 0.7 Vp - p / 75
H / V Sync 4.0 Vp - p / TTL Polarity
Composite Sync 4.0 Vp - p / TTL Level
Sync on G 1.0 Vp - p / 75 Negative Polarity
2 Stereo Mini Jack Stereo L / R 0.5 Vrms / 22 k or over
1 DVI-D (Computer 3 IN) RGB (Digital) T.M.D.S Specification, with H.D.C.P , Max Resolution : SXGA+ / 60 Hz
1 Stereo Mini Jack Stereo L / R 0.5 Vrms / 22 k or over
2 Component Inputt 1 RCA pin x 3
1 BNC x 5
(Sharing with Computer 2 IN)		 Y 1.0 Vp - p / 75 (with Sync), Terminal Y (Green) is Also Available for Video Input
CbCr (PbPr) 0.7 Vp - p / 75
Compatible signals 1080i, 720p, 480p, 480i/60Hz, 1080i, 720p, 576p, 576i/50Hz
DVD Progressive Signals (50 / 60 Hz)
2 RCA pin Stereo 0.5 Vrms (Typical) / 47 k
Audio Input is Sharing with Computer 2 Same With Computer
1 Video Input 1 RCA pin Composite Video NTSC / NTSC4.43 / PAL / PAL - N / PAL - M / PAL - 60 / SECAM
1.0 Vp - p / 75
2 RCA pin Stereo 0.5 Vrms (Typical) / 47 k
1 S-Video Input Mini DIN-4pin Y 0.714 Vp - p / 75
C 0.286 Vp - p / 75
Audio Input is Sharing with Video Same with Video
Output Terminals Monitor Output D-Sub Mini 15pin Selected Computer 1 2 or Component Signal Output
Audio Output Stereo Mini Jack Stereo L / R Variable Output Level
Selected Computer 1 2 3, Component, Video, S - Video
Screen Trigger Screen Trigger 12 V DC 200 mA
Control Terminals 1 LAN Port RJ - 45 100 BASE - TX / 10 BASE - T
USB Port Type B for Service
REMOTE 1 D-Sub Mini 15 pin for External Control Device
REMOTE 2 Stereo Mini Jack Wired Remote Control
PC Control D-sub 9pin RS - 232C
Built-In Speaker 3 W + 3 W Stereo
Keystone Correction Horizontal Manual Approx. Max 35 degrees (Less than XGA resolution, aspect 4 : 3)*6
Vertical Manual Max40 degrees (Less than XGA resolution, aspect 4 : 3)*6
Environment Operational Temperatures 5 C to 40 C, 10 to 90 % Humidity (Non - Condensing)
Storage Temperatures -10 C to 60 C, 5 to 90 % Humidity (Non - Condensing)
Power Requirement 100 to 240 V AC, 50 Hz / 60 Hz
Input Current 6.5 A (Dual Lamp Normal Mode, 100 V)
Power Consumption Normal Mode 655 W (Dual Lamp) / 350 W (Single Lamp) (100 V)
Eco Mode 580 W (Dual Lamp) / 315 W (Single Lamp) (100 V)
Standby Mode 5 W (Power Saving)
Regulations For United States UL Approved (UL 60950 - 1), NOM - 001 - SCFI - 1993, Meets FCC Class B Requirements
For Canada C - UL Approved (CSA 60950 - 1), Meets DOC Canada Class B Requirements
For Asia / Oceania Meets IEC60950 - 1, AS / NZS CISPR. 22 Class B
For Europe Meets EMC Directive (EN55022 Class B, EN55024, EN61000 - 3 - 2, EN61000 - 3 - 3), Meets Low Voltage Directive (EN60950 - 1, TUV GS Approved)
Dimensions (W x H x D) 505 mm x 197 mm x 385 mm (Not Including Protrusions)
Net Weight 16.5 kg

*1 : DLP Panel technology consists of fine picture cells with more than 99.99 % of the cells being active.
*2 : Lenses are not attached to the NP4000 main unit.
*3 : The Lens Shift function is not available for the NP06FL.
*4 : Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it dose not refer to the warranty period for the lamp.
*5 : DynamicBlack works only in 2 - Lamp Mode.
*6 : When the Lens Shift is Set as 0 % (H) / Vertical Offset = 50 %, Throw Ratio = 1.78
All specifications are subject to change without notice.

Model codes, specifications and available options may differ by region.
For detailed information, please contact the NEC sales company or dealer in your area.

XGA is a registered trademark of International Business Machines Corporation. All other brand and product names are registered trademarks of their respective holders. Further trademark information.
