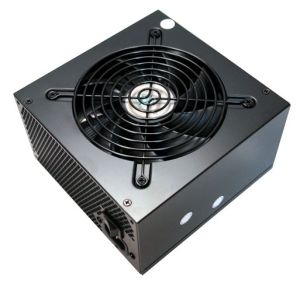

G54OP650F04010 | SilverStone OP650 - 650W Olympia Power Supply - 120mm Fan, 2x

Introduction

The Olympia series continues the fine form established by the first SilverStone performance single +12V rail Zeus ST56ZF and expands to a new plateau. Precision manufactured by industry leading robotics assembly line and designed by SilverStone's world-class PSU engineering team, the Olympia OP650 possess serious performance with real-world usability. With a single +12V rail continuous output up to 54A at 50C , this peerless power is harnessed in a compact enclosure and cooled by a high quality 120mm fan tuned to perfection. Combining these performance and ergonomic attributes into a power supply such as the OP650 is a dream come true not only for the most ardent enthusiasts but also for those who are simply looking for the best available power supply to use in any systems.



Special Feature

Max. DC Output	650W
Load Range
+3.3V +5V +12V +5VSB -12V -5V Max.(Amps) 24A 30A 54A 4.0A 0.5A / Peak (Amps) / / / / / / Min.(Amps) 0A 1A 3A 0.1A 0A / Range (%) +/-3% +/-3% +/-3% +/-5% +/-10% / Line Reg.(%) 1% 1% 1% 1% 1% / Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV /
combined +3.3, +5V	180W
combined +12V	648W/ 54A
Input Voltage	90V ~ 264V ( Auto Range )
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.99 at full load)
Efficiency	>80%
MTBF	100,000 hours at 25C , full load
Operating temperature	0 ~ 50C
Protection	Over current protection, Over power protection, Over voltage protection, Short circuit protection
Connectors	1 x 24-pin motherboard connector (550mm) 1 x 8/4-pin EPS12V connector (550mm) 1 x 8-pin PCI-E connector (550mm) 1 x Dual 6-pin PCI-E connector (550mm) 2 x triple SATA connector (500mm +250mm + 250mm) 2 x triple 4-pin IDE & single floppy power connectors (500mm + 250mm + 250mm + 150mm)
Color	black (lead-free paint)
Cooling System	Single 120mm ball bearing fan
Noise Level	22 dBA minimum
Dimension	150 mm (W) x 86 mm (H) x 150 mm (D)
Weight	2.6 kg
Certification	CrossFire
