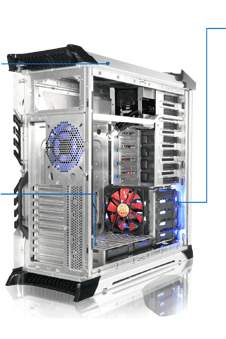

ThermalTake Xaser VI Aluminium Chassis Inc. Side Window no PSU- Silver

No Longer Available

Part Number:

80764

(?) Brand:

ThermalTake Web Site

Manuf No:

VG4000SWA

Shipping Weight:

14 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VG4000SWA, CASEVG4000SWA, CASE-VG4000SWA

Patent Information
Country	Patent No.
Taiwan	M324401

	Optimized design for both liquid cooling and air cooling system
	Sliding removable hood with toolbox on top (Upgradable to LCS)
	10 PCI slots design for quad-graphic card configuration
	Tool free design for 5.25 device and PCI slot
	Sliding motherboard tray
	Independent thermal management for CPU, VGA & HDD
	Cable management system for better cable routing and internal air flow
	Evolutionary adjustable PSU supporting bridge
	MicroATX, ATX, Extend-ATX supported


Mechanical push-and- open front I/O cover	Stylized X shaped power button	I/O panel supported 2 E-SATA, 4 USB, 1 IEEE 1394 & HD Audio in/out.


Organized HDD cable management	Sliding Motherboard tray	Support up to 14 drive bays


7 5.25 slot-in to lock device	7 Modularized HDD tray	Removable HDD cage	Adjustable PSU supporting bridge


10 Screwless PCI slots with preserved screw holes	Swappable HDD module / Fan module	Extra bottom space for better LCS expandability. (After HDD / Fan module removed)


			HDD (intake) 140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan


			Front (intake) 140 x 140 x 25mm fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan

			Bottom (intake) : Two 140 x 140 X 25 mm fans or Two 120 X 120 X 25 mm fans


			Rear (exhaust) : 120 x 120 x25 mm blue LED fan, 1300rpm, 17dBA

			Top (exhaust) : 140 x 140 x 25mm fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan

Top (exhaust) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

Bottom (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

Front (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

VGA (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

TurboFan	TurboFan
140 x 140 x 25mm , 1000rpm, 16dBA	120 x 120 x 25mm , 1300rpm, 17dBA

Model	VG4000SWA
Case Type	Super Tower
Dimension (WDH)	605 x 250 x 660 mm 23.8 x 9.8 x 26.0 inch
Net Weight / Gross Weight	11.0 kg ; 24.2 lb / 13.8 kg ; 30.4 lb
Window side panel	Yes
Sliding motherboard tray	Yes
Cable management	Yes
Sliding hood	Yes
Adjustable PSU bridge	Yes
Material	All Aluminum
Color	Chassis color : Silver / Metal mesh : Black
Cooling System	- Front (intake) : 140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional) - Rear (exhaust) : 120 x 120 x25 mm blue LED fan, 1300rpm, 17dBA - Top (exhaust) : 140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional) - Bottom (intake) : Two 140 x 140 mm fans (optional) or two 120 x 120 x25 mm fan (optional) - VGA (intake) : 140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional)
Motherboards	9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (Extend ATX)
Drive Bays -5.25" Drive Bay -3.5" Drive Bay -3.5" Drive Bay (Hidden)	7 1 (Convertable from one 5.25" drive bay) 7
Front I/O	e-SATA connector x 2, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio
Expansion Slots	10

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
