45nm Multi-Core Processor Ready Platform with High Power |
| |
Efficiency |

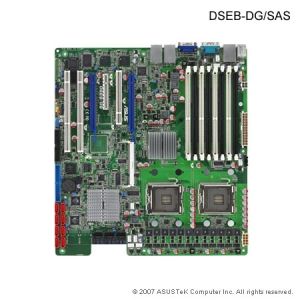

ASUS new server board DSEB-DG is based on the next-generation 45nm Intel Xeon 5400/5300/5200/5100 processor with the green design of 90%+ power efficiency. Featured with leading-edge technology including FSB 1600MHz, FB-DIMM 800MHz, PCI-Express Gen2 x16 and IOAT2, the DSEB-DG is the most out-performance server board which is ideal for enterprise-class and computing demanding applications.
Green Design with 90%+ Power Efficiency Optimizes the power efficiency up to 90%+, which enables power saving of around 1.68KWh per day and 613.2KWh per year, compared to general serverboards with 80% power efficiency (actual power saving also depends on loading in the system) Being a significant reduction of the TCO (Total Cost of Ownership), especially for the enterprises and IDC deploying with numerous server systems to provide 7x24 non-stop services base on above calculation
PCI-E Gen2 x16 Support & Rich Expansion Choices DSEB-DG provides two PCI-E Gen2 x16 slots (for high speed Infiniband connections or professional graphic cards) with each support up to 8GB/s bandwidth, which doubles the bandwidth compare to PCI-E 1.1 One PCI-E x8 expansion slot, two PCI-X and one PCI 32bit/33MHz interface wide expansion choices, which provide wide option for legacy add-on-cards
Exclusive MemCool Support for FBD FB-DIMM provides high computing capability Optional ASUS Patented MemCool Kit maximizes Fully-buffered DIMM performance by eliminating the potential risk of system memory throttling from over-temperature, and minimizes the system integration effort of SI for thermal & acoustic solution
Quad Server Class LAN Improved Data Transfers Built-in Quad-LAN with a teaming technology integrates four high-speed Gigabit LAN ports into a single one to provide almost four times the transferring bandwidth than ever Provide "fail-over" function, if one or more port fail, the networking connection will not be affected immediately The Quad-LAN integration provides higher bandwidth compare to dual-LAN scenario The four ports can be used in individual sub-nets to provide secure data and smooth transfers
KEY SPECIFICATIONS
|
Processor
|
2 * LGA771 sockets support:
Quad-Core Intel Xeon Processor 5300/5400 Series Processors
Dual-Core Intel Xeon Processor 5100/5200 Series Processors
|
|
FSB
|
FSB 667/1066/1333/1600MHz
|
|
Core Logic
|
Intel 5400 Memory Controller Hub (MCH)
Intel 6321ESB I/O Controller Hub (ICH)
|
|
Memory
|
8 DIMM slots support Fully-Buffered DIMM 533/667/800, 1.55V Low Voltage FB-DIMM Support, Max. up to 64 GB Memory Capacity
|
|
Storage Interface
|
Intel 6321ESB support 6 SATA2 300MB/s ports
Marvell 6145 * 2 support 8 SATA2 300MB/s ports
|
|
RAID Support
|
Intel 6321ESB: 6 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only)
(Support software RAID 0, 1, 10 & 5)
LSI MegaRAID (for Linux/Windows) (Support software RAID 0, 1, 10)
Marvell 6145 * 2
Total 8 SATA2 300MB/s ports
(Support software RAID 0, 1& 10)
|
|
NIC
|
Quad-LAN:
Intel 6321+ Intel 82563EB Dual Port GbE LAN
2 * Intel Intel82573L GbE LAN
|
|
Onboard Gfx
|
XGI Z9s VGA Controller / 32MB DDR VRAM
|
|
Expansion Slot
|
2 * PCI-E x16 Gen2
|
|
1 * PCI-E x8 (x8 link)
|
|
2 * PCI-X 100/133 MHz
|
|
1 * PCI 32bit/33 MHz
|
|
Form Factor
|
SSI EEB 3.61, 12" x 13"
|
|
