Detailed Product Description
Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache, to deliver performance that's up to 35% faster than its speedy older brother.
Key Features
Killer Speed - Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35 percent faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.
Rock-solid Reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.
Double the Capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive. (Not compatible with notebook computers)

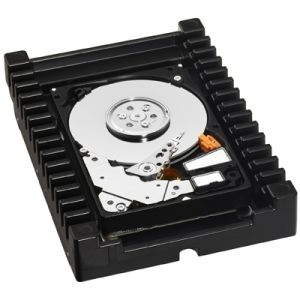

IcePack Mounting Frame - The 2.5-inch WD VelociRaptor is enclosed in a 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.
Rotary Acceleration Feed Forward (RAFF) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
SecurePark - Parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long-term reliability and increased drive protection when the chassis is moved.
Ideal For - Performance enthusiast systems, workstations, and low-end servers
Specificaitons
| WD Code |
WD3000HLFS |
| Compatibility |
- Windows Vista/XP/2000
- SATA interface connector on motherboard or SATA host controller*
- Available 3.5-inch internal drive bay
*Compatibility may vary depending on user's hardware configuration and operating system. |
| Package Contents |
- 3 Gb/s SATA hard drive
- WD SATA interface cable
- Quick Install Guide
- Mounting screws |
| Transfer Rates |
Buffer To Host (Serial ATA)
3 Gb/s (Max)
Transfer Rate (Buffer To Disk)
120 MB/s (Sustained) |
| Formatted Capacity |
300,069 MB |
| Capacity |
300 GB |
| Interface |
SATA 3 Gb/s |
| User Sectors Per Drive |
586,072,368 |
| Physical Dimensions |
Height: 1.028 Inches/26.1 mm (Max)
Length: 5.787 Inches/147 mm (Max)
Width: 4.00 Inches (+/- 0.010 inch)/101.6 mm
Weight: 1.08 Pounds/0.489 kg |
| Shock |
Operating Shock (Read): 65G, 2 ms
Non-operating Shock: 300G, 2 ms |
| Acoustics |
Idle Mode: 29 dBA (average)
Seek Mode 0: 36 dBA (average) |
| Temperature |
Operating: 32 F to 140 F/-0 C to 60 C
Non-operating: -40 F to 158 F/-40 C to 70 C |
| Humidity |
Operating: 5-95% RH non-condensing
Non-operating: 5-95% RH non-condensing |
| Altitude |
Operating: -1,000 feet to 10,000 feet/-305M to 3,050M
Non-operating: -1,000 feet to 40,000 feet/-305M to 12,200M |
| Vibration |
Operating
Linear: 20-300 Hz, 0.75G (0 to peak)
Random: 10-300 Hz, 0.008 g / Hz
Non-operating
Low Frequency: 0.05 g/Hz (10 to 300 Hz)
High Frequency: 20-500 Hz, 4.0G (0 to peak) |
| Electrical Specifications |
Current Requirements
12 VDC
Read/Write: 225 mA
Idle: 200 mA
Standby: 6 mA
Sleep: 6 mA
5 VDC
Read/Write: 675 mA
Idle: 425 mA
Standby: 70 mA
Sleep: 70 mA
Power Dissipation
Read/Write: 6.08 Watts
Idle: 4.53 Watts
Standby: 0.42 Watts
Sleep: 0.42 Watts |
|
