Western Digital 1000GB (1TB) 7200rpm Serial ATA-II-300 HDD w. 32MB Cache (WD1002FBYS) Caviar RE3

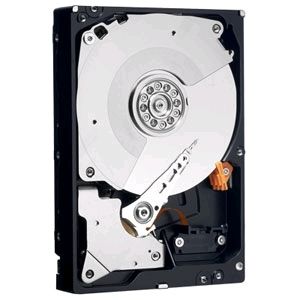

IMG 1 of 1
No Longer Available
Part Number:
89054
(?) Brand:
Western Digital Web Site
Manuf No:
WD1002FBYS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, AMIHD1000WS4, AMI-HD1000WS4, WD1002FBYS, WD32542
WD RE3 drives combine up to 32 MB cache with SATA 3 Gb/s transfer rate for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.

Key Features
Massive capacity - WD RE3 Enterprise SATA drives are available in capacities up to 1 TB.

Dual processor - Twice the processing power results in a 20% performance improvement over the previous generation.

StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.

RAFF - Our fourth generation RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time for up to a 60% performance improvement in high vibration environments over the previous generation of drives.

IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise, and vibration.

Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

Third generation dynamic fly height - Each read-write heads fly height is adjusted in real time for optimum reliability.

Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.

NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin.

Performance Specifications
Rotational Speed 7,200 RPM (nominal)
Buffer Size 32 MB
Average Latency 4.20 ms (nominal)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 1,000,204 MB
Capacity 1 TB
Interface SATA 3 Gb/s
User Sectors Per Drive 1,953,525,168
Physical Dimensions
English
Height 1.028 Inches (Max)
Length 5.787 Inches (Max)
Width 4.00 Inches (+/- 0.010 inch)
Weight 1.52 Pounds
Metric
Height 25.4 mm (Max)
Length 147 mm (Max)
Width 101.6 mm
Weight 0.69 kg
Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 250G, 2 ms
Acoustics
Idle Mode 28 dBA (average)
Seek Mode 0 33 dBA (average)
Seek Mode 3 29 dBA (average)
Temperature (English)
Operating 32 F to 140 F
Non-operating -40 F to 158 F
Temperature (Metric)
Operating -0 C to 60 C
Non-operating -40 C to 70 C
Humidity
Operating 5-95% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating
Linear 20-300 Hz, .75G (0 to peak)
Random 0.004 g/Hz (10 to 300 Hz)
Non-operating
Low Frequency 0.05 g/Hz (10 to 300 Hz)
High Frequency 20-500 Hz, 4.0G (0 to peak)
Electrical Specifications
Current Requirements
12 VDC
Read/Write 490 mA
Idle 470 mA
Standby 5 mA
Sleep 5 mA
5 VDC
Read/Write 500 mA
Idle 420 mA
Standby 160 mA
Sleep 160 mA
Power Dissipation
Read/Write 8.40 Watts
Idle 7.8 Watts
Standby 1.00 Watts
Sleep 1.00 Watts
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second.
