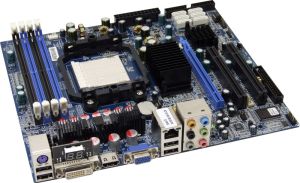

JW-RS780UVD-AM2+ :
The World's first 780G motherboard with onboard DDR2 local frame buffer built-in!

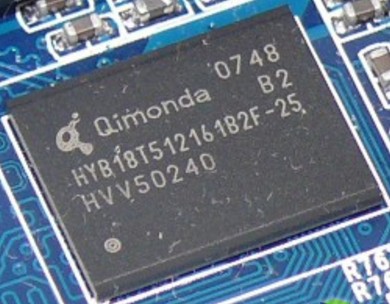

Close-up shot of the onboard DDR2 local frame buffer
ATI Hybrid Graphics is a technology umbrella brand encompassing the following technologies: :
ATI Hybrid CrossFireX
Based on ATI CrossFireX multi-GPU technology, ATI Hybrid CrossFireX takes your gaming experience to the next level boosting PC performance by enabling the chipsets integrated graphics processor and a discrete GPU to operate simultaneously with combined output to a single display for faster frame rates unleashing the graphics performance that youve been waiting for on a mainstream PC.
ATI SurroundView
ATI Hybrid Graphics technology enables ATI SurroundView which supports 4 or more independent monitors when an integrated graphics processor is combined with a discrete graphics processor. Each additional discrete GPU supports 2 or more independent monitors. Be more productive with ATI SurroundView.
ATI PowerPlay
ATI PowerPlay power management technology is designed to enable power saving profiles that help reduce power consumption when the GPU is idle or in minimal use. This dynamic power management enables the GPU to automatically adjust power between low, medium and high states for power efficiency and performance-on-demand. For example, when sending/receiving emails little demand is on the GPU and it runs in a low state, whereas when gaming there is high demand on the graphics engine and the GPU runs in a high state.
HD Video and Display Technologies
ATI Avivo offers advanced HD imaging and video through revolutionary technologies that are ideal for enthusiasts of media PCs, HDTV, HD discs and digital photography.
Smooth HD Video Playback with UVD*
ATI Avivo HD technology is designed for high-end, high definition video playback in home theater systems. Free your CPU to power other applications with new UVD (Unified Video Decoder) hardware processing of HD video formats.
UVD is a dedicated video decode processing unit introduced with ATI Radeon HD 2000 series graphics processors that offloads both CPU and GPU rendering pipelines. UVD technology reduces power use, decreases system noise and increases notebook battery life during HD video playback.
Please Note: This motherboard does NOT support the 125W TDP Phenom / Athlon X2 processor models (i.e. Phenom 9850BE, Athlon X2 6400+, Athlon FX-62).

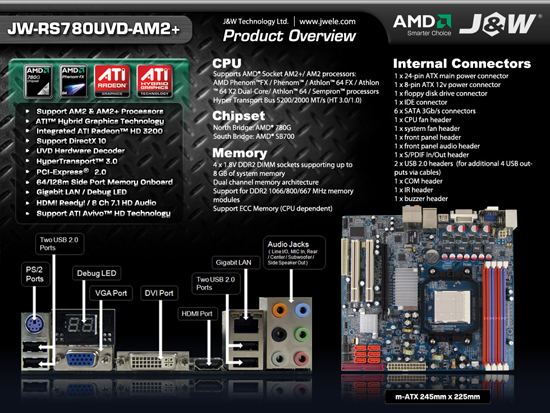

Specification
|
Processor
|
- Socket AM2+/AM2 for AMD PhenomFX / AMD Phenom* / AMD Athlon 64 FX / AMD Athlon 64 X2 / AMD Athlon 64 / AMD Sempron processors (*Note: 125W TDP processor models are not supported.)
|
|
Chipset
|
- AMD 780G + SB700 (Built in Radeon HD 3200 Graphics, DirectX 10 Ready, with 64MB side-port DDR2 memory onboard)
- Marvell 10/100/1000 Mbps Ethernet Controller
- Super I/O: Winbond W83627EHG chip
- Realtek ALC 888 HD Audio Codec (Please check with your local distributor)
- 8M bit flash ROM
|
|
HyperTransport
|
- HyperTransport 3.0/1.0, 5200/2000 MT/s
|
|
Memory
|
- Dual Channel DDR2 1066/800/667/533 support (DDR2 1066 support is dependent on CPU)
- Max capacity: 8 GB
- DIMM slots: 4
|
|
Internal I/O
Connectors
|
- 1 x 24-pin ATX power connector
- 1 x 8-pin ATX 12V power connector (compatible with 4-pin connector)
- 1 x floppy connector
- 1 x IDE connector (for 2 PATA devices)
- 6 x SATA 3Gb/s connectors (Support RAID 0,1,0+1)
- 1 x CPU fan connector
- 1 x system fan connector
- 1 x front panel connector
- 1 x front audio connector
- 2 x USB 2.0 header for additional 4 USB 2.0 ports (by cables)
- 1 x buzzer connector
- 1 x IR connector
- 1 x SPDIF In/Out header
|
|
Expansion Slots
|
- 1 x PCI-E x16 slot
- 2 x PCI slots
|
|
Rear Panel I/O
|
- 1 x PS/2 Keyboard port
- 1 x HDMI port
- 1 x DVI port
- 1 x VGA port
- 4 x USB 2.0 ports
- 1 x RJ45 GigaLAN port
- 3 x Audio ports (Line In / Line Out / MIC In), optional (Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)
|
|
Form Factor
|
- Micro-ATX
- 225 x 245mm
|
|
H/W Monitoring
|
- Winbond W83627EHG
- System health status auto-detect and reported by BIOS
|
|
BIOS
|
- 8 Mbit flash ROM, AMI BIOS
|
|
Bundle Software
|
- Driver and Utility CD/DVD
|
|
Remark
|
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- This product does not support Win9X/ME.
- Solid Capacitors on PWM Area, Debug LED on back panel.
- This board does not support the 125W TDP Phenom Quad Core/ Athlon X2 Processors.
|
