Product DetailsGo BackEmail to FriendPrint
Power Protection/UPS -> Rack Mount -> Repotec

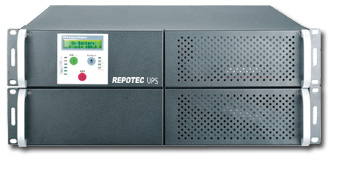

Repotec RP-3003A UPS - 3000VA/2100W Smart Online UPS, 3U Rackmount
Cart
Quantity:
Add Repotec RP-3003A UPS - 3000VA/2100W Smart Online UPS, 3U Rackmount to your wishlist
Click here to write a review on Repotec RP-3003A UPS - 3000VA/2100W Smart Online UPS, 3U Rackmount

Large image is available
Product May Vary From Image

Our Price:
$1,012.00

Techbuy Part No:94933
Usually Ships: Order In Details
Brand:Repotec
Manuf No:RP-3003A
 RP3003A
Shipping Weight:35 KG How Much?
Date Added:21/10/2008
Rating: Not Rated
Currency:AUD Convert

Product Description

Smart on-line UPS 3000VA

Front Panel


1.
 LCD Panel
8.
 Power Off
2.
 Indicator 1 (Fault)
9.
 Utility Power Indicator
3.
 Indicator 2
10.
 Bypass Indicator
4.
 Indicator 3
11.
 Inverter Indicator
5.
 Indicator 4
12.
 Battery Indicator
6.
 Indicator 5
13.
 Power On/Alarm Silence
7.
 Indicator 6
14.
 Select/Light Key

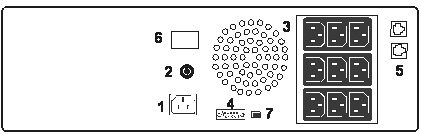

3KVA

1.
 Outlets
6.
 UPS Function Set up
      (1) No Load Auto Shutdown
      (2) DC Start
      (3) Buzzer Alarm Auto Reset
2.
 AC Input
7.
 USB Port
3.
 AC Fuse
8.
 Circuit Breaker
4.
 Tel/Modem Spike Protection Port
9.
 Surge Protection Only
5.
 Communication Interface Port
10.
 External Battery Connector

FEATURES

  Line Interactive Design
  User-friendly LCD Display
  Auto Restart when AC Recovery
  No Load Auto Shutdown (Dip Switch Set up)
  Buzzer Alarm Auto Reset (Dip Switch Set up)
  Tel/Modem/Fax/lnternet Surge Suppression
  Provide Boost and Buck AVR to stabilize Input Voltage
  Provide Lightning,Surge,Overload and Short Circuit Protection
  Built-in CCCV Battery Charger and Battery Over Drain Protection
  Optional Bundles Software:Automatically save Your Valuable Files before Auto Shutdown
  Rack/Tower Design



SPECIFICATIONS

MODEL


RP-3003A

Capacity



3KVA / 2100W

Input

 Voltage
110/115/120VAC or 220/230/240VAC
86VAC~144VAC or 172VAC ~288VAC (+ 25%)
Frequency
47Hz~53Hz or 57Hz~63Hz

Output

Voltage Regulation
(Batt. Mode)
110/115/120VAC or 220/230/240VAC +/-10%
Frequency
50Hz or 60Hz +/-1Hz
Waveform
Simulated Sinewave
Transfer Time
< 6ms (Typical)
IEC-320:Battery/
Surge onl

9/0
NEMA 5-15R:Battery/
Surge only

6/0

Efficiency

To AC mode

86%

To Battery mode

83%

Battery

Battery Type

12V/9AH*4pcs
Recharge Time
5Hrs to 90% after complete discharge
User Replacement
Yes
Battery Protection
Over discharge protection & Short circuit protection by fuse
Advanced Battery Management
Yes
Battery Back-up
Time
It depends on connecting loads and external battery packs

Function

 Display(LCD)
LCD display for AC normal,Back up,AVR protection,Load and Battery level, Overload and UPS cut off
Alarm
Buzzer on for Back-up mode,Battery low,Overload
Output Short
Protection
AC fuse and Electronic circuit (Line mode): Eletronic circuit (Back-up mode)
Communcation Port(RS-232)
Shutdown Software for Windows 95/98/NT/2000/ME/XP/Vista
Modem/Phone
Protection
RJ-11/RJ-45
Lightning/Surge Protection
240joules
AVR (Auto. Voltage Regulation)
Boost/Buck
DC Start Function
Yes
Auto. Restart UPS
Yes
Over/Under Voltage Protection
Yes

Environment

 Safety Standard
CE (EN50091-1,EN62040-1-1)
EMC Standard
UPS status, I/P & O/P Voltage & Frequency, Load %, Battery voltage & % Model Spec.
Operating Temperature
Relative Humidity
Audible Noise

Physical

 Dimension(D*W*H)

310 * 440 * 132mm(3U)
Net Weight

27.5Kgs

Specifications subject to change without notice.




Product Warranty


2-year RTB
