Extremely Quiet 140mm ball-bearing fan decreases 17% noise level
|
|
|
Stable 500W continuous output (at 50 operating environment)
|
|
|
Complies with ATX 12V 2.2 & EPS 12V 2.91 version
|
|
|
Three independent & dedicated +12V rails (12V1,12V2,12V3 ) provide stable and superior performance for PC system (combined loading of 36A).
|
|
|
Support Dual core CPU, Quad core CPU, NVIDIA SLI and ATI Crossfire Multi-GPU Technologies.
|
|
|
Modularised Cable Management to eliminate clutter and improve airflow inside the case.
|
|
|
Independent Voltage Circuit: offers unflappable current delivery under heavy load.
|
|
|
Strict voltage regulation (3%): provides steady voltage for system.
|
|
|
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%).
|
|
|
Japanese made capacitors.
|
|
|
Green power design that meets energy star, blue angel requirements
|
|
|
Protections: Over Current, Over Voltage, and Short-Circuit protection.
|
|
|
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.
|
|
|
|
|
|
|
|
|
|
ATX12V 2.2
|
EPS 12V
|
AMD / IntelDaul Core Support
|
12V Combined Output36A
|
PCI Express
Connectors X2
|
S-ATA Connectors X6
|
Quiet Fan
|
|
|
The 140mm QFan features a unique patent designed blade shape and a 360non-frame, effectively reducing the noise level. The air inlet is designed to increase air flow and reduce the sound of wind shear. Please see Figure 1, Figure 2
 Non frame 140mm QFan Figure 1
 Standard 140mm Fan Figure 2 |
|
|

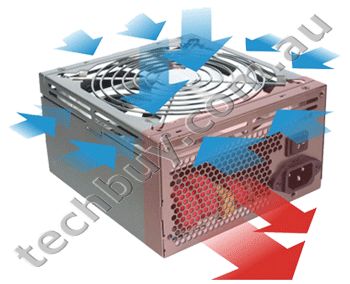

The QFan special five way air-intake housing design creates the best heat dissipation environment for the non-frame 140mm QFan at minimal noise level. Therefore, the fan at low speed setting yield a 17.1 dBA without compromising performance.Please see Figure 3, Figure 4, Figure 5
|
|
The 140mm QFan effectively decrease the noise level inside the PSU. The reportas below:
| |
Standard Fan dB(A)
|
QFan dB(A)
|
|

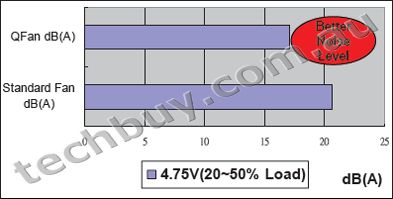

4.75V(20~50% Load)
|
20.7
|
17.1
|
|

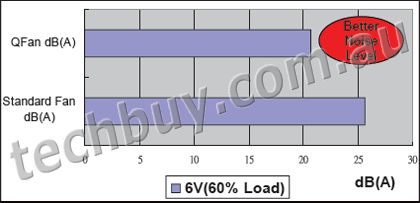

6V(60% Load)
|
25.6
|
20.7
|
|

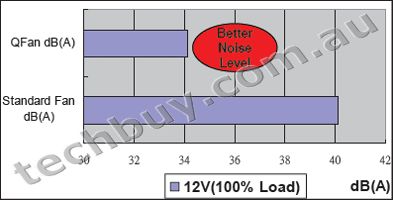

12V(100% Load)
|
40.1
|
34.1
|
|
|
 |
140mm QFan & standard Fan comparison chart
|
|
The 140mm ball bearing QFan effectively decreases the noise level inside the PSU. Performance report as below:
|
Standard Fan
|
QFan
|
|
1200 RPM
|
18.6
|

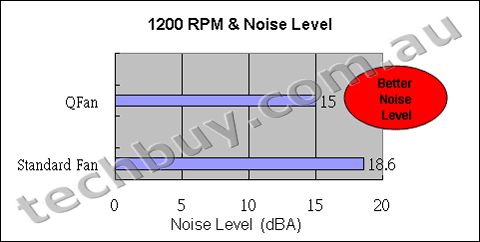

15
|
|
1500 RPM
|
20.7
|

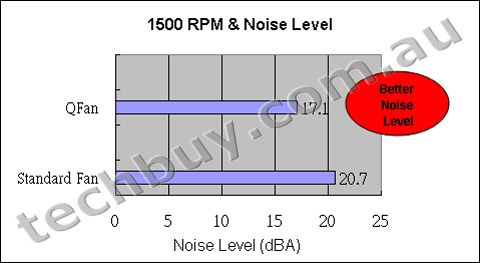

17.1
|
|

|
|
|
|
|
|
Total Output Connector: |
|
|
|
| |
|
Technology Features: |
|
|
|
Special design of non-frame cooling fan
|
|
|
|
|
|
|
|
Unique Housing design: Multi-directional air intake increases airflow
while keeping the extreme low acoustic noise.
|
|
|
|

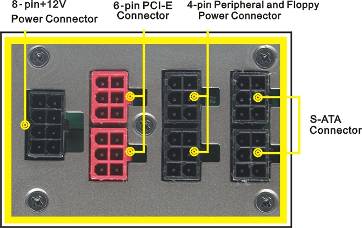

Embedded Socket Design: |
|
|
|
|
|
Model
|
W0151
|
|
Power
|
500W
|
|
Dimension
|
150mm(L)x160mm(W)x86mm(H)
|
|
Net Weight
|
2.02 Kg
|
|
Switches
|
ATX Logic on-off additional power rocker switch
|
|
PFC
|
Active PFC (PF > 0.9)
|
|
Cooling System
|
140mm QFan
SPEED: 1900 10% RPM
AIR FLOW: 93 CFM
BEARING TYPE: Two Ball Bearing
Temp. Auto Control
|
|
Noise
|
15 dBA at 1200 RPM, 17 dBA at 1500 RPM
|
|
P. G. Signal
|
100-500 ms
|
|
Efficiency
|
Up to 85%
|
|
Hold-up Time
|
16ms at 80% of full load
|
|
INPUT
|
|
Input Voltage
|
115 VAC ~ 230 VAC
|
|
Input Frequency Range
|
47 ~ 63 Hz
|
|
MTBF
|
120,000 hrs minimum
|
|
Input Current
|
100Vac / 6.0A max. 200Vac / 3.0A max.
|
|
ENVIRONMENT
|
|
Operating Temp.
|
10 to 50
|
|
Storage Temp.
|
-20 to 70
|
|
Operating Humidity
|
20% to 90%, non-condensing
|
|
Storage Humidity
|
5% to 95%, non-condensing
|
|
PROTECTION
|
|
DC rail
|
Trigger Point/Range
|
|
Over Voltage Protection
|
+3.3V trip point
|
4.5 Vmax
|
|
+5.0V trip point
|
7.0 Vmax
|
|
+12.0V trip point
|
15.6 Vmax
|
|
Over Current Protection
|
Not over 240VA for +5V & +3.3V output voltage
19A to 25A for +12V rails
|
|
Short Protection
|
All output to GND
|
|
Output Information
|
|
AC INPUT
|
115V/ 230V 6/3A 47~63Hz |
|
DC OUTPUT
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
-12V
|
+5VSB
|
|
Max Output Current
|
30A
|
28A
|
18A
|
18A
|
16A
|
0.8A
|
3A
|
|
Min Current
|
0.5A
|
2A
|
1.0A
|
1.0A
|
1.0A
|
0.0A
|
0.0A
|
|
Peak Current
|
--
|
--
|
--
|
--
|
--
|
--
|
3.5A
|
|
Max Combined Wattage
|
99W
|
140W |
432W
|
9.6W
|
15W
|
|
The continuous total output power is 500W, peak 600W(60 Sec).
The combined power of +5V & +3.3V is 140W max.
Total combined +12V output load not exceed 36A.
|
|
 Conclusion:At 500W, Thermaltake's Qfan enabled offerings finally manage to earn a recommendation here at jonnyGURU.com due to an ever so slightly better price. While it ain't the purtiest unit I ever did see, the Toughpower 500W Qfan is a nice, quiet, and capable unit that should serve well any lower powered system out there for a long time to come.  Conclusion:With the Thermaltake Toughpower Qfan 500W, Thermaltake has constructed a solid power supply unit with stabile lines, which addresses anyone with a mid-end system. The modular cables, as well as the relatively low noise level, improve the overall impression of the Thermaltake Toughpower Qfan 500W.  Conclusion:Because of the extremely good acoustics performance, very good build quality and strong electrical performance, the ThermalTake ToughPower Q-fan 500W unit receives our Editors Choice Award.
|
 |
