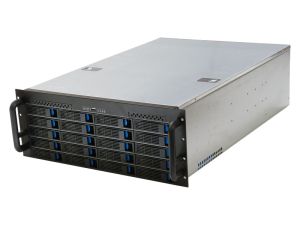

• 4U rackmount design
  • 20x hot-swappable SATA (I or II) / SAS drive bays, one 2.5" drive bay
  • Five internal SFF-8087 Mini SAS connectors support up to twenty 3.5" or 2.5" SATA (I or II) or SAS hard drives;
  • Hot-swappable HDD tray with special designed power-off and lock mechanism.
  • 1 x slim CD-ROM bay,1 x FDD bay, 20 x 3.5 " hot-swappable drive bays, 1 x 2.5" drive bay.
  • Six ball-bearing cooling fans for better ventilation
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • Screwless top cover
  • Smooth border prevent lacerating your skin


Drive Bay: 20 x hot-swappable SATA (I or II) / SAS drive bays, 1 x slim CD-ROM bay, 1 x FDD bay, 1 x 2.5" drive bay
Cooling Fan: 4 x 80mm middle fans wall, 2 x 80mm rear fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector:One front accessible USB port, five internal SFF-8087 Mini SAS connectors, ten 4-pin molex power connectors
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply Options: Standard ATX power supply, mini redundant power supply
Dimensions ( W x D x H ): 19" x 25.5" x 7.0" (483mm x 650mm x 176mm)
Packing:Double boxes
Weight (without hard drive): 18 kg/39.7 lb (NET) 21.2 kg/46.7 lb (GROSS)
Environment Temperature:0/40 C, 32/104 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
