All stock codes associated to this product
CS1308ATU, CS1308-AT-U, KVACS1308, KVA-CS-1308, 4710423775916
Aten CS1308 8-Port PS/2/USB VGA KVM Switch w. OSD
Features
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display
problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the
console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual
on-screen display (OSD) menu
- Two level password security - only authorized users view and control
computers; up to four users and an administrator with a separate profile for
each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the
switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
- Package Contents -1x CS1308 KVM Switch with Rack Mount Kit 1x Console
cable 1x Firmware Upgrade cable 1x Foot Pad set (4 pads) 1x Power Adapter 1x
Mounting Kit 1x User Instructions
Overview
8-Port PS/2-USB VGA KVM Switch
The CS1308 KVM switch allows access and control up to 64 computers from a
single console (keyboard, mouse, and monitor). As many as 8 additional switches
can be cascaded bringing the total number of connected computers to 64 computers
that can be controlled from a single keyboard-monitor-mouse console. The switch
supports both USB and PS/2 connections for the console and computers.

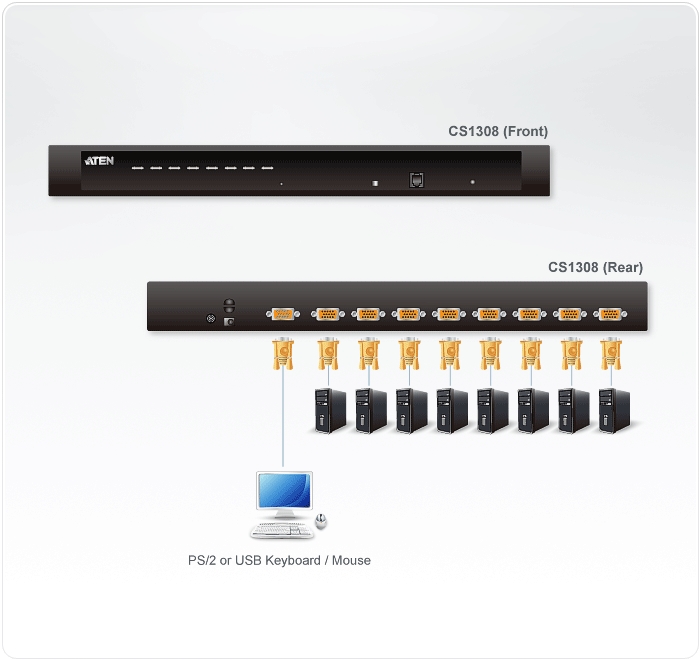

Diagram
Specifications
|
Computer Connections |
|
|
Direct |
8 |
|
Maximum |
64 (via Cascade) |
|
|
|
|
Port Selection |
OSD, Hotkey, Pushbutton |
|
|
|
|
Connectors |
|
|
Console Ports |
1 x SPHD-18 Male (Yellow) |
|
KVM Ports |
8 x SPHD-15 Female (Yellow) |
|
Firmware Upgrade |
1 x RJ-11 Female (Black) |
|
Power |
1 x DC Jack |
|
|
|
|
Switches |
|
|
Ports |
8 x Pushbutton |
|
Firmware Upgrade |
1 x Slide |
|
|
|
|
LEDs |
|
|
Online |
8 (Orange) |
|
Selected |
8 (Green) |
|
Power |
1 (Dark Green) |
|
|
|
|
Emulation |
|
|
Keyboard / Mouse |
PS/2, USB |
|
Video |
2048 x 1536; DDC2B |
|
|
|
|
Scan Interval |
1 – 255 Seconds (Default: 5 secs) |
|
Power Consumption |
DC5.3V:2.34W:19BTU |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0-50˚C |
|
Storage Temperature |
-20-60˚C |
|
Humidity |
0-80% RH, Non-condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
1.89 kg ( 4.16 lb ) |
|
Dimensions (L x W x H) |
43.72 x 16.13 x 4.40 cm |
|
|
(17.21 x 6.35 x 1.73 in.) |
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
