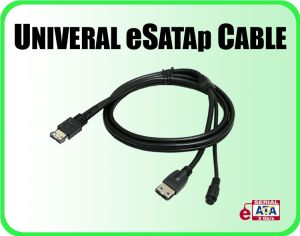

Addonics Universal eSATAp Cable - No Power Tips Included, 5V - 100cm

IMG 1 of 2
Our Price:
$10.00
RRP:
$18.99
You Save:
$8.99
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
150309
(?) Brand:
Addonics Web Site
Manuf No:
AAUESP5100C
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/8/2010
Details Files Images & Video
All stock codes associated to this product
AAUESP5100C
AAUESP5100C

The Addonics Universal eSATAp cable is an eSATA cable with USB power. It is designed to connect any eSATA storage device to the eSATA port on any computer or the new eSATA USB Hybrid Port (EUHP) commonly found on many Notebook computers. When connecting to the EUHP, USB power is supplied to the eSATA device via various size of power tips, thus providing the benefit of high speed eSATA connection and the USB self power to many low power 5V eSATA storage for true portability.To learn more about the eSATA USB Hybrid port, please visit the following EUHP tutorial page.

The computer end of this cable is designed to fit a standard eSATA port as well as the eSATA USB Hybrid Port. The device end of the cable comes with a standard eSATA connector that connects to any eSATA storage and a power output with interchangeable power tip.



The Universal eSATAp cable can also be used as a standard eSATA cable to connect eSATA device. In such situation, the eSATA device will have to be powered from its own power adapter.



Product Features

  • Connect any eSATA storage to eSATA port or the eSATA USB Hybrid Port (EUHP) on a computer
  • Provide USB power from the computer to the eSATA device* when connecting to EUHP
  • 5 popular sizes of interchangeable power tips to fit most eSATA storage

    A
    B
    C
    D
    E
    ID (mm)
    0.7
    1.1
    1.3
    1.7
    2.1
    OD (mm)
    2.35
    3.0
    3.4
    4.0
    5.0
    tip length (mm)
    9.5
    11
    11
    9.5
    12
    color
    POM Yellow
    POM Green
    PBT Orange
    PBT Yellow
    ABS Purple

    the following link shows the power tip mechanical specification detail
  • Power tip C is compatible with Addonics Ruby or Ruby Cipher drive kit, Pocket eSATA/USB optical drive, Micro SATA DigiDrive and eSATA / USB DigiDrive
  • cable length - 100 cm. (~3 ft.)

*Some USB ports limited the power to 500 mA. This may be inadequate to power certain external eSATA hard drive or optical drive

AAUESP5100C


Universal eSATAp Cable (no power tip included)

Package content: Universal eSATAp Cable




Specifications

  • eSATAp connector for host side
  • eSATA connector + power connector with interchangeable power tips for device side
  • Maximum deliverable power - 1A @ 5V
  • Cable length: 100 cm. (~ 3 ft.)
  • Weight:
  • RoHS Compliant
  • 1 year warranty


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
